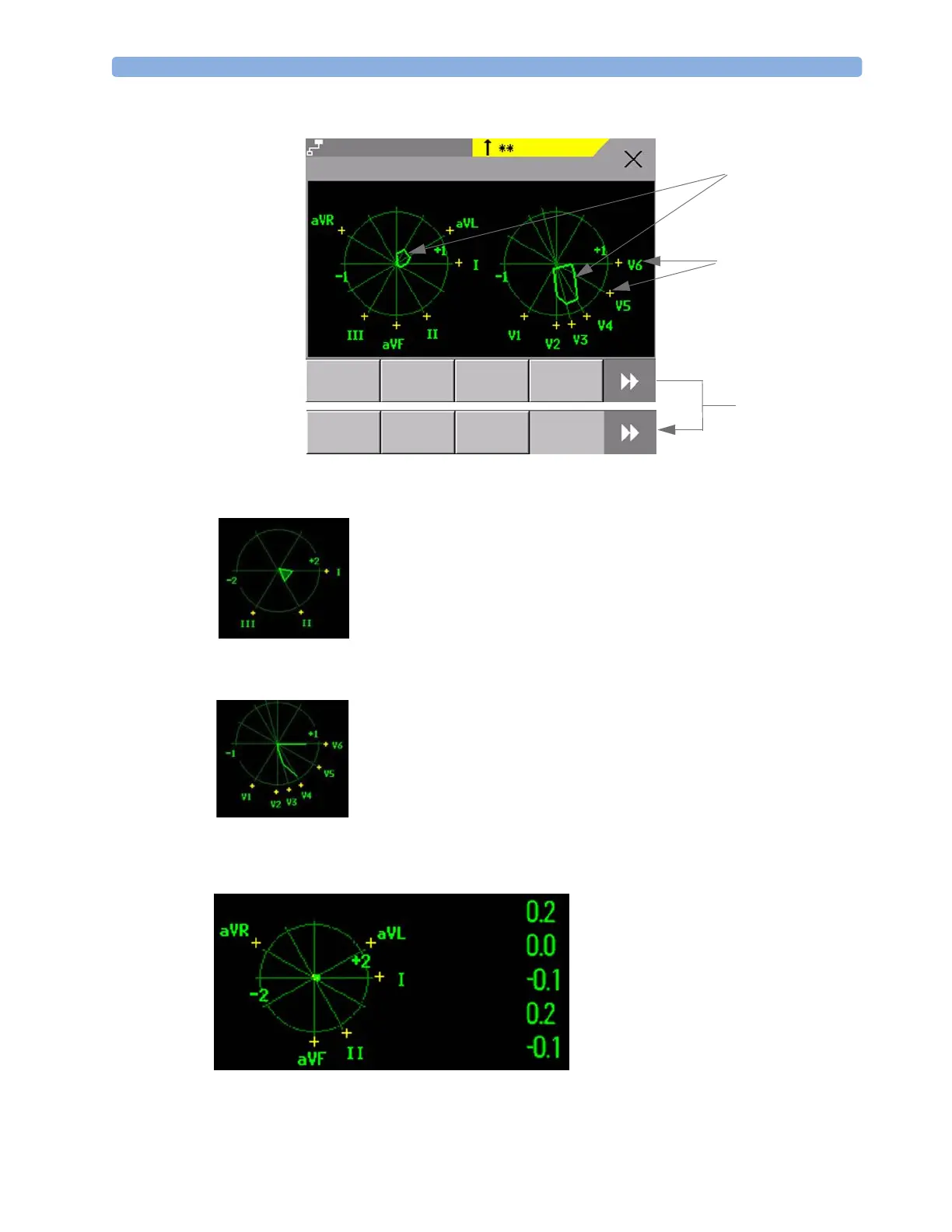

Viewing ST Maps 7ECG, Arrhythmia, ST and QT Monitoring
127
If an ST lead is switched off, its axis is not shown in the map.
If a lead is in INOP (the value is being measured but is invalid or unavailable because, for example, the
corresponding ECG electrode is unplugged), the area formed by the remaining ST leads is left open.
If there is insufficient information (for example, there are less than three chest leads) for a second ST map to
be displayed, the currently available ST values are displayed in place of the second ST map.
ST label and polarity
of corresponding lead
ST map
Trend
View
Print
Size
Up
Size
Down
Show
Baseline
Scroll to view
more pop-up keys
ST Map (Current)
Select
Interval
ST-II HIGH
Adult
SBed10
Limb Leads
Chest Leads
Show
Values
ST-I
ST-II
ST-aVR
ST-aVL
ST-aVF
Limb Leads
To Next Page
