Mounting the Monitor 1Installation
3
Mounting the Monitor
The monitor can be rested on a flat, level surface, hung on the bed rail, mounted on a wall or on a
rollstand, or on the left side of the Flexible Module Rack (FMS). See the Service Guide for details.
Mounting the External Power Supply (M8023A)
The external power supply (M8023A) can be rested on its rubber feet on a flat, level surface, or
mounted as described in the Service Guide.

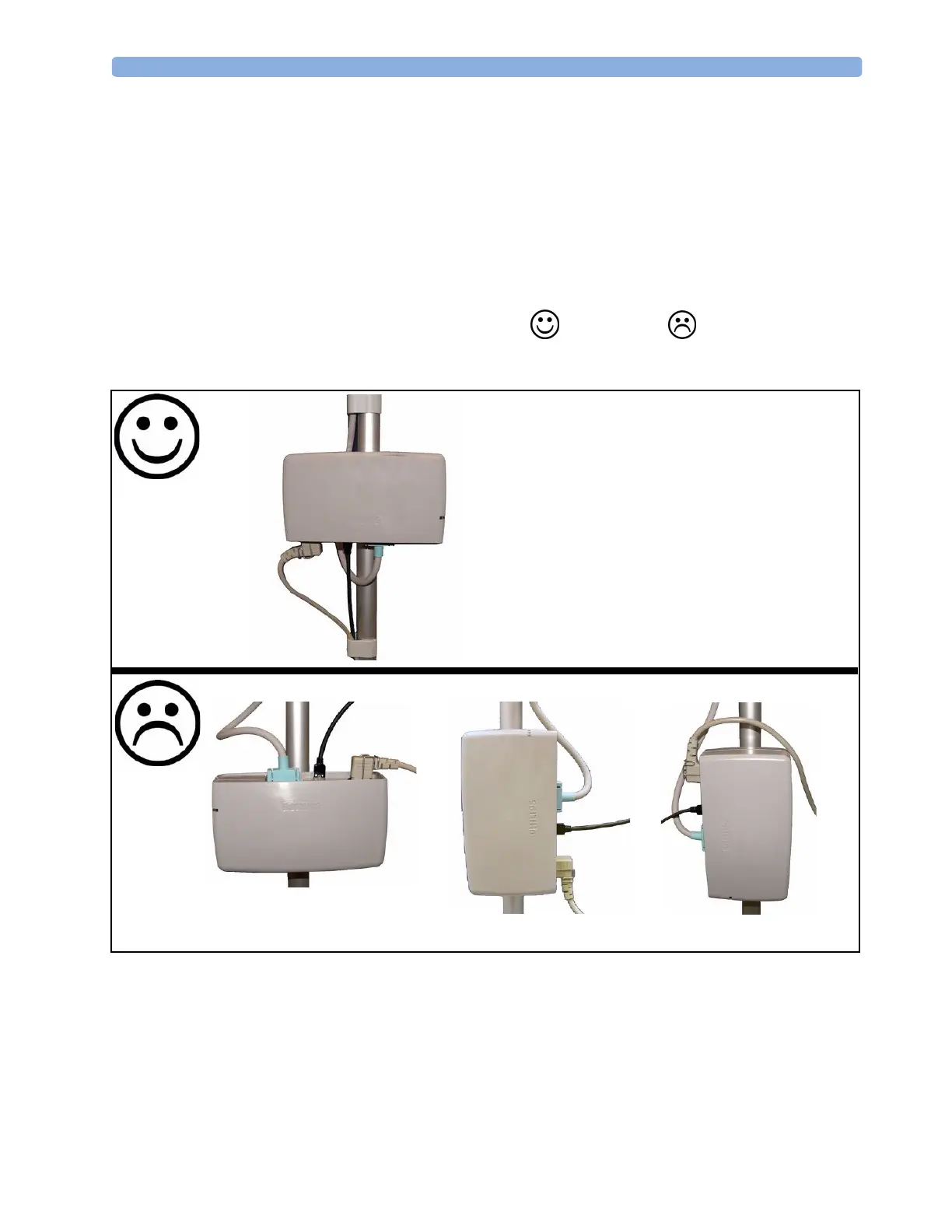

The following pictures show examples of correct ( ) and incorrect ( ) ways to mount the
power supply.
Connecting the Monitor to AC Mains
The monitor is an electrical Class II device in which the protection against electric shock does not rely
on basic insulation and a protective earth conductor but on double and/or reinforced insulation.
