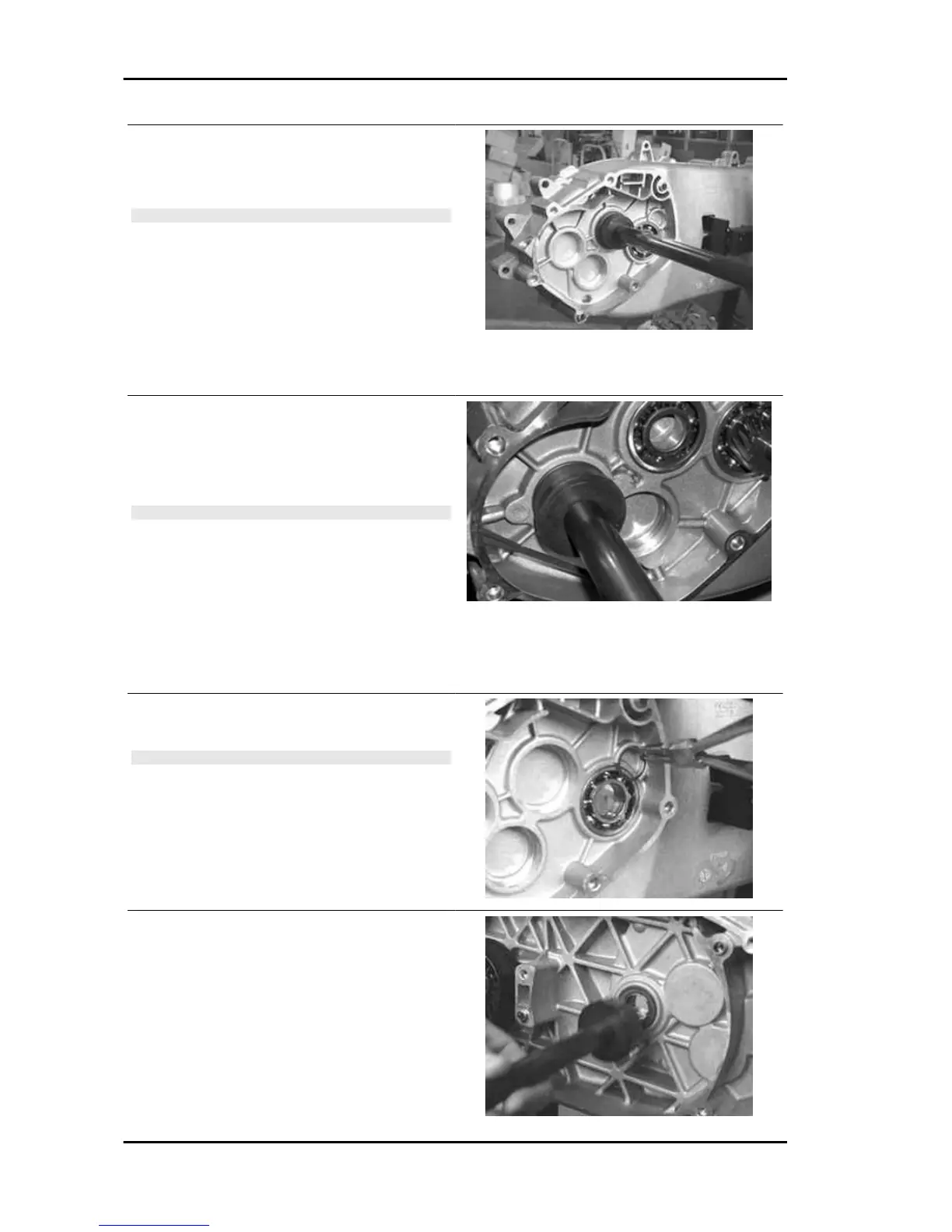

- Heat the intermediate gear bearing seat.
- Insert the intermediate shaft bearing using the
special tool.
N.B.
PLACE IT WITH THE BALLS FACING THE HUB
(THIS APPLIES TO BEARINGS WITH PLASTIC
CAGE).
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020363Y 20 mm guide
- Heat the gear shaft bearing seat on the crank-
case.
- Insert the gear shaft bearing in the upper crank-
case seat using the special tool.
N.B.
PLACE IT WITH THE BALLS FACING THE HUB
(THIS APPLIES TO BEARINGS WITH PLASTIC
CAGE).
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020412Y 15 mm guide
- Place the safety lock seeger ring of the driven
pulley shaft bearing.
N.B.
PLACE IT IN THE POSITION SHOWN IN THE
FIGURE.
- Insert the pulley shaft oil guard on the transmis-
sion side.
