PIAGGIO MP3 400 i.e. - Level Indicators and Enable Signals Section

36. Rear right light
B. Stop light bulb

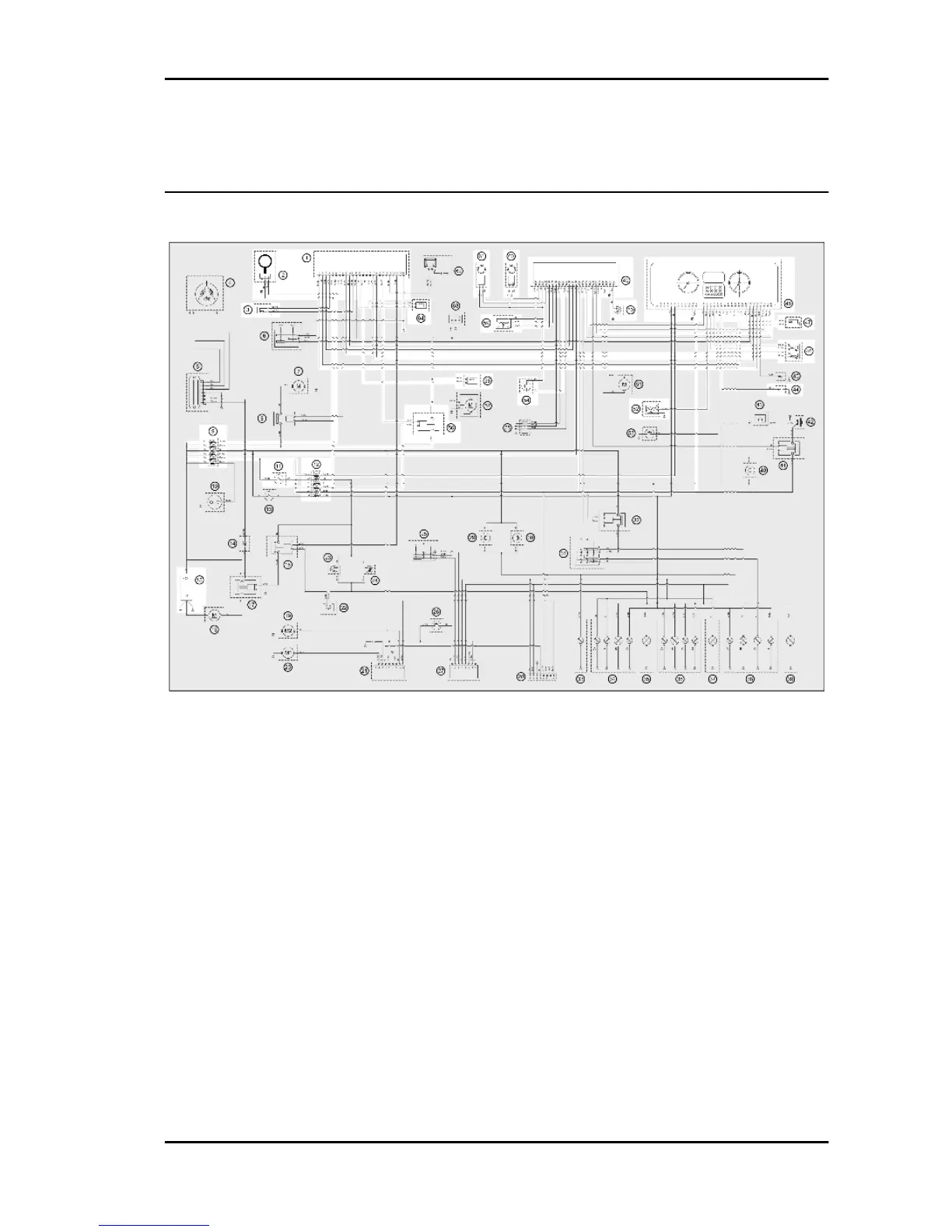

Level indicators and enable signals section
KEY
1. Injection ECU
2. Immobilizer aerial
3. Lambda probe
9. Main fuses
11. Key switch contacts
12. Secondary fuses
15. Battery
44. Oil pressure sensor
46. Coolant temperature sensor
47. External temperature sensor
48. Instrument panel
49. Parking electronic control unit
50. Brake calliper sensor
52. Fuel level transmitter
54. Rider presence sensor
MP3 400 i.e. Electrical system
ELE SYS - 13
