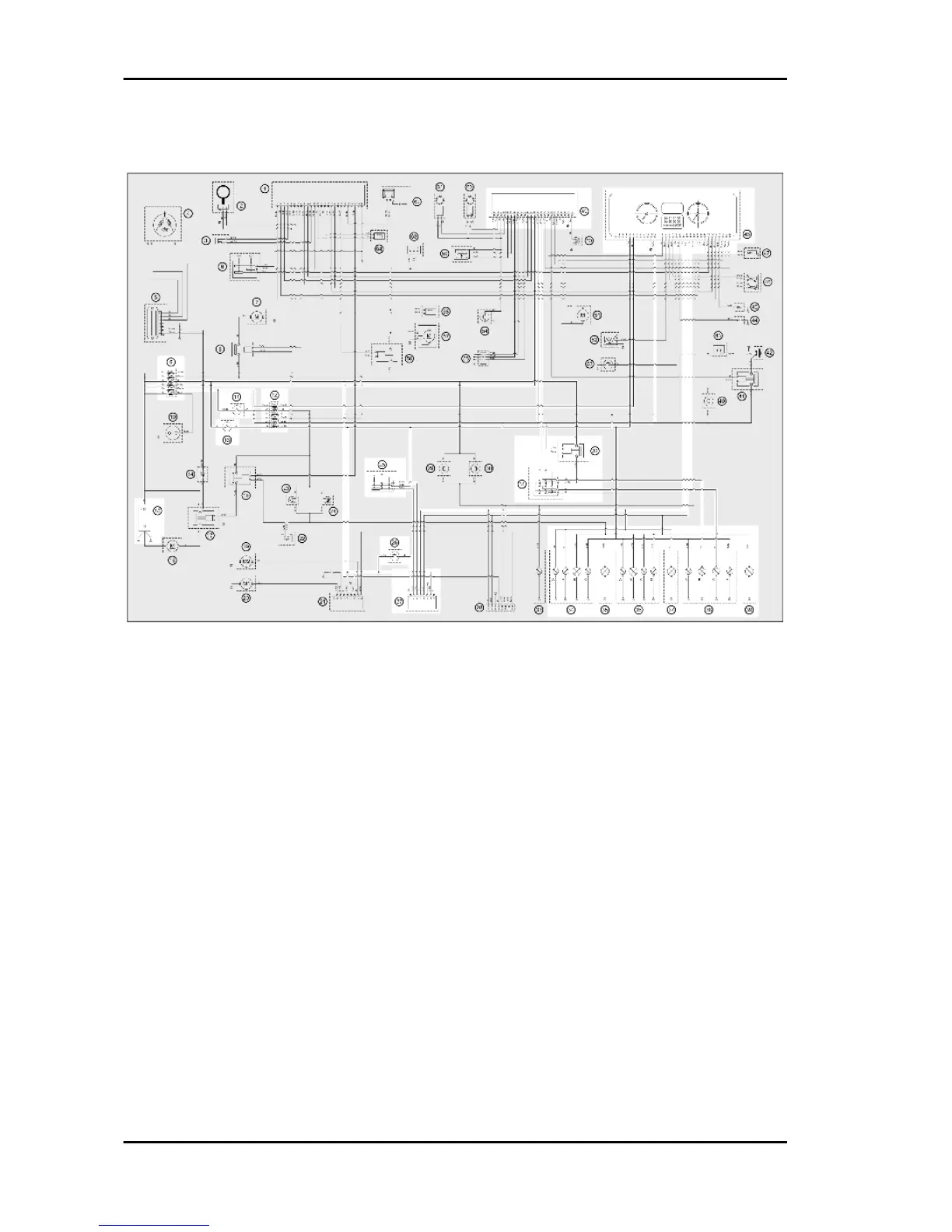

PIAGGIO MP3 400 i.e. - Lights and Turn Indicators

Lights and turn indicators
KEY
9. Main fuses
11. Key switch contacts
12. Secondary fuses
13. Key switch contacts
15. Battery
25. Turn indicator switch
26. Hazard button
27. Hazard and turn indicator control device
31. Light switch
32. Headlight remote control
34. Rear left light
A. Rear left turn indicator bulbs
C. Tail light bulb
35. License plate lamp
36. Rear right light
A. Tail light bulb
C. Rear right turn indicator bulbs
Electrical system MP3 400 i.e.
ELE SYS - 16
