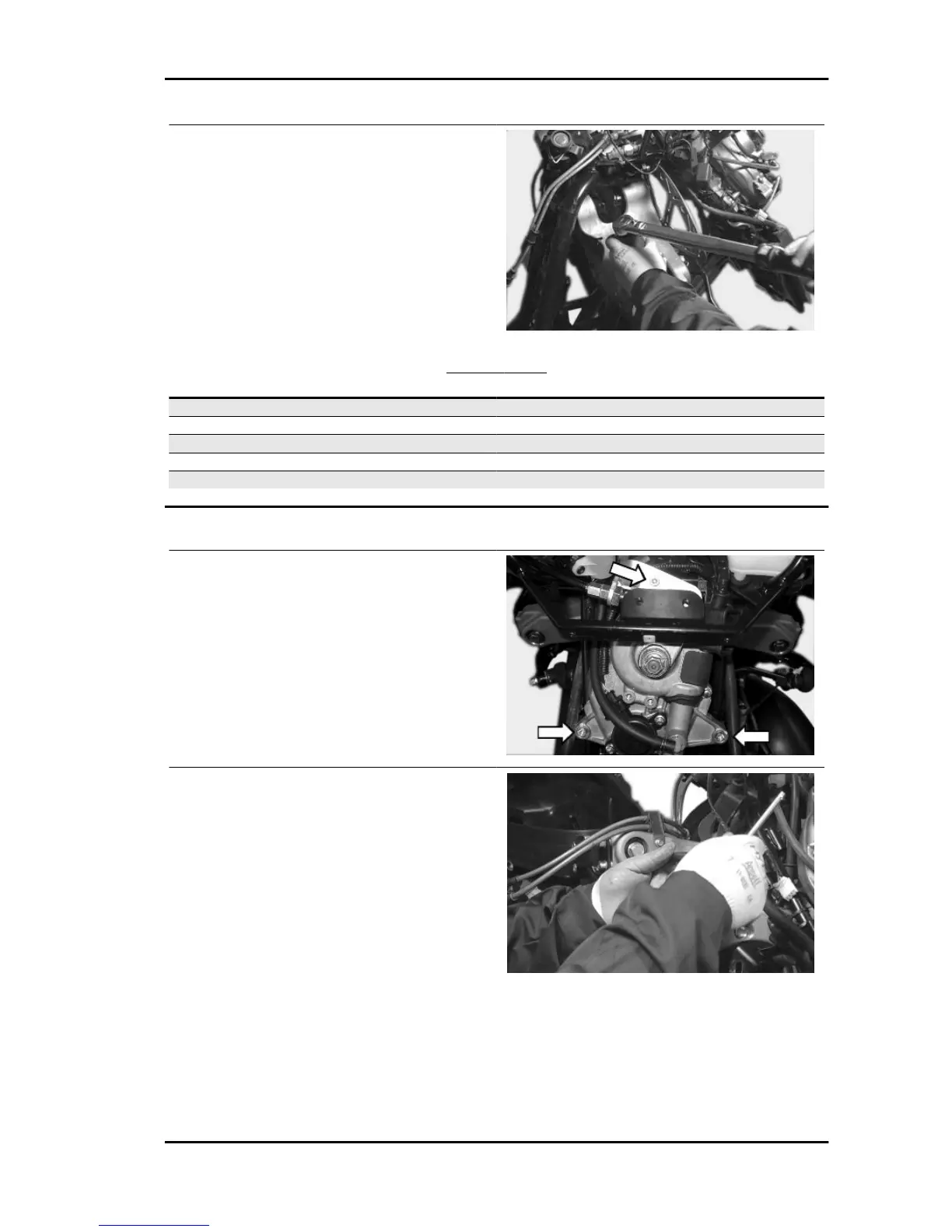

For refitting, follow the operations for removal but
in reverse order, observing the prescribed torques
and greasing the bearings and their seats.
STEERING TUBES
Name Torque in Nm
Side headstock upper ring nut 20 - 24
Side headstock lower ring nut 12 ÷ 15
Screw fixing sliding stem to shock absorber 45 ÷ 50
Clamp for sliding stem locking device 6.5 ÷ 10.5
Fixing nuts for constant-velocity universal joints 18 ÷ 20
Parallelogram device
Remove the steering tubes.
To facilitate removal operations of the brake disc
sector, loosen the 3 fixing screws in the hydraulic
electro-actuator indicated in the photograph.
Remove the hydraulic pipe retainers from the par-
allelogram.
MP3 400 i.e. Suspensions
SUSP - 11
