PIAGGIO MP3 400 i.e. - Battery Recharge and Starting

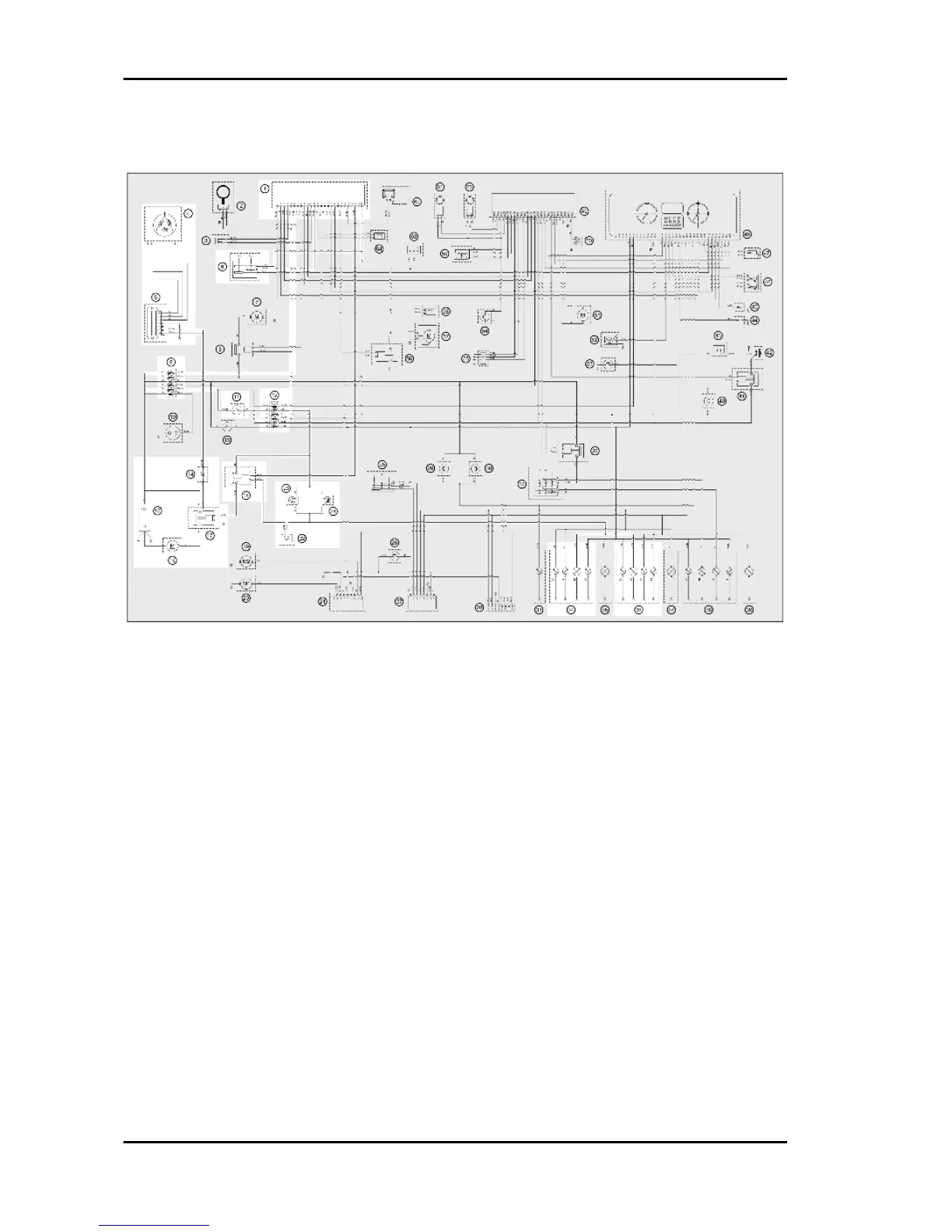

Battery recharge and starting
KEY
1. Injection ECU
4. Magneto flywheel
5. Voltage regulator
6. Engine stop switch
9. Main fuses
11. Key switch contacts
12. Secondary fuses
14. Fuse
15. Battery
16. Starter motor
17. Start-up remote control switch
18. Start-up enabling remote control
22. Starter button
23. Stop button on rear brake
24. Stop button on front brake
34. Rear left light
B. Stop light bulb
Electrical system MP3 400 i.e.
ELE SYS - 12
