Soap-based lithium grease with NLGI 3; ISO-L-
XBCHA3, DIN K3K-20

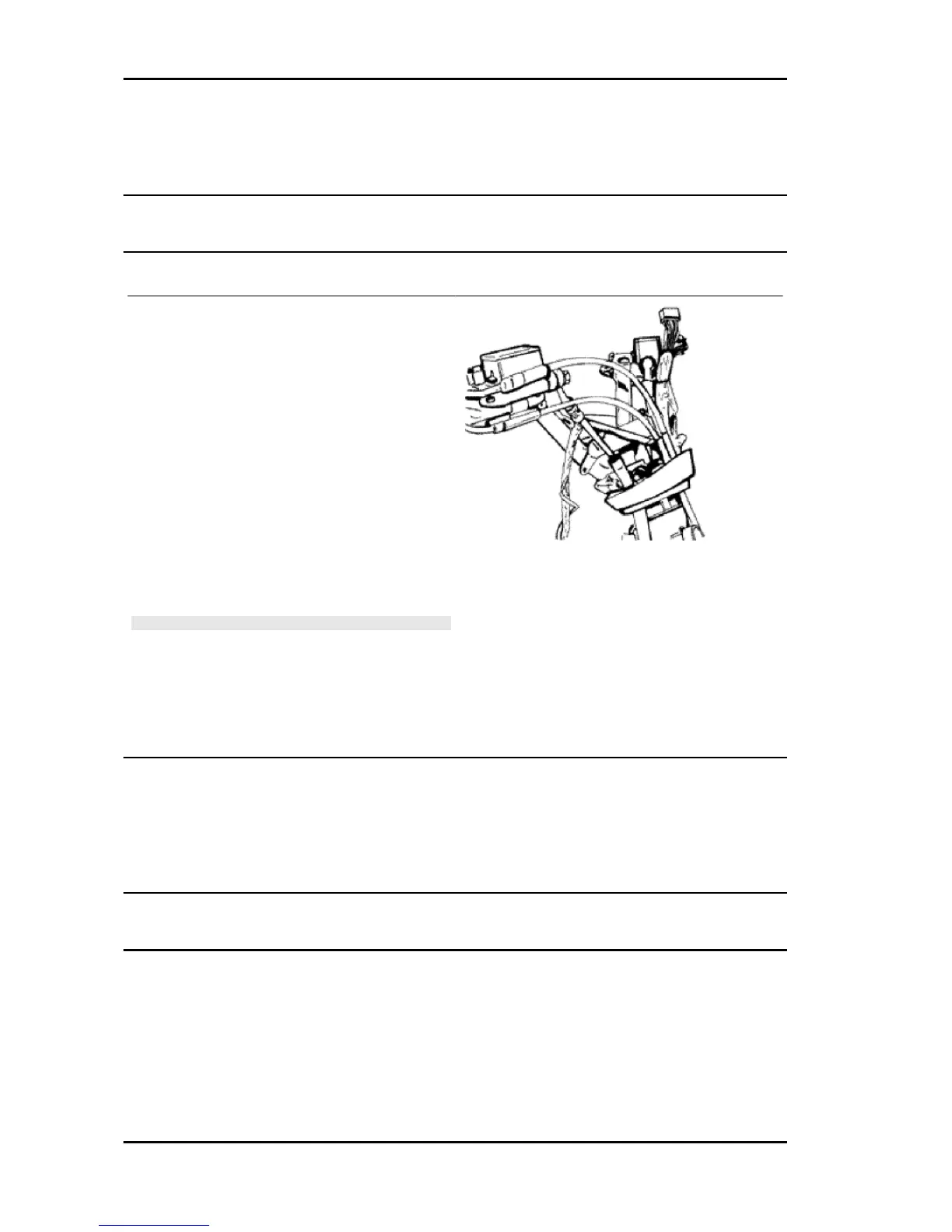

Handlebar
Removal
- Remove the 2 handlebar covers working as ex-
plained in the Bodywork Chapter.
- Remove the handlebar wiring retaining straps
and disconnect the electric connectors from the
brake levers.
- Unscrew the fittings, then remove the front and
rear brake pump piping.
- Remove the flexible transmission of the throttle
grip and remove the throttle.
- Loosen the clamp fixing the handlebar to the
steering tube and remove the handlebar by pulling
it upwards; then remove the lower plastic cover.
N.B.
IF THE HANDLEBAR IS BEING REMOVED TO
REMOVE THE STEERING, IT IS ONLY NECES-
SARY TO TILT THE HANDLEBAR FORWARD
ONTO THE FRONT PART OF THE VEHICLE
WITHOUT REMOVING THE PARTS FITTED SO
AS TO AVOID DAMAGING THE SHAFTS.
Refitting
Carry out the above operations by working in the reverse order from those of the removal.
Locking torques (N*m)
Handlebar fixing screw 50 ÷ 55
The tilt mechanism
Suspensions MP3 400 i.e.
SUSP - 4
