This section describes the operations to be carried out on the engine and the tools to be used.
Automatic transmission
Transmission cover

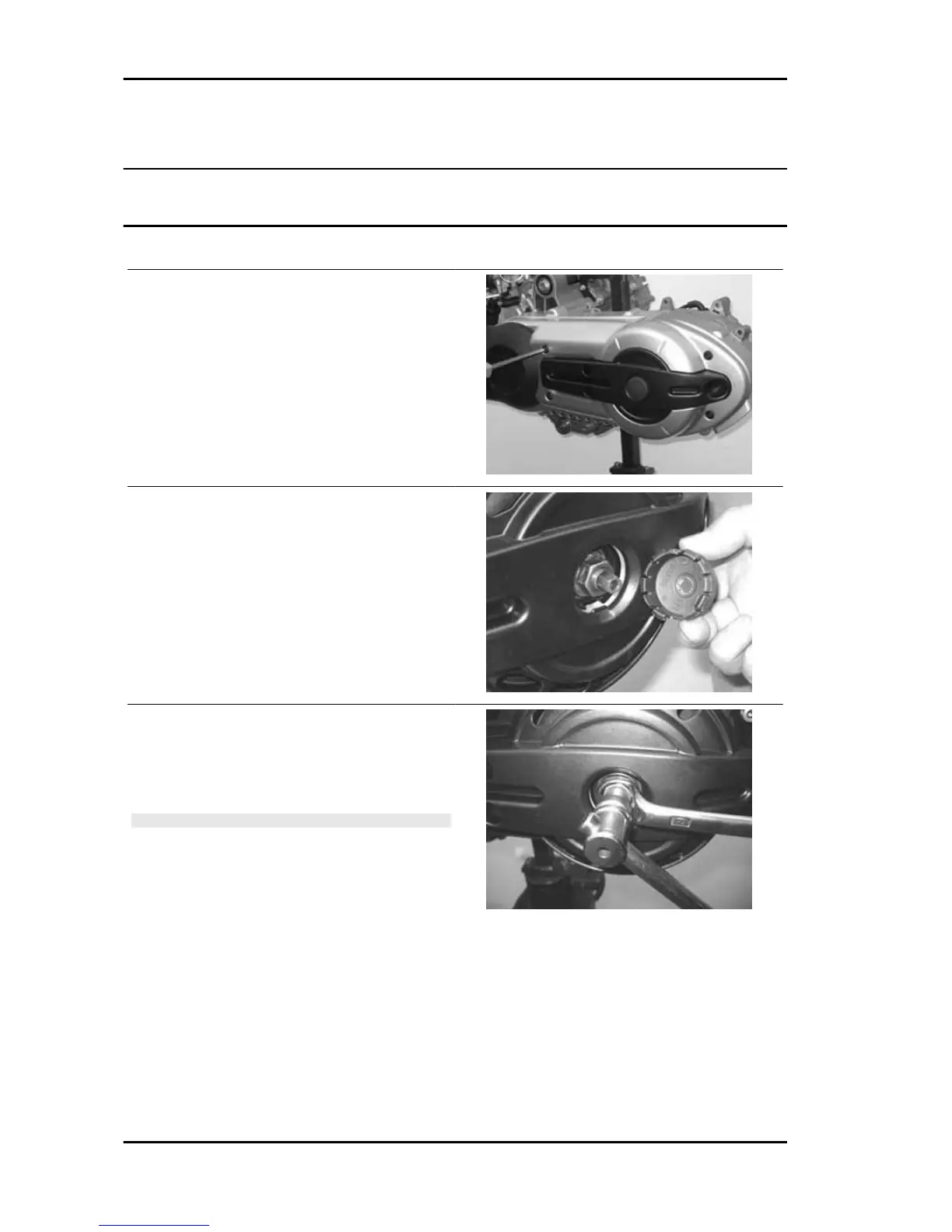

- Loosen the 4 fastening screws
- Extract the outside plastic transmission cover.
- Using a screwdriver, remove the driven pulley
axle cover near the bottom of the cap.
- Loosen the driven pulley shaft fastening nut using
a misaligned wrench and prevent the pulley shaft
rotation using a machine hexagon bush.
- Remove the nut and the two washers.
N.B.
DUE TO THE HIGH TIGHTENING TORQUE, US-
ING DIFFERENT WRENCHES - SUCH AS A
CONVENTIONAL POLYGONAL BUSH - MAY
DAMAGE THE HEXAGON OBTAINED ON THE
SHAFT OR BREAK THE BUSH ITSELF.
