PIAGGIO MP3 400 i.e. - Electrical Data; Injection Loads

INJECTION LOADS
Specification Desc./Quantity
1 Battery 12V - 12 Ah
2 Fuse 15A
3 Fuse 20A
4 Key switch contacts
5 Fuse 7.5 A
6 Injection load remote control
7 Fuel pump
8 HV coil
9 Fuel injector
10 Lambda sensor
11 Electric fan starter
When switched to «ON», the fuel pump starts to rotate for 2 seconds and then stops. When the engine
starts up, in the presence of phase rpm signal the pump is continuously supplied.
ELECTRICAL DATA
•
Pump winding resistance ~ 1.8 Ohm
•
Input current during regular functioning 2.8 A

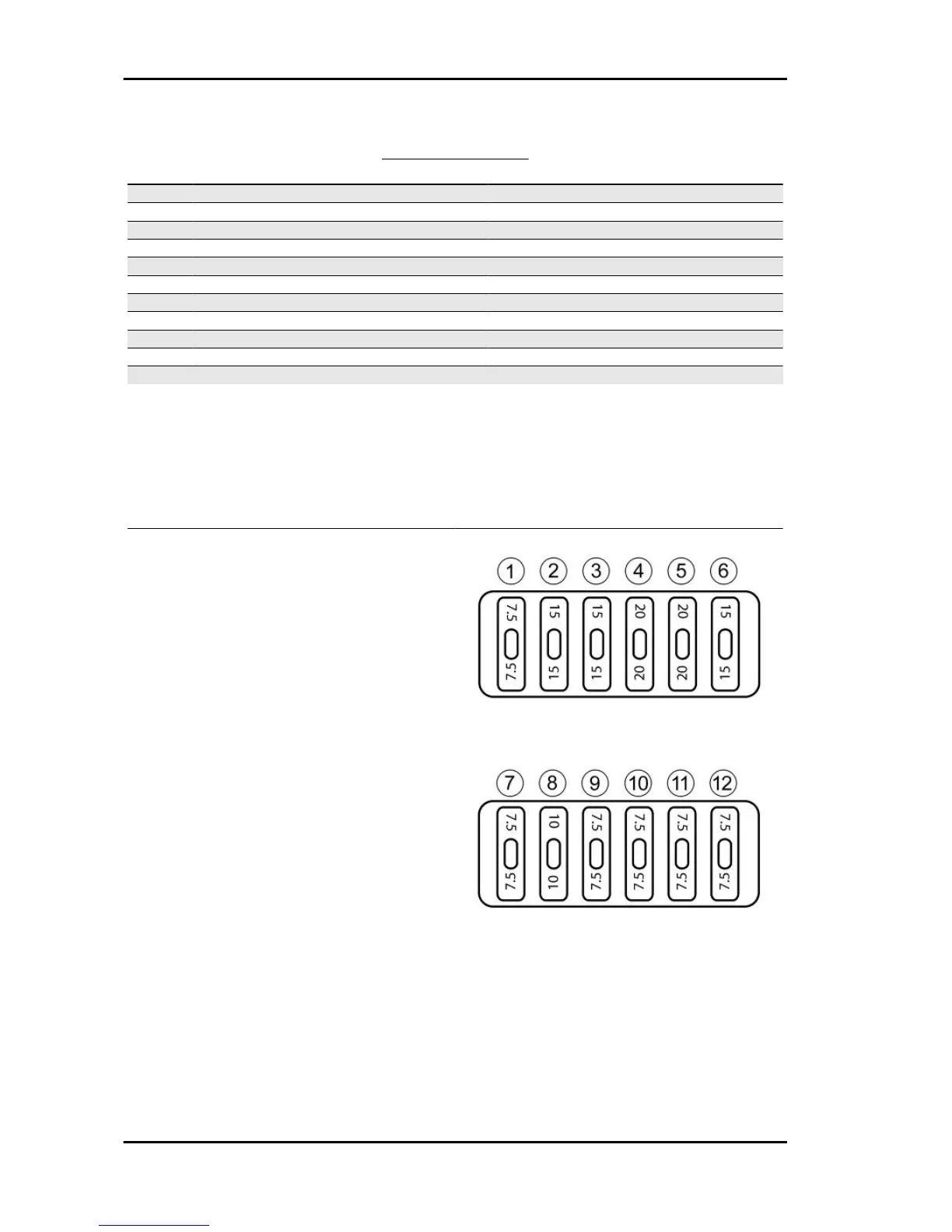

Check that the injection load 15A fuse No. 2 works
properly.
Check that the live control unit power supply 7.5A
fuse No. 10 works properly.
Injection MP3 400 i.e.
INJEC - 16
