PIAGGIO MP3 400 i.e. - Transmission Cover

Name Torque in Nm
Outside transmission cover screws 7 ÷ 9
Flywheel cover screws 11 - 13
FLYWHEEL COVER
Name Torque in Nm
Chain guide sliding block retain plate fastening
screws
3 ÷ 4
Flywheel fixing nut 115 - 125
Stator retainers 8 - 10
Blow-by recovery duct fixing screws 3 - 4
Screw fixing freewheel to flywheel 13 ÷ 15
Stator cable harness guide bracket screws 3 - 4
Supporting screws with bulkhead 0.3 - 0.4
Minimum oil pressure sensor 12 ÷ 14
Water pump impeller 4 ÷ 5
CRANKCASE AND CRANKSHAFT
Name Torque in Nm
Countershaft fixing nut 25 - 29
Engine oil filter 12 - 16
Engine oil drainage plug 24 ÷ 30
Engine-crankcase coupling screws 11 ÷ 13
Oil pump screws 5 - 6
Gear mounting on crankshaft screws 10 -12
Bulkhead screws for oil pump housing cover 8 - 10
COOLING
Name Torque in Nm
Water pump rotor cover 3 ÷ 4
Thermostat cover screws 3 ÷ 4
Bleed screw: 3
Overhaul data
Assembly clearances

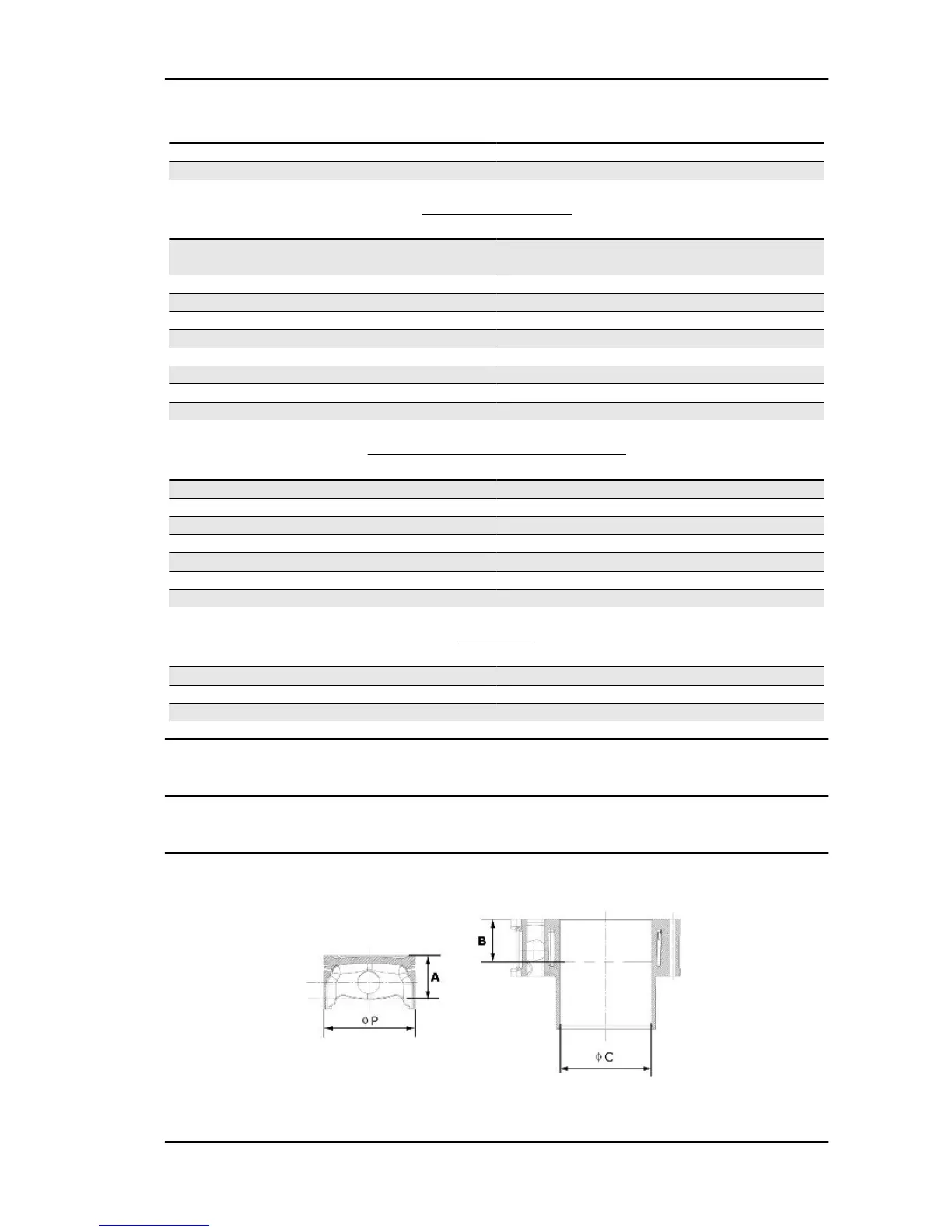

Cylinder - piston assy.
MP3 400 i.e. Characteristics
CHAR - 9
