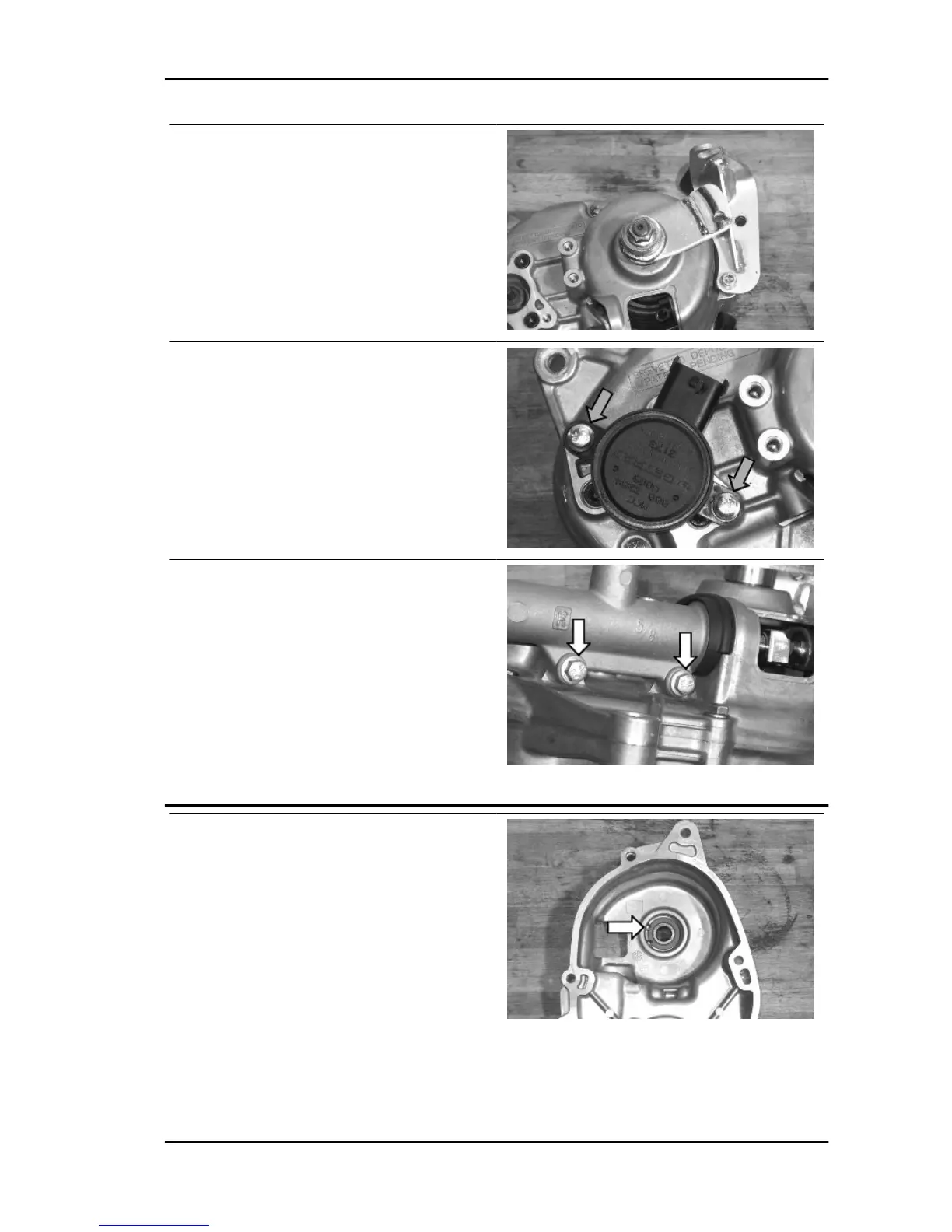

Place the moulded washer of the flexible trans-
mission control lever shaft and the tongue.
Refit the flexible transmission control lever as
shown in the figure.
Refit the potentiometer (not forcing in the D-type
connector ensures a sole position) with the con-
nector directed to the opposite side of the hydraulic
pump.
Refit the hydraulic pump on the geared motor body
and tighten the screws to the prescribed torque.
Fit but not tighten the pump stem coupling screw
and refit the plastic protection cap.
The synchronisation procedure should be com-
plete when the installation is finished.
Locking torques (N*m)
Geared motor hydraulic pump tightening
screws 11 ÷ 13
Remove the retaining seeger ring of the bearing of
the flexible transmission lever control shaft bear-
ing.
Remove the bearing with the specific tool.
Specific tooling
020376Y Adaptor handle
020441Y 26 x 28 mm adaptor
020362Y 12 mm guide
MP3 400 i.e. Suspensions
SUSP - 23
