L182.5 ± 0.3 mm
Length of the swinging arm tube on the frame
side:
L 222.5 ± 0.2 mm

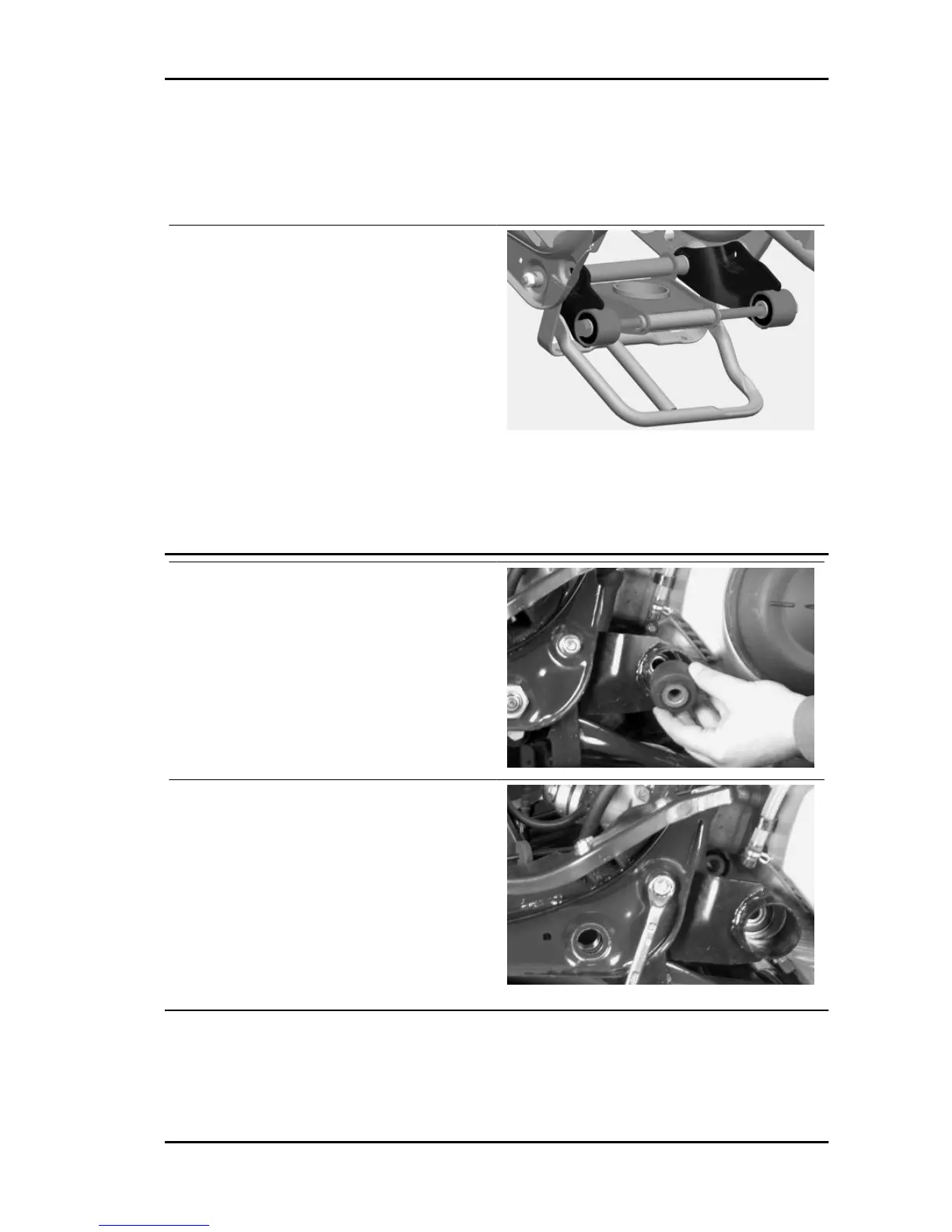

- Lubricate roller casings and the plastic bushings
with grease
- Insert the spacers
- Assembly both arms with the appropriate bolt
- Adjust the bolt as shown in the photograph
- Place the swinging arm, frame side, with the pro-
truding part facing the transmission side
Recommended products
AGIP GREASE PV2 Grease for the steering
bearings, pin seats and swinging arm
Soap-based lithium and zinc oxide grease con-
taining NLGI 2; ISO-L-XBCIB2 of the swinging arm
- Check that the silent block is not broken. Other-
wise, replace it.
- Unscrew the retainer to the frame in order to re-
move the silent block supporting clamp.
MP3 400 i.e. Suspensions
SUSP - 51
