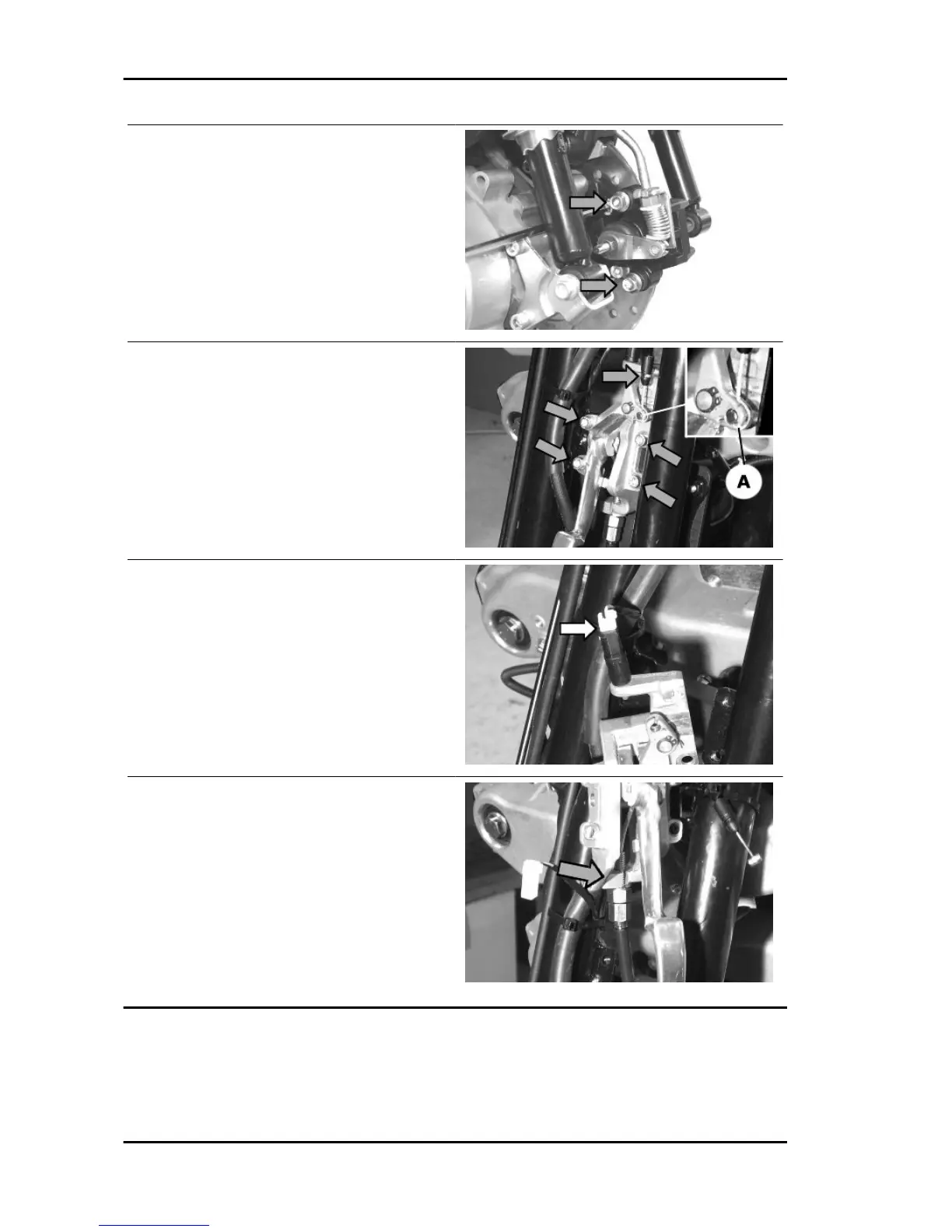

Remove the two fixing screws of the mechanic
calliper and remove the calliper. To check calliper
components, refer to the chapter on the tilt locking
calliper.
When refitting, secure to the specified torque.
Locking torques (N*m)
Screw tightening calliper to the support 20 ÷ 25
After removing the shield back plate, remove the
engaging cable for the safety mechanism remov-
ing it from its fitting.
Remove the 4 screws shown in the figure.
When refitting, pay attention to insert the metallic
cable peg in the fitting marked «A» as indicated in
the enlarged photograph.
Remove the electric connection from the engaged
parking brake warning light switch.
Remove the parking brake cable from the lever by
operating the set screw indicated in the photo-
graph.
Braking system MP3 400 i.e.
BRAK SYS - 14
