CAUTION
THIS OPERATION MUST BE CARRIED OUT WHEN THE ENGINE IS COLD.

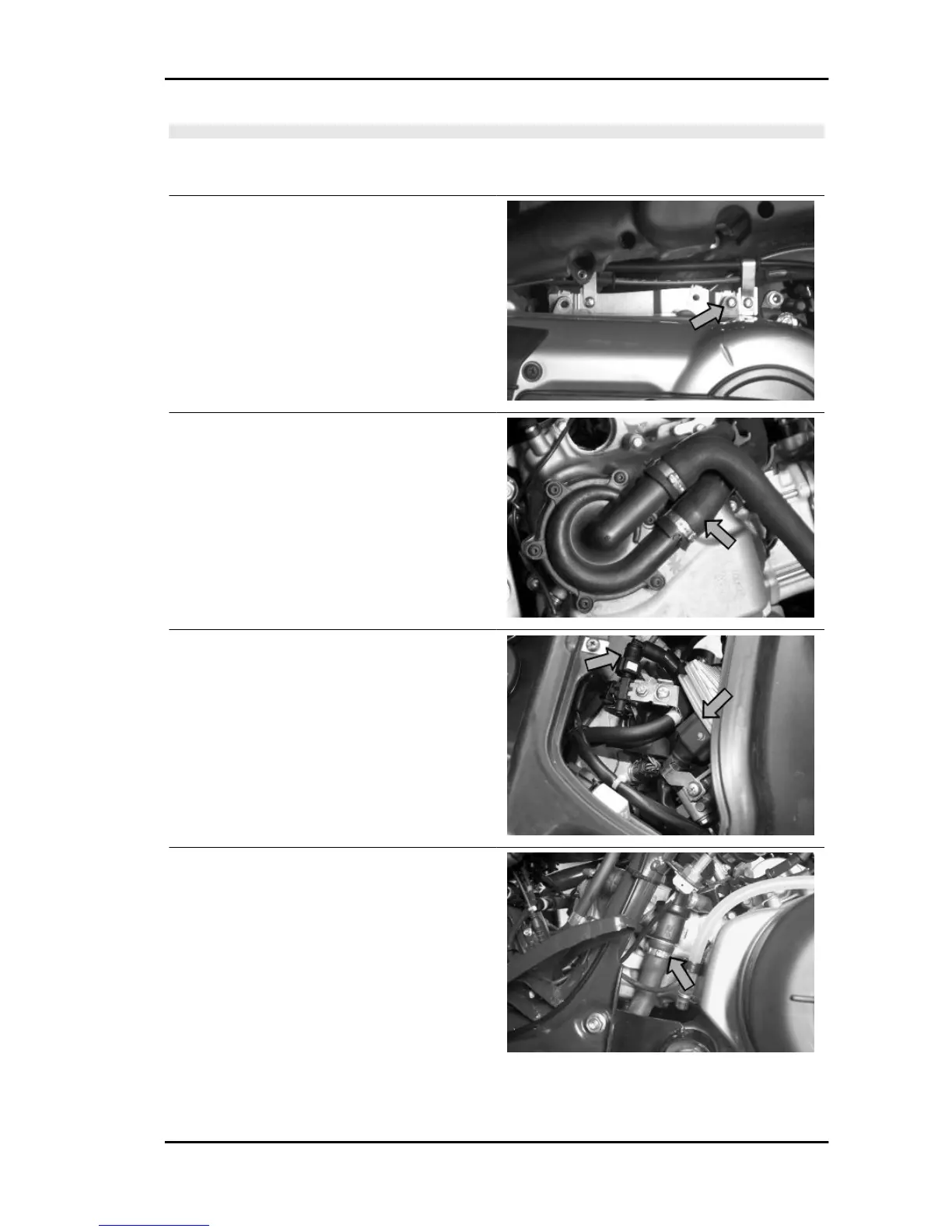

- Remove the rear wheel.
- Remove the bracket supporting the rear brake
callipers and the callipers as well.
- After removing the air filter from the crankcase,
undo the screws fixing the bracket that secures the
rear brake pipes.
- Remove the pipe feeding coolant into the pump
as shown in the photograph and then empty the
system.
- Remove the engine coolant outlet pipe as indi-
cated.
- Disconnect the fuel delivery pipe from the injector
by removing the screw locking the retainer clamp.
- Disconnect the injector wiring and the throttle
body control unit wiring.
- Remove the coolant outlet pipe from the motor
as indicated.
MP3 400 i.e. Engine from vehicle
ENG VE - 3
