4.5.3 LACP System Status
This Page provides a status overview for all LACP instances. The LACP Status Page display the current LACP aggregation
Groups and LACP Port status. The LACP System Status screen in Figure 4-5-5 appears.

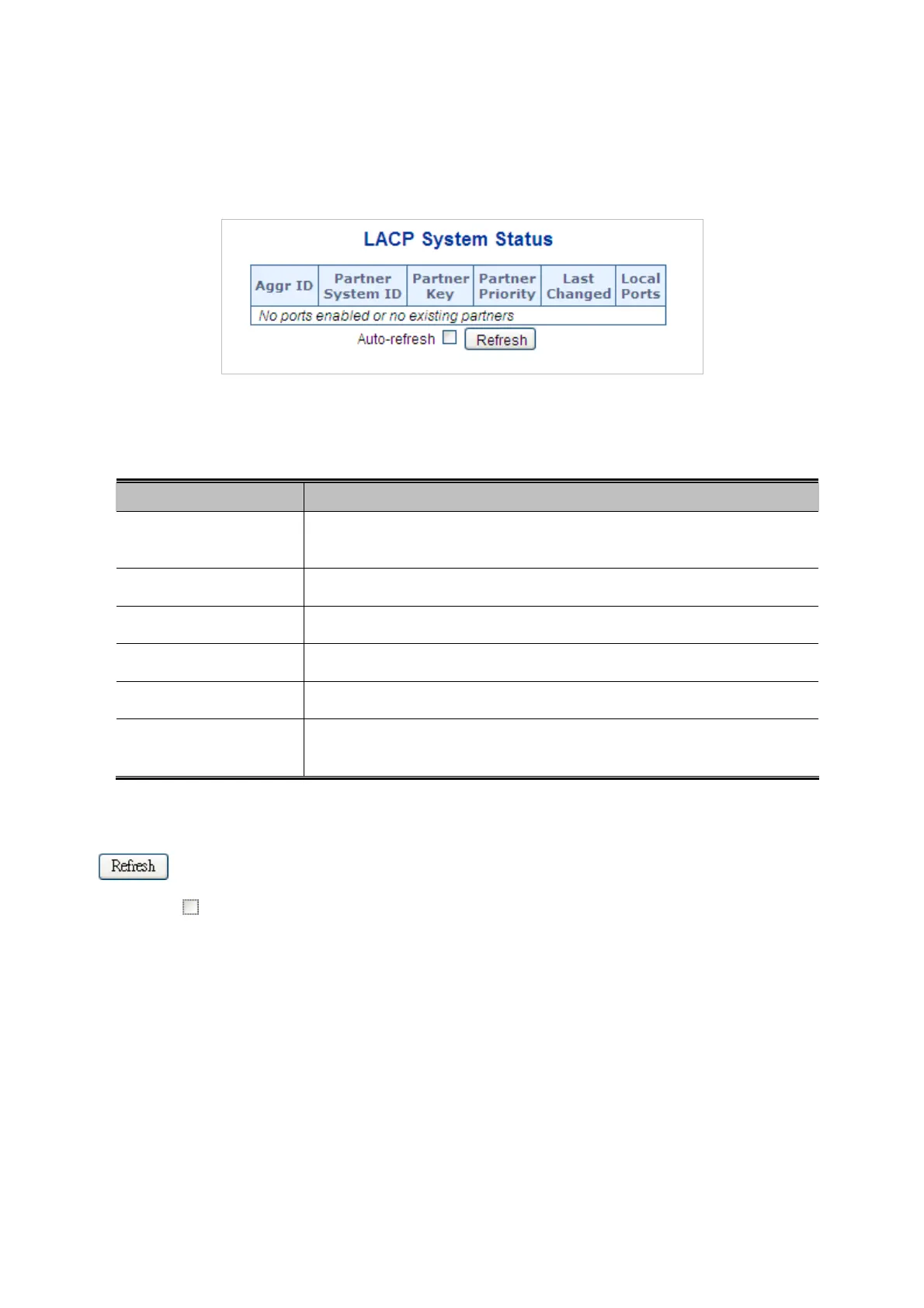

Figure 4-5-5: LACP System Status Page Screenshot
The Page includes the following fields:
Object Description
 Aggr ID
The Aggregation ID associated with this aggregation instance.
For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id'
 Partner System ID
The system ID (MAC address) of the aggregation partner.
 Partner Key
The Key that the partner has assigned to this aggregation ID.
 Partner Priority
The priority of the aggregation partner.
 Last changed
The time since this aggregation changed.
 Local Ports
Shows which ports are a part of this aggregation for this switch/stack.
The format is: "Switch ID:Port".
Buttons
: Click to refresh the Page immediately.
Auto-refresh
: Automatic refresh occurs every 3 seconds.
