User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
■ Classify
DSCP at Ingre
ss side can be translated to any of (0-63) DSCP values.
 Translate
Click to enabl
e Classification at Ingress side.
 Classify
There is follo
wing configurable parameter for Egress side -
■ Remap
 Egress
Select the DSCP
value from select menu to which you want to remap. DSCP
value ranges form 0 to 63.
 Remap DP
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.9.10 DSCP Classification
This Page allows you to map DSCP value to a QoS Class and DPL value. The DSCP Classification screen in Figure 4-9-11
appears.

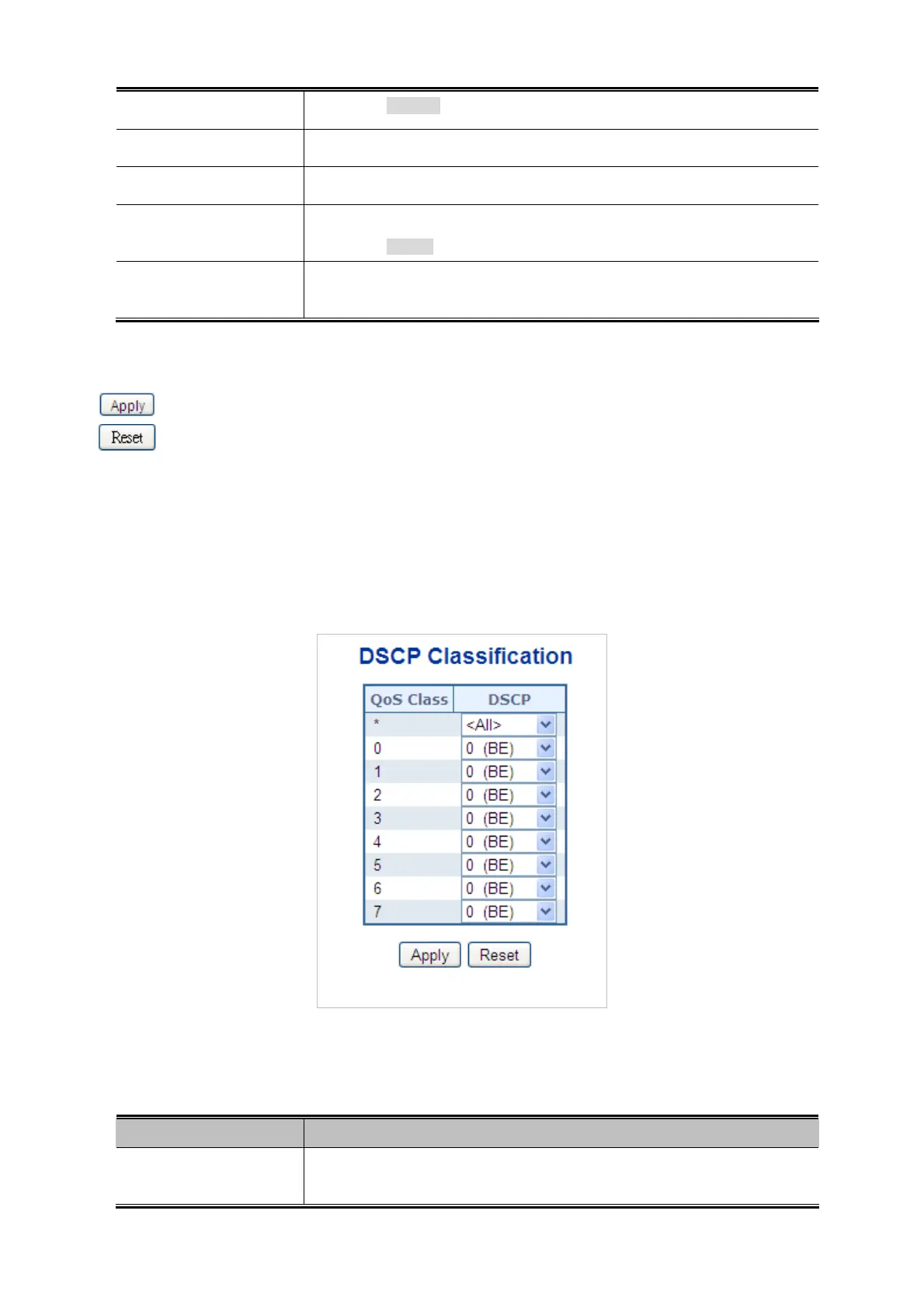

Figure 4-9-11: DSCP Classification Page Screenshot
The Page includes the following fields:
Object Description
 QoS Class
Available QoS Class value ranges from 0 to 7. QoS Class (0-7) can be mapped
to followed parameters.
194
