User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
Actual Drop
Precedence Level.
 DPL
Select DSCP v
alue (0-63) from DSCP menu to map DSCP to corresponding QoS
Class and DPL value
 DSCP
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.9.11 QoS Control List
This Page shows the QoS Control List(QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The
maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list. The QoS Control List screen in Figure 4-9-12 appears.

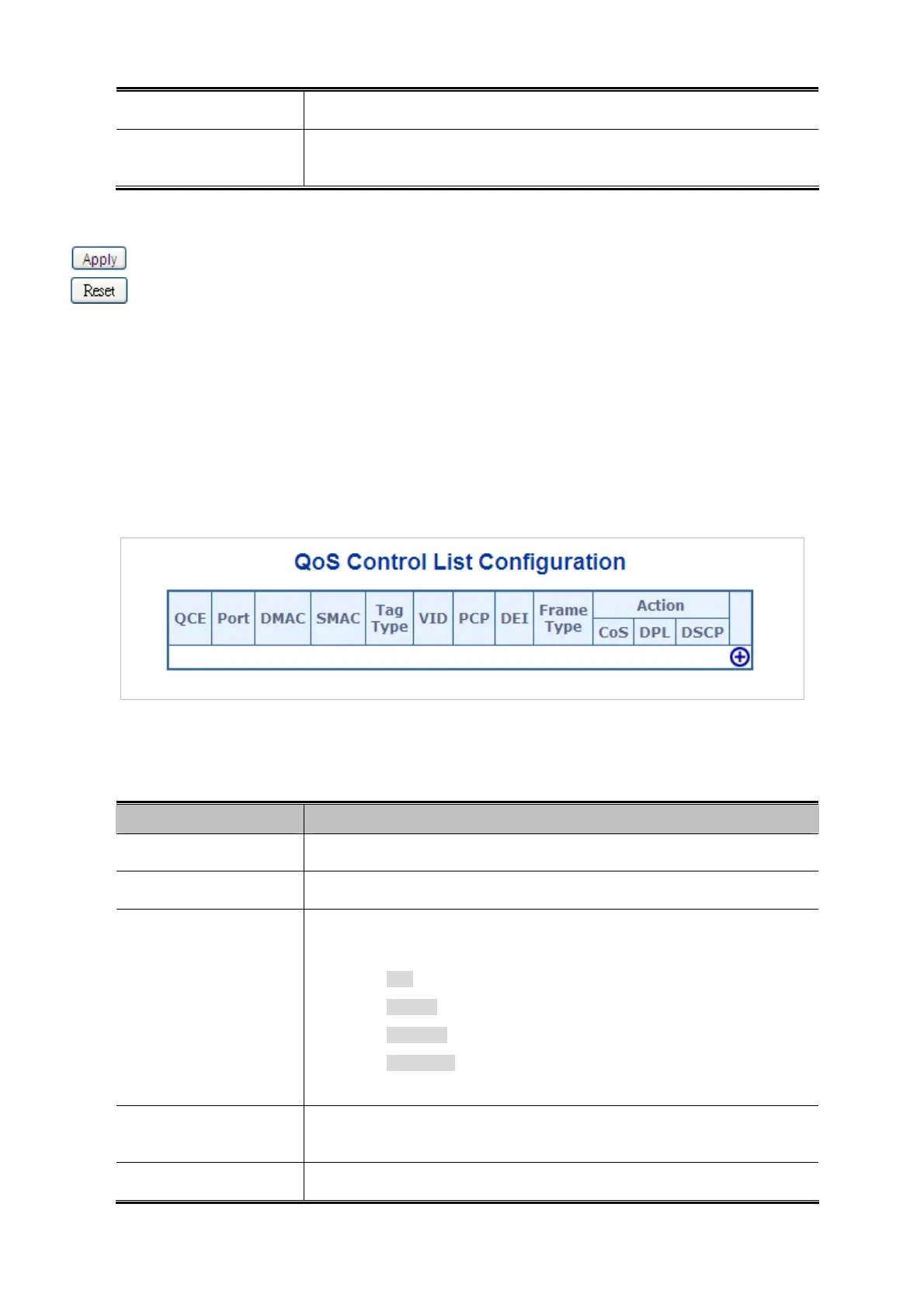

Figure 4-9-12: QoS Control List Configuration Page Screenshot
The Page includes the following fields:
Object Description
Indicates the in
dex of QCE.
 QCE#
Indicates the li
st of ports configured with the QCE.
 Port
Specif
y the type of Destination MAC addresses for incoming frame. Possible
values are:
■ Any: All types of Destination MAC addresses are allowed.
■ Unicast: Only Unicast MAC addresses are allowed.
■ Multicast: Only Multicast MAC addresses are allowed.
■ Broadcast: Only Broadcast MAC addresses are allowedd.
The default value is 'Any'.
 DM
AC
Displa
ys the OUI field of Source MAC address, i.e. first three octet (byte) of MAC
address.
 SMAC
 Tag Type
Indicates tag type. Possible values are:
195
