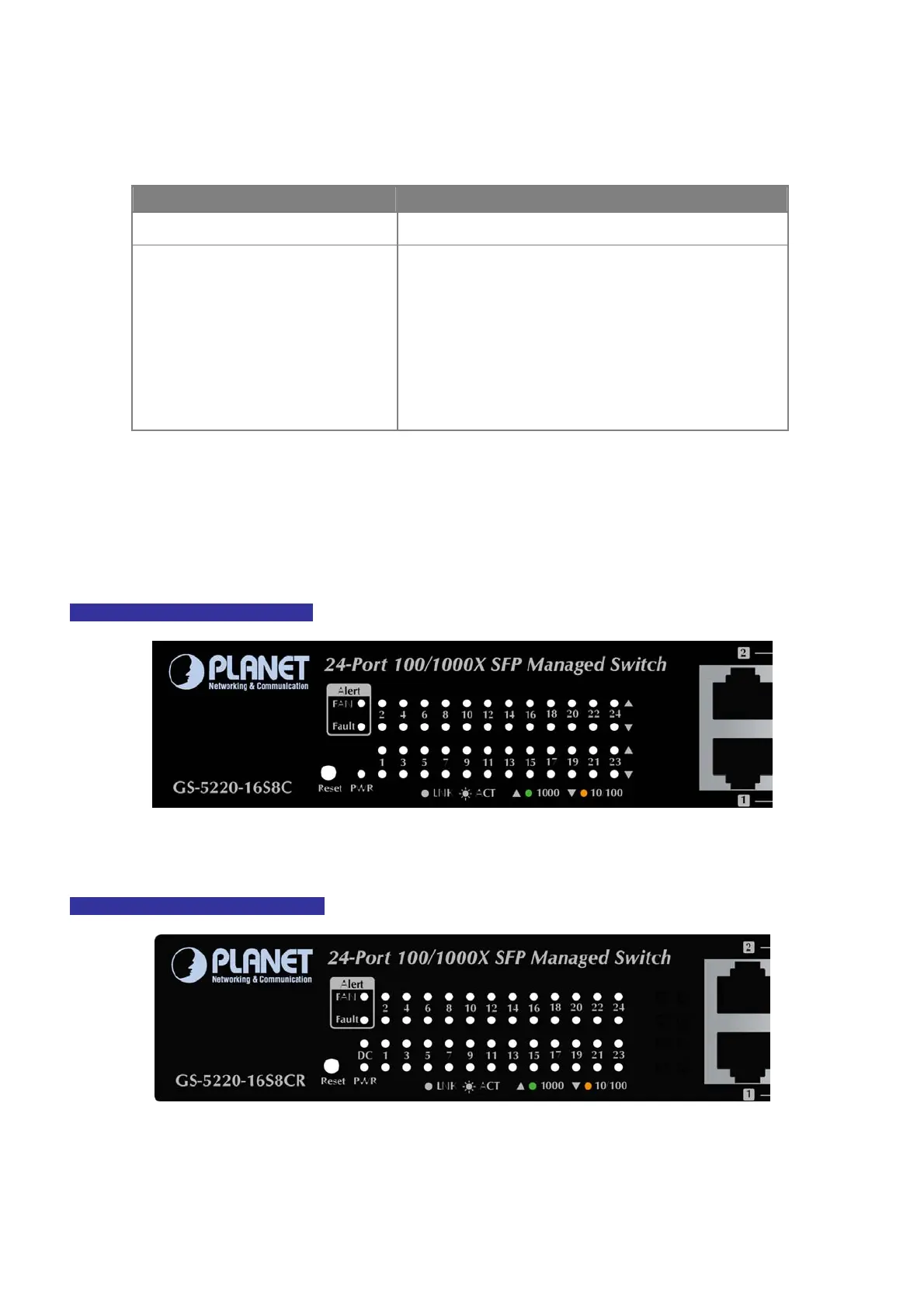

■ Reset button
At the right of the front panel, the reset button is designed for rebooting the Managed Switch without turning off and on the
power. The following is the summary table of reset button functions:
Reset Button Pressed and Released Function
< 5 sec: System Reboot Reboot the Managed Switch.
> 5 sec: Factory Default
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as shown below:
。 Default Username: admin
。 Default Password: admin
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。 Default Gateway: 192.168.0.254
2.1.2 LED Indications
The front panel LEDs indicate instant status of power and system status, alarm status, port links and data activity; they help
monitor and troubleshoot when needed. Figure 2-1-3 and 2-1-4 show the LED indications of the Managed Switch.
GS-5220-16S8C LED Indication
Figure 2-1-3: GS-5220-16S8C LED at Front Panel
GS-5220-16S8CR LED Indication
Figure 2-1-4: GS-5220-16S8CR LED at Front Panel
