4.16.2 Loop Protection Status
This Page displays the loop protection port status of the switch; screen in Figure 4-17-2 appears.

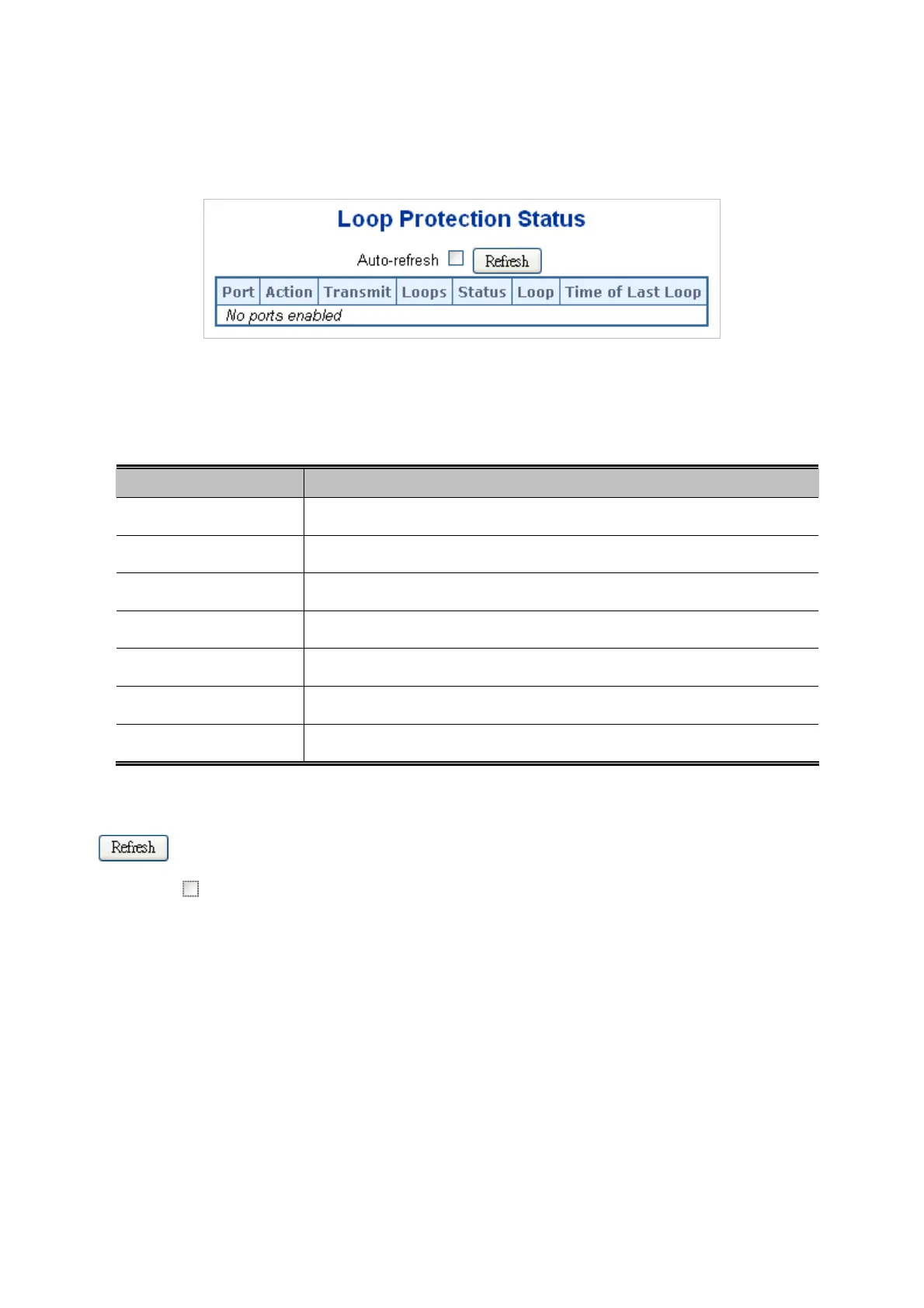

Figure 4-16-2: Loop Protection Status Screenshot
The Page includes the following fields:
Object Description
 Port
The Managed Switch port number of the logical port.
 Action
The currently configured port action.
 Transmit
The currently configured port transmit mode.
 Loops
The number of loops detected on this port.
 Status
The current loop protection status of the port.
 Loop
Whether a loop is currently detected on the port.
 Time of Last Loop
The time of the last loop event detected.
Buttons
: Click to refresh the Page immediately.
Auto-refresh
: Check this box to enable an automatic refresh of the Page at regular intervals.
