Planet GS-5220-16S8CR User Manual

User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
The Page includes the following fields:
Object Description
Th
e logical port for the settings contained in the same row.
Click on the port number in order to configure tag remarking.
For more detail, please refer to chapter 4.9.6.1.
 Port
Show
s the tag remarking mode for this port.
■ Classified: Use classified PCP/DEI values
■ Default: Use default PCP/DEI values.
■ Mapped: Use mapped versions of QoS class and DP level.
 Mode
4.9.6.1 QoS Egress Port Tag Remarking
The QoS Egress Port Tag Remarking for a specific port are configured on this Page. The QoS Egress Port Tag Remarking
sscreen in Figure 4-9-7 appears.

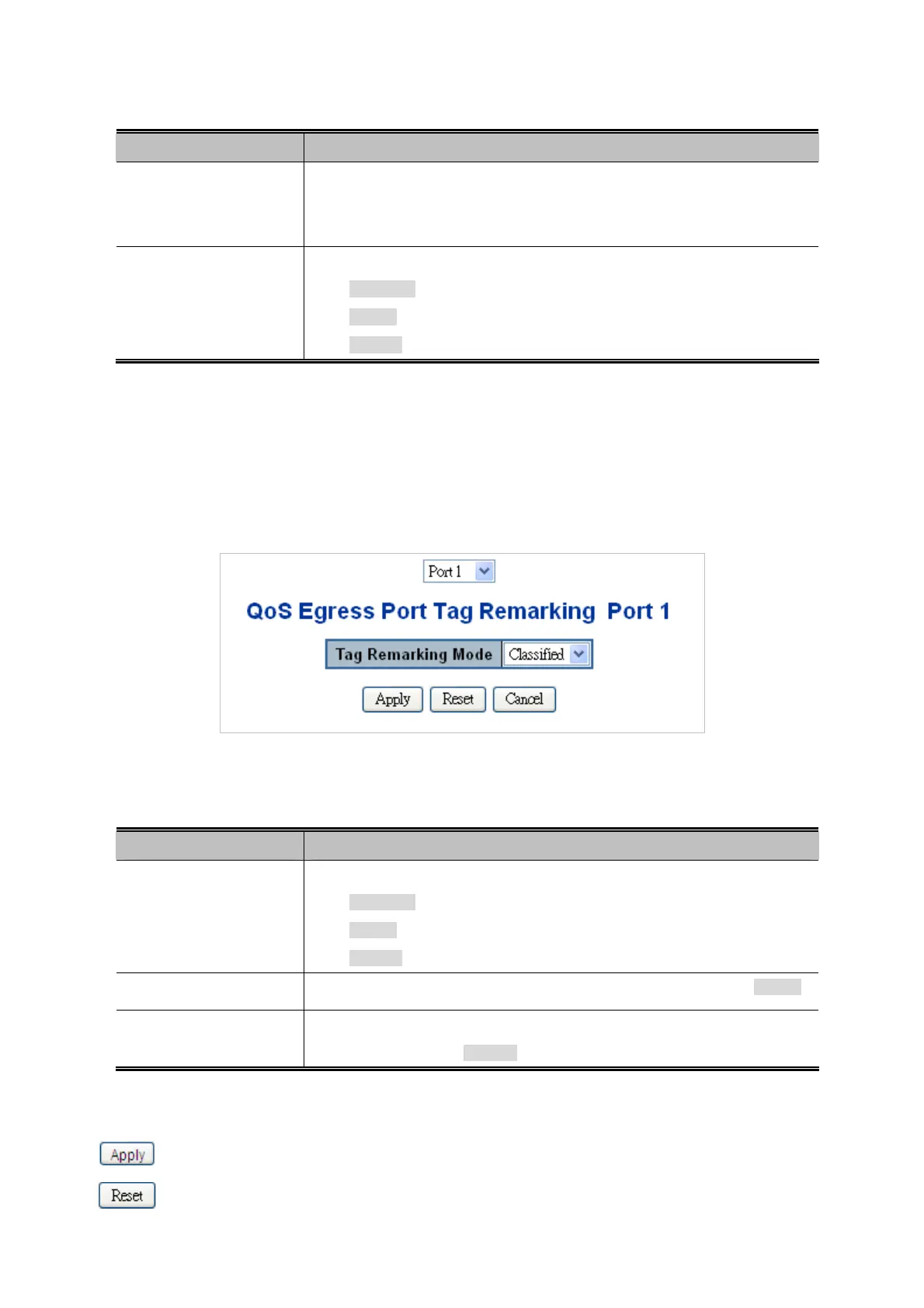

Figure 4-9-7: QoS Egress Port Tag Remarking Page Screenshot
The Page includes the following fields:
Object Description
Controls the t
ag remarking mode for this port.
■ Classified: Use classified PCP/DEI values.
■ Default: Use default PCP/DEI values.
■ Mapped: Use mapped versions of QoS class and DP level.
 Mode
 PCP/DEI Configuration
Controls the default PCP and DEI values used when the mode is set to Defa
ult.
 (QoS class, DP level)
to (PCP, DEI) Mapping
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values
when the mode is set to Mapped.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
189
