Response Identity EAPOL frame for EAPOL-based authentication, and the
source MAC address from the most recently received frame from a new client for
MAC-based authentication.
QoS Class assi
gned to the port by the RADIUS server if enabled.
ï‚· QoS Class
The VLAN ID that NAS has p
ut the port in. The field is blank, if the Port VLAN ID
is not overridden by NAS.
If the VLAN ID is assigned by the RADIUS server, "(RADIUS-assigned)" is
appended to the VLAN ID. Read more about RADIUS-assigned VLANs here.
If the port is mo
ved to the Guest VLAN, "(Guest)" is appended to the VLAN ID.
Read more about Guest VLANs here.
ï‚· Port VLAN ID
Buttons
: Click to refresh the Page immediately.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
4.11.5 Network Access Statistics
This Page provides detailed NAS statistics for a specific switch port running EAPOL-based IEEE 802.1X authentication. For
MAC-based ports, it shows selected backend server (RADIUS Authentication Server) statistics, only. Use the port select box to
select which port details to be displayed. The Network Access Statistics screen in Figure 4-11-6 appears.

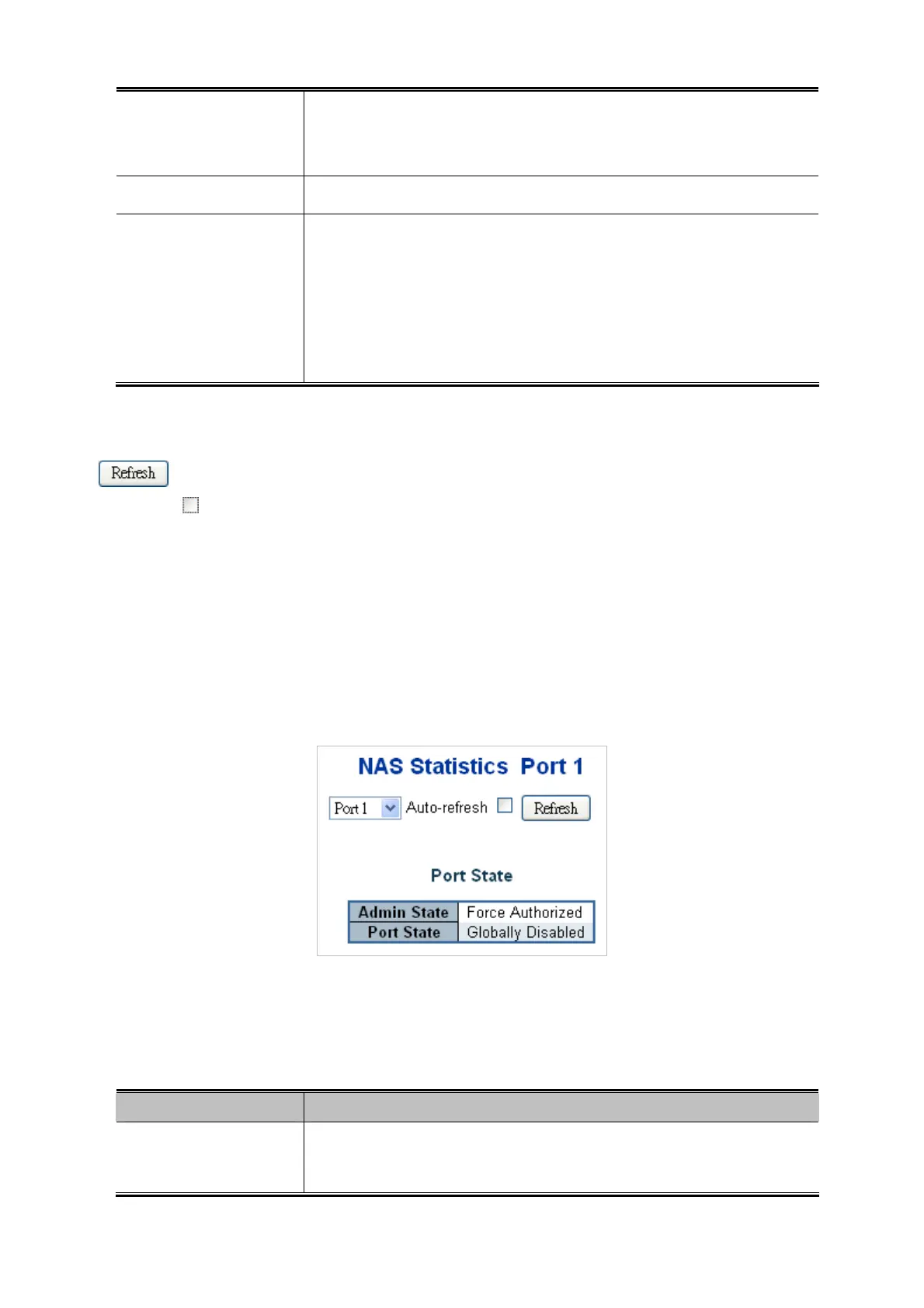

Figure 4-11-6: Network Access Statistics Page Screenshot
The Page includes the following fields:
Port State
Object Description
ï‚· Admin State
The port's current administrative state. Refer to NAS Admin State for a
description of possible values.
