4.7.6 MSTI Configuration
This Page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as
well. The MSTI Configuration screen in Figure 4-7-8 appears.

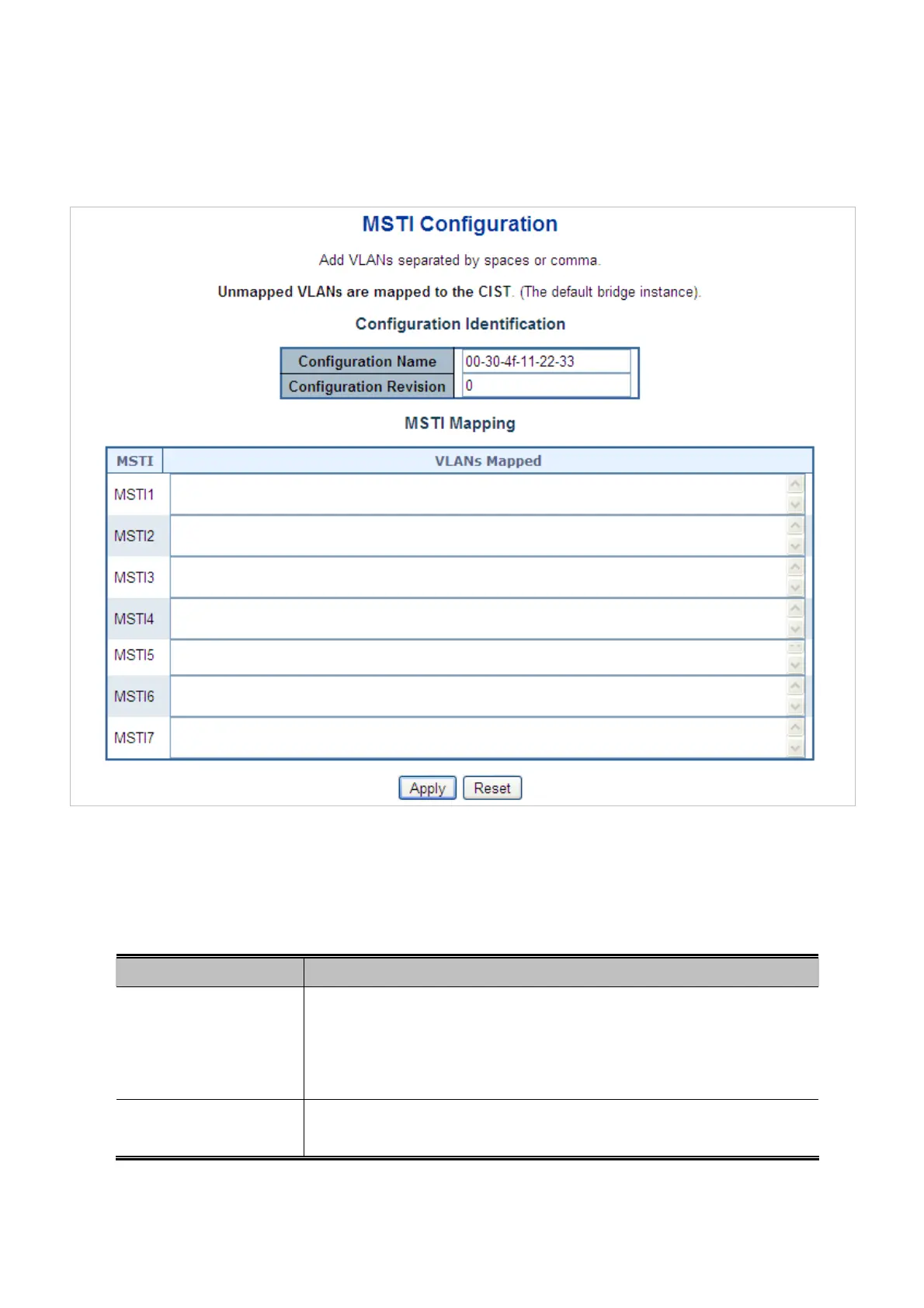

Figure 4-7-8: MSTI Configuration Page Screenshot
The Page includes the following fields:
Configuration Identification
Object Description
 Configuration Name
The name identifiying the VLAN to MSTI mapping. Bridges must share the name
and revision (see below), as well as the VLAN-to-MSTI mapping configuration in
order to share spanning trees for MSTI's. (Intra-region). The name is at most 32
characters.
 Configuration Revision
The revision of the MSTI configuration named above. This must be an integer
between 0 and 65535.
MSTI Mapping
145
