User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
 VLAN ID
Indicates the VLAN ID.
 Port Members
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
no ports are members, and all boxes are unchecked.
 Adding a New
MAC-based VLAN
Click “Add New Entry” to add a new MAC-based VLAN entry. An empty row is
added to the table, and the MAC-based VLAN entry can be configured as
needed. Any unicast MAC address can be configured for the MAC-based VLAN
entry. No broadcast or multicast MAC addresses are allowed. Legal values for a
VLAN ID are 1 through 4095.
The MAC-based VLAN entry is enabled when you click on "Save". A MAC-based
VLAN without any port members will be deleted when you click "Save".
The “Delete” button can be used to undo the addition of new MAC-based VLANs.
Buttons
: Click to add a new MAC-based VLAN entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
: Updates the table starting from the first entry in the MAC-based VLAN Table.
: Updates the table, starting with the entry after the last entry currently displayed.
4.6.10 MAC-based VLAN Status
This Page shows MAC-based VLAN entries configured by various MAC-based VLAN users. The MAC-based VLAN Status
screen in Figure 4-6-19 appears.

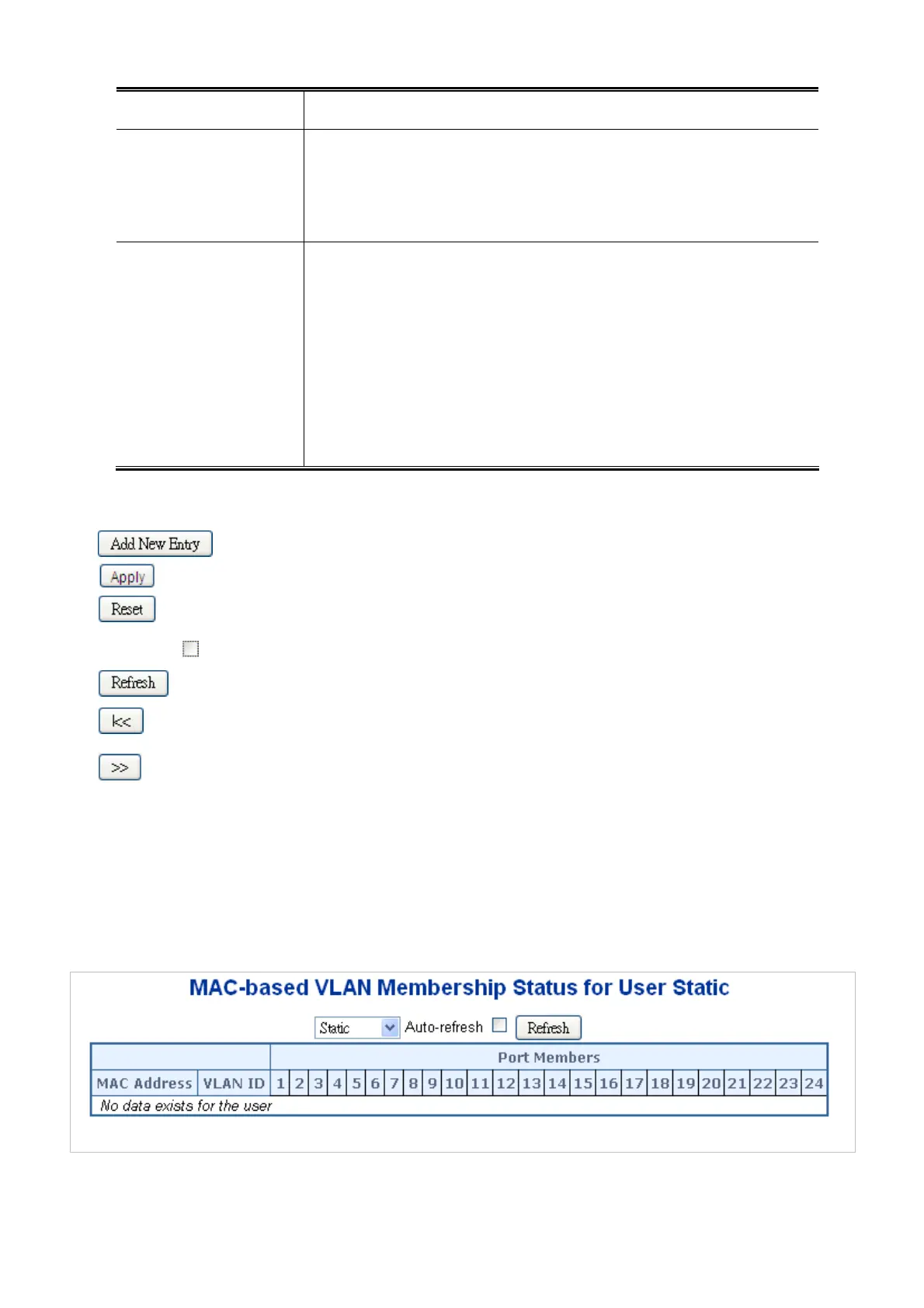

Figure 4-6-19: MAC-based VLAN Membership Configuration for User Static Page Screenshot
