Port VLAN ID
Shows the PVID setting for the port.
Tx Tag
Shows egress filtering frame status whether tagged or untagged.
Untagged VLAN ID
Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behavior
at the egress side.
Conflicts
Shows status of Conflicts whether exists or Not. When a Volatile VLAN User
requests to set VLAN membership or VLAN port configuration, the following
conflicts can occur:
Functional Conflicts between feature.
Conflicts due to hardware limitation.
Direct conflict between user modules.
Buttons
: Select VLAN Users from this drop down list.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
4.6.6 Private VLAN
The Private VLAN membership configurations for the switch can be monitored and modified here. Private VLANs can be added
or deleted here. Port members of each Private VLAN can be added or removed here.
Private VLANs are based on the source port mask, and there are no connections to VLANs. This means that VLAN IDs and
Private VLAN IDs can be identical.
A port must be a member of both a VLAN and a Private VLAN to be able to forward packets. By default, all ports are VLAN
unaware and members of VLAN 1 and Private VLAN 1.
A VLAN unaware port can only be a member of one VLAN, but it can be a member of multiple Private VLANs.
The Private VLAN screen in Figure 4-6-6 appears.

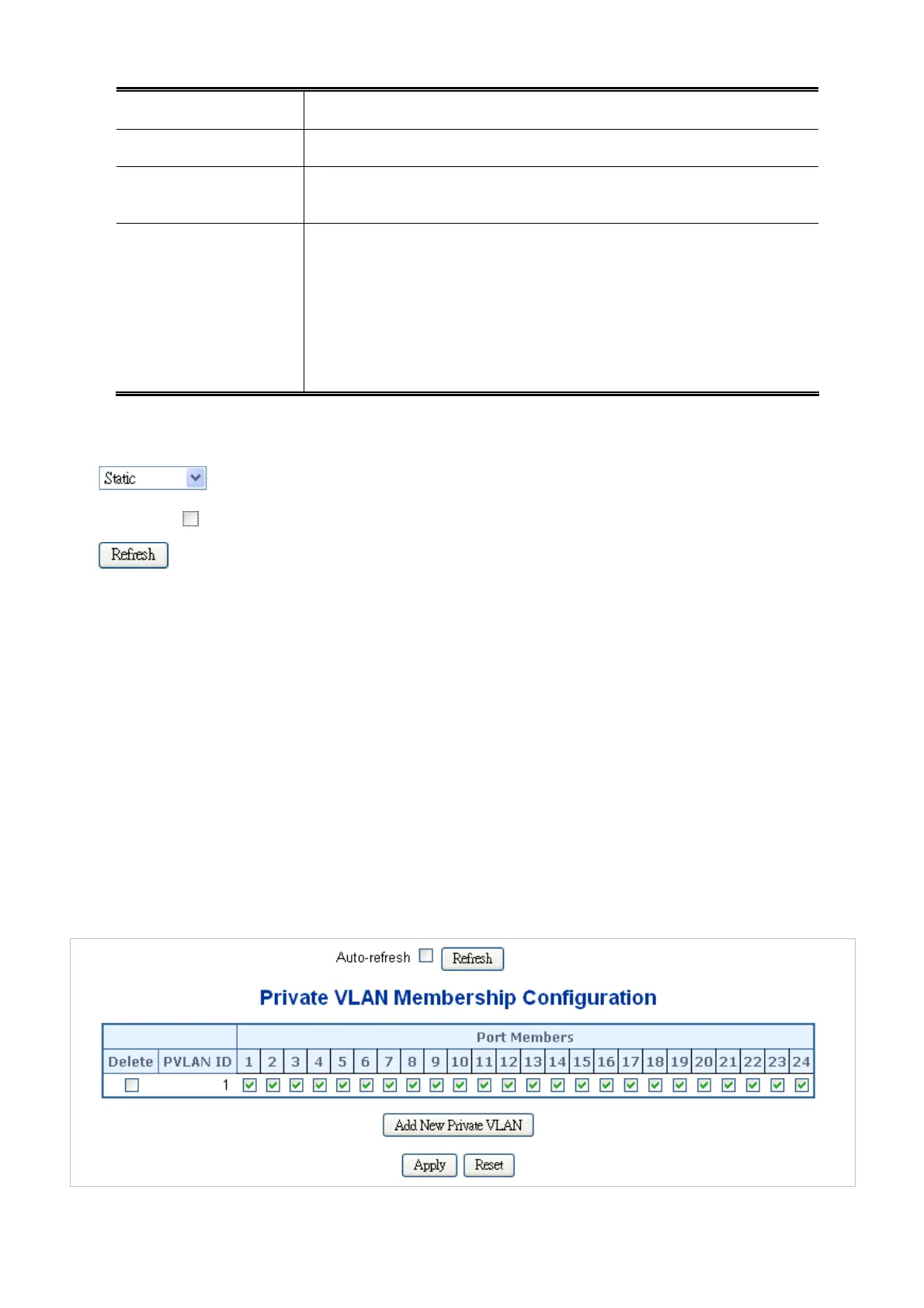

Figure 4-6-6 Private VLAN Membership Configuration page screenshot
117
