Planet GS-5220-16S8CR User Manual

User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
4.10.4 ACL Ports Configuration
Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the
frame matches a specific ACE. The ACL Ports Configuration screen in Figure 4-10-4 appears.

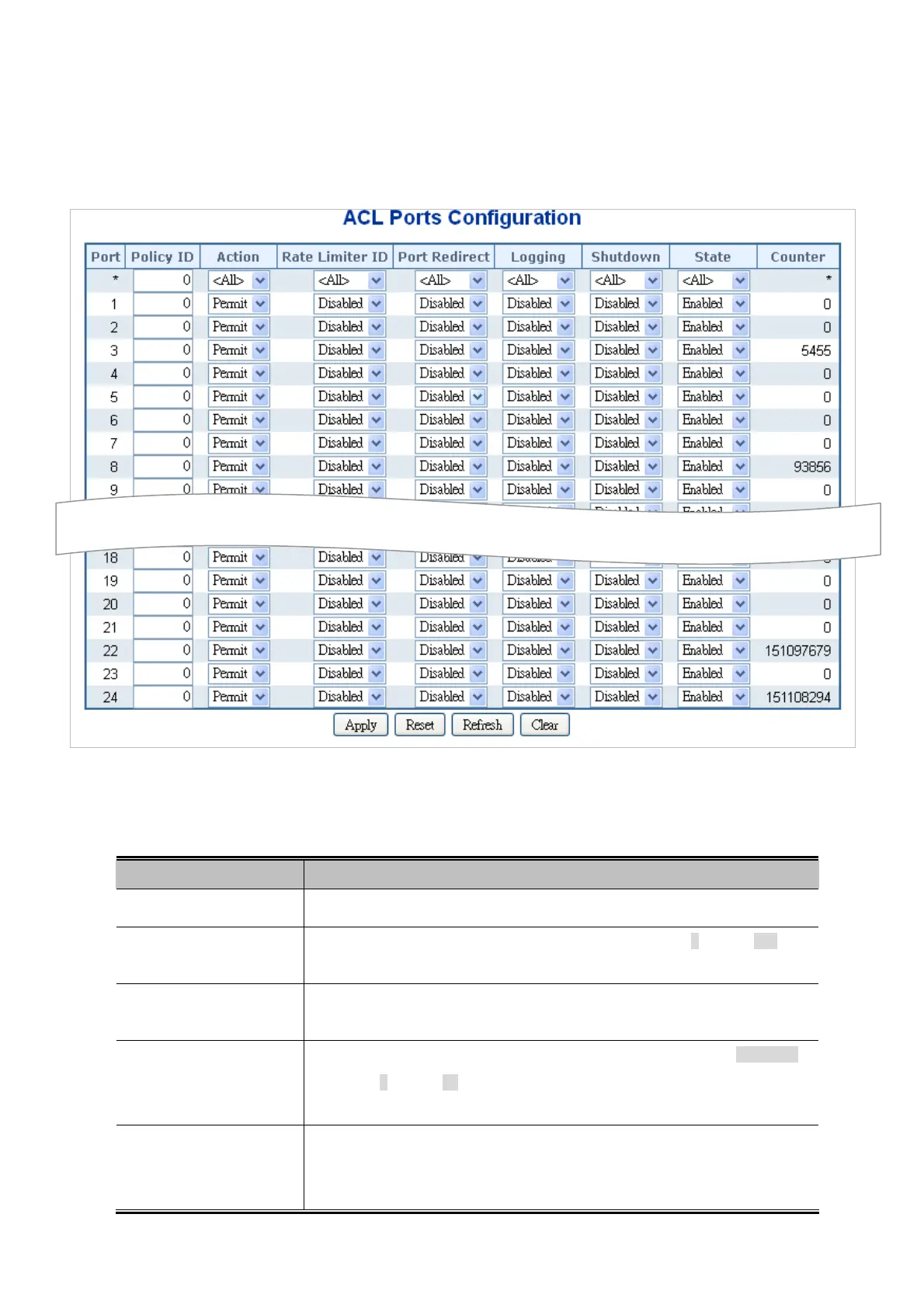

Figure 4-10-4: ACL Ports Configuration Page Screenshot
The Page includes the following fields:
Object Description
The logical p
ort for the settings contained in the same row.
 Port
Select the policy to apply to this port. The allowed values are 0 through 255.
The default value is 0.
 Policy
ID
Select w
hether forwarding is permitted ("Permit") or denied ("Deny").
The default value is "Permit".
 Action
Select which rate limiter to apply on this port. The allowed values are Disabled or
the values 1 through 16.
The default value is "Disabled".
 Rate Limiter ID
 Port Redirect
Select which port frames are redirected on. The allowed values are Disabled or a
specific port number and it can't be set when action is permitted. The default
value is "Disabled".
222
