4.17.2 RMON Alarm Status

This Page provides an overview of RMON Alarm entries. Each Page shows up to 99 entries from the Alarm table, default being

20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the

beginning of the Alarm table. The first displayed will be the one with the lowest ID found in the Alarm table; screen in Figure

4-17-2 appears.

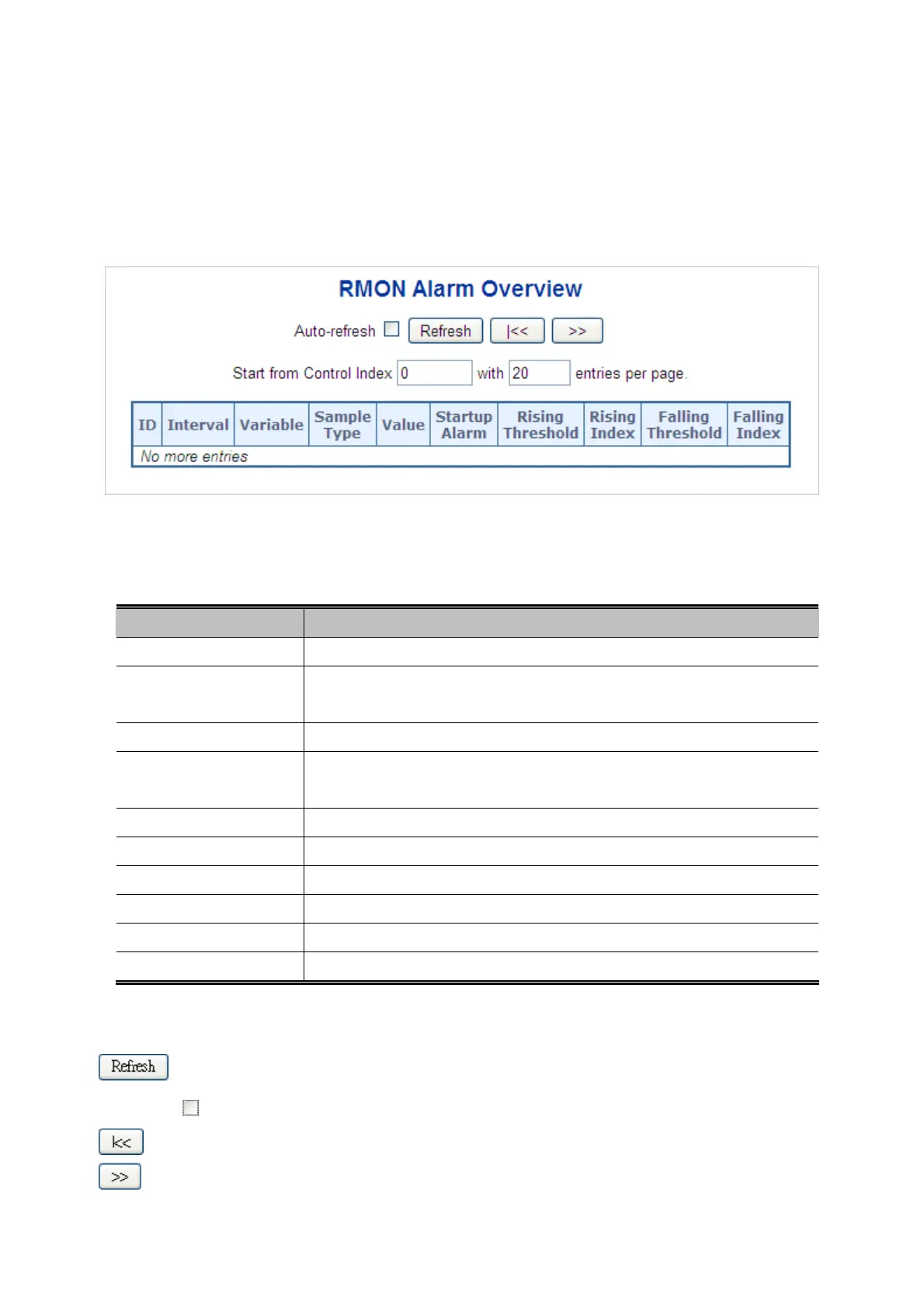

Figure 4-17-2: RMON Alarm Overview Page Screenshot

The Page includes the following fields:

Object Description

 ID

Indicates the index of Alarm control entry.

 Interval

Indicates the interval in seconds for sampling and comparing the rising and

falling threshold.

 Variable

Indicates the particular variable to be sampled

 Sample Type

The method of sampling the selected variable and calculating the value to be

compared against the thresholds.

 Value

The value of the statistic during the last sampling period.

 Startup Alarm

The alarm that may be sent when this entry is first set to valid.

 Rising Threshold

Rising threshold value.

 Rising Index

Rising event index.

 Falling Threshold

Falling threshold value.

 Falling Index

Falling event index.

Buttons

: Click to refresh the Page immediately.

Auto-refresh

: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.

: Updates the table, starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.

: Updates the table, starting with the entry after the last entry currently displayed.
