User’s Manual of GS-5220-16S8C & GS-5220-16S8CR

■ DPL Valid Drop Precedence Level can be (0-3) or 'Default'.

■ DSCP Valid DSCP value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) or

'Default'.

'Default' means that the default classified value is not modified by this QCE.

Buttons

: Click to apply changes

: Click to undo any changes made locally and revert to previously saved values

: Return to the previous Page without saving the configuration change

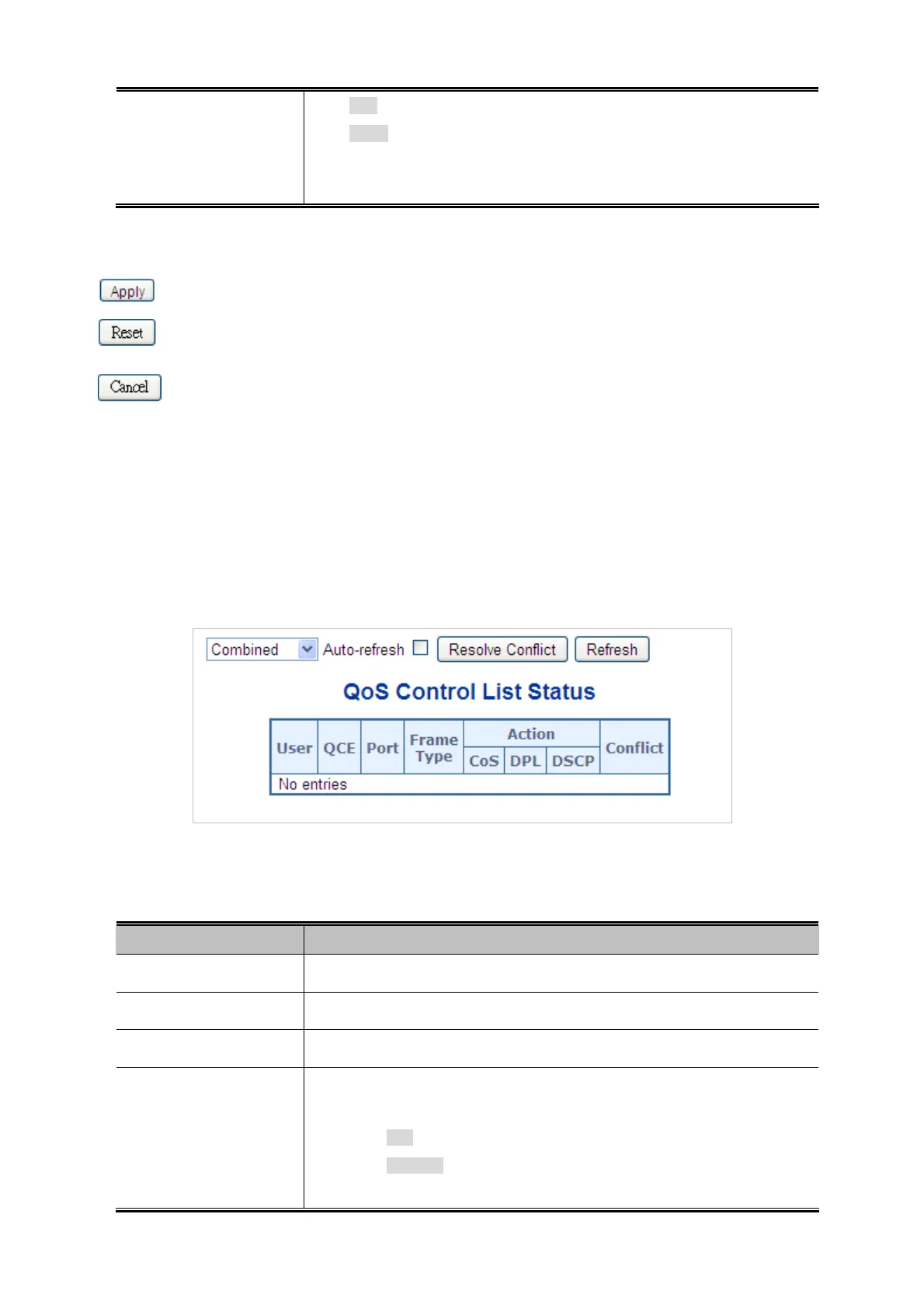

4.9.12 QCL Status

This Page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific

QCE is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The

QoS Control List Status screen in Figure 4-9-14 appears.

Figure 4-9-14: QoS Control List Status Page Screenshot

The Page includes the following fields:

Object Description

Indicates the QCL

user.

 User

Indicates the in

dex of QCE.

 QCE#

Indicates the li

st of ports configured with the QCE.

 Port

 Frame Type

Indicates the type of frame to look for incomming frames. Possible frame types

are:

■ Any: The QCE will match all frame type.

■ Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are

allowed.

199
