User’s Manual of GS-5220-16S8C & GS-5220-16S8CR

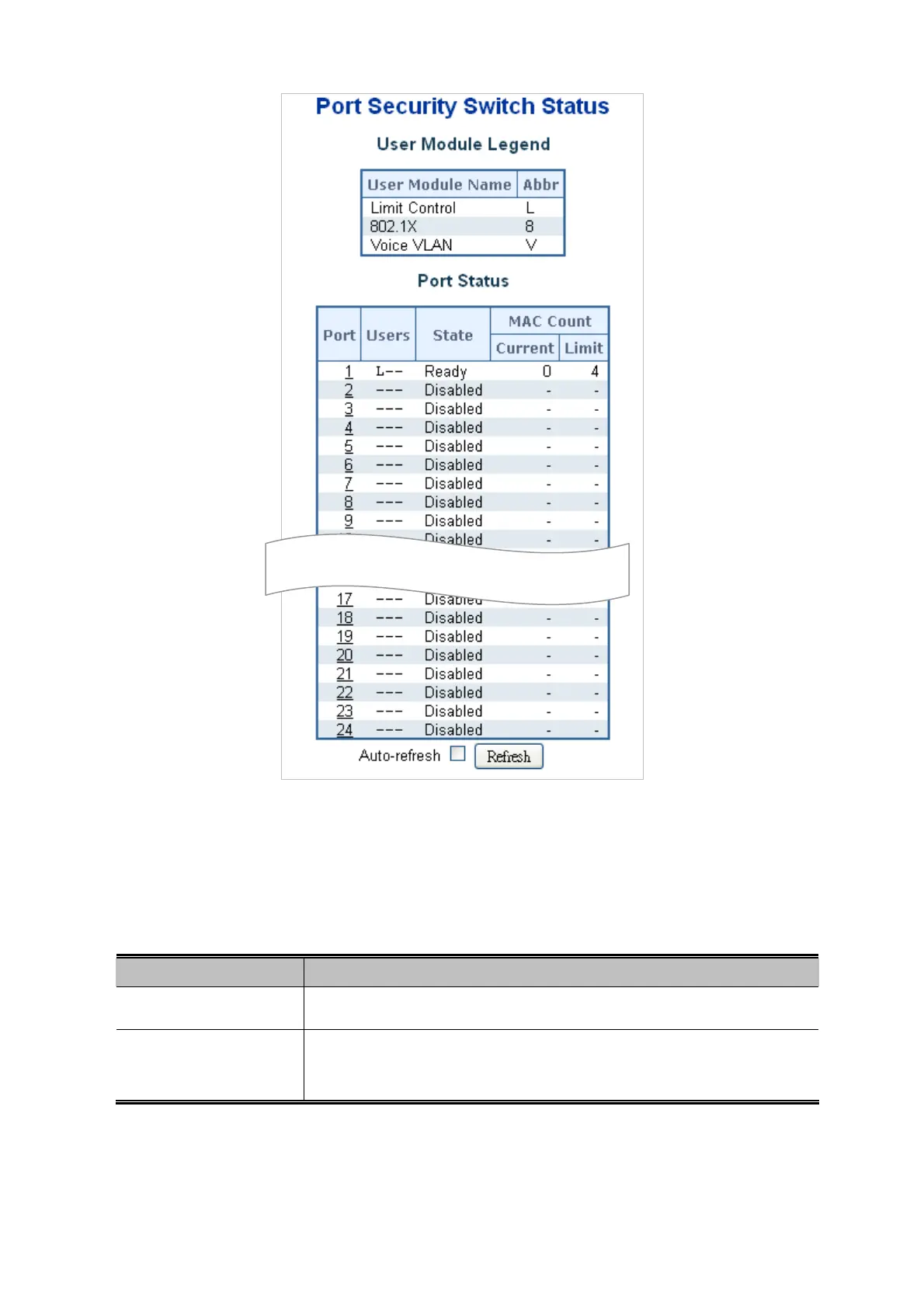

Figure 4-12-6: Port Security Status Screen Page Screenshot
The Page includes the following fields:
User Module Legend
The legend shows all user modules that may request Port Security services.
Object Description
ï‚· User Module Name
The full name of a module that may request Port Security services.
ï‚· Abbr
A one-letter abbreviation of the user module. This is used in the Users column in
the port status table.
Port Status
The table has one row for each port on the selected switch in the switch and a number of columns, which are:
276
