User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
 All frames transmitted on a given port (also known as egress or destination mirroring).
Mirror Port Configuration

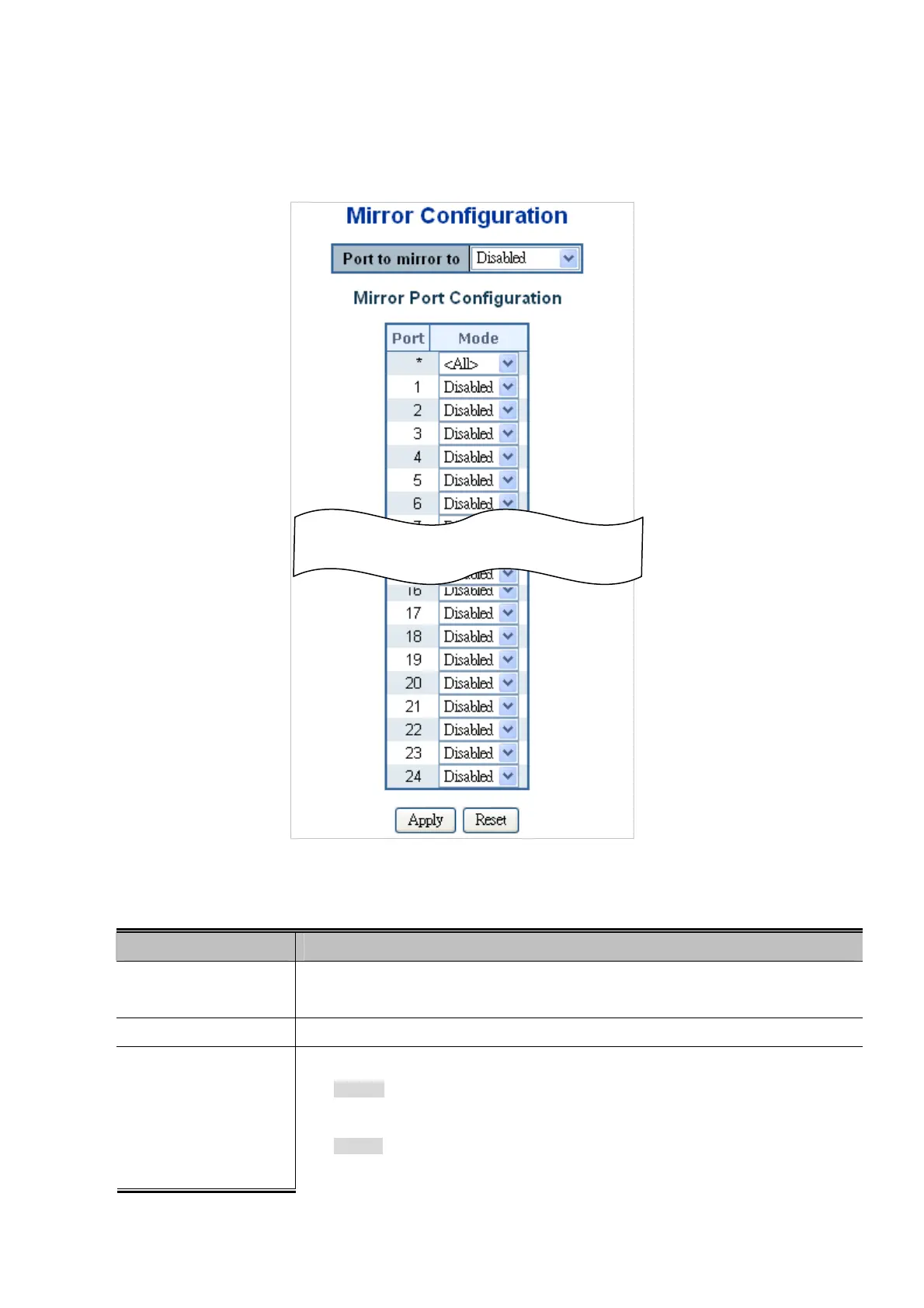

The Port Mirror screen in Figure 4-4-8 appears.
Figure 4-4-8: Mirror Configuration Page Screenshot
The Page includes the following fields:
Object Description
 Port to mirror on
Frames from ports that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port. Disabled disables mirroring.
 Port
The logical port for the settings contained in the same row.
Select mirror mode.
■ Rx only: Frames received at this port are mirrored to the mirroring port. Frames
transmitted are not mirrored.
 Mode
■ Tx only: Frames transmitted from this port are mirrored to the mirroring port. Frames
received are not mirrored.
94
