Fuel Systems

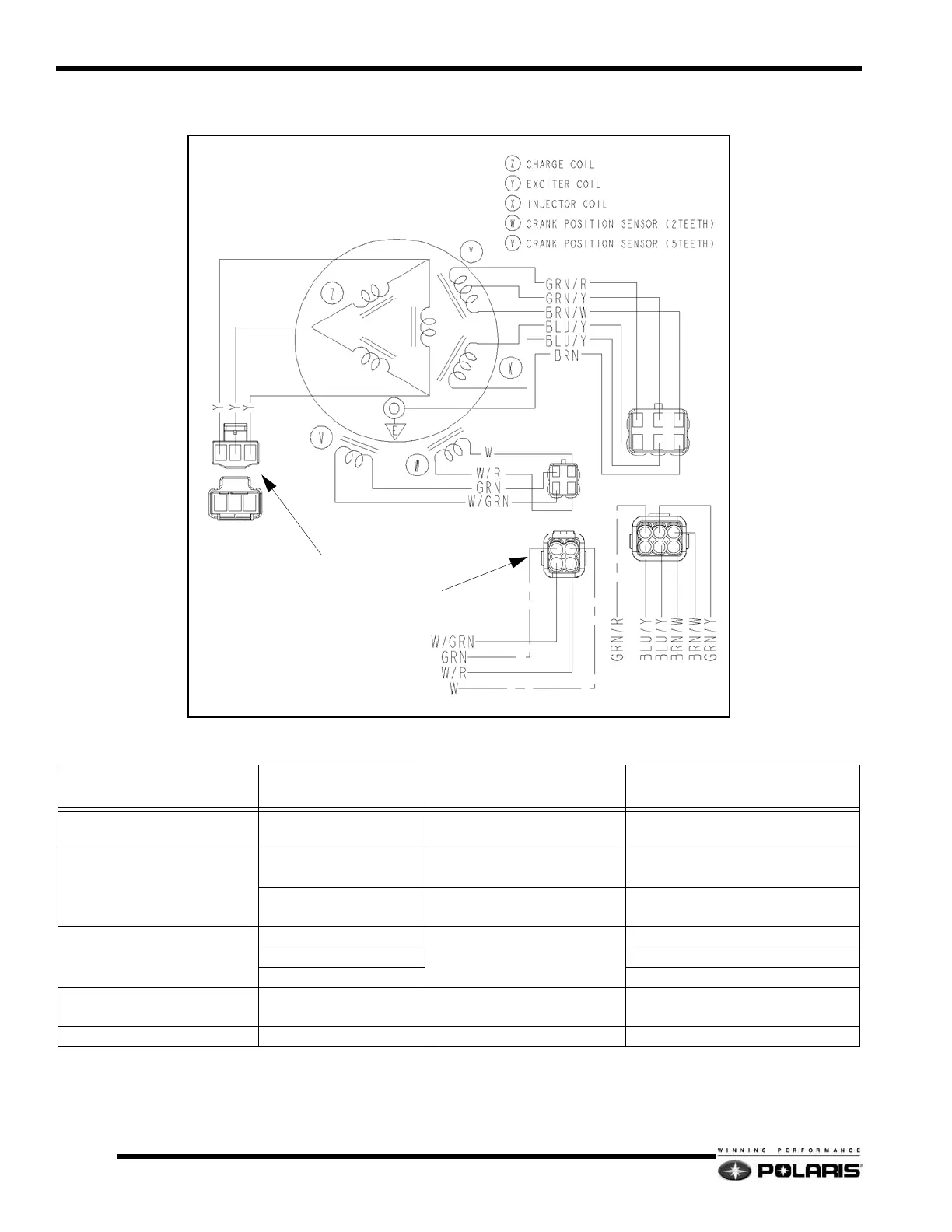

Stator Assembly
Stator Specifications
ITEM COLOR SYSTEM FUNCTION
RESISTANCE
+/- 15% @68
°F (20°C)
CHARGE / LIGHTING COIL YELLOW
CHASSIS / BATTERY
POWER
YEL TO YEL = 0.13Ω
NO CONTINUITY TO GROUND
CRANK POSITION SENSOR
(CPS)
GRN to WHT/GRN
Crank Position Sensor (5
Tooth) Ignition timing.
GRN to WHT/GRN = 190Ω
WHT to WHT/RED
Crank Position Sensor (2
Tooth) Locates TDC and RPM.
WHT to WHT/RED = 190Ω
COILS
GRN/RED
Exciter Coil - Powers the
Ignition Coils / ECU
GRN/RED to GRN/YEL = 15Ω
GRN/YEL GRN/RED to BRN/WHT = 30Ω
BRN/WHT BRN/WHT to Ground = 0Ω
INJECTOR POWER COIL BLU/YEL TO BLU/YEL
Supplies power to fuel
injectors.
BLU/YEL to BLU/YEL = 2.4Ω
ENGINE GROUND BROWN ENGINE GROUND 0Ω
CRANK POSITION
SENSORS
REG REC
