gasket.
8. To remove the oil pump / cover, remove the two fasteners
then pull the pump / cover out of the crankcase bore.
Discard the gasket.
9. The cross shaft can be extracted from the water pump side
of the crankcase.
10. Assembly is the reverse of disassembly. Always use new
o-rings, seals and gaskets during assembly.
11. Install a new seal onto the shaft from the water pump side.
12. To install a new water pump seal, use the seal installation
tool, PN 2872010. Verify the seal lips are facing the cross
shaft gear.

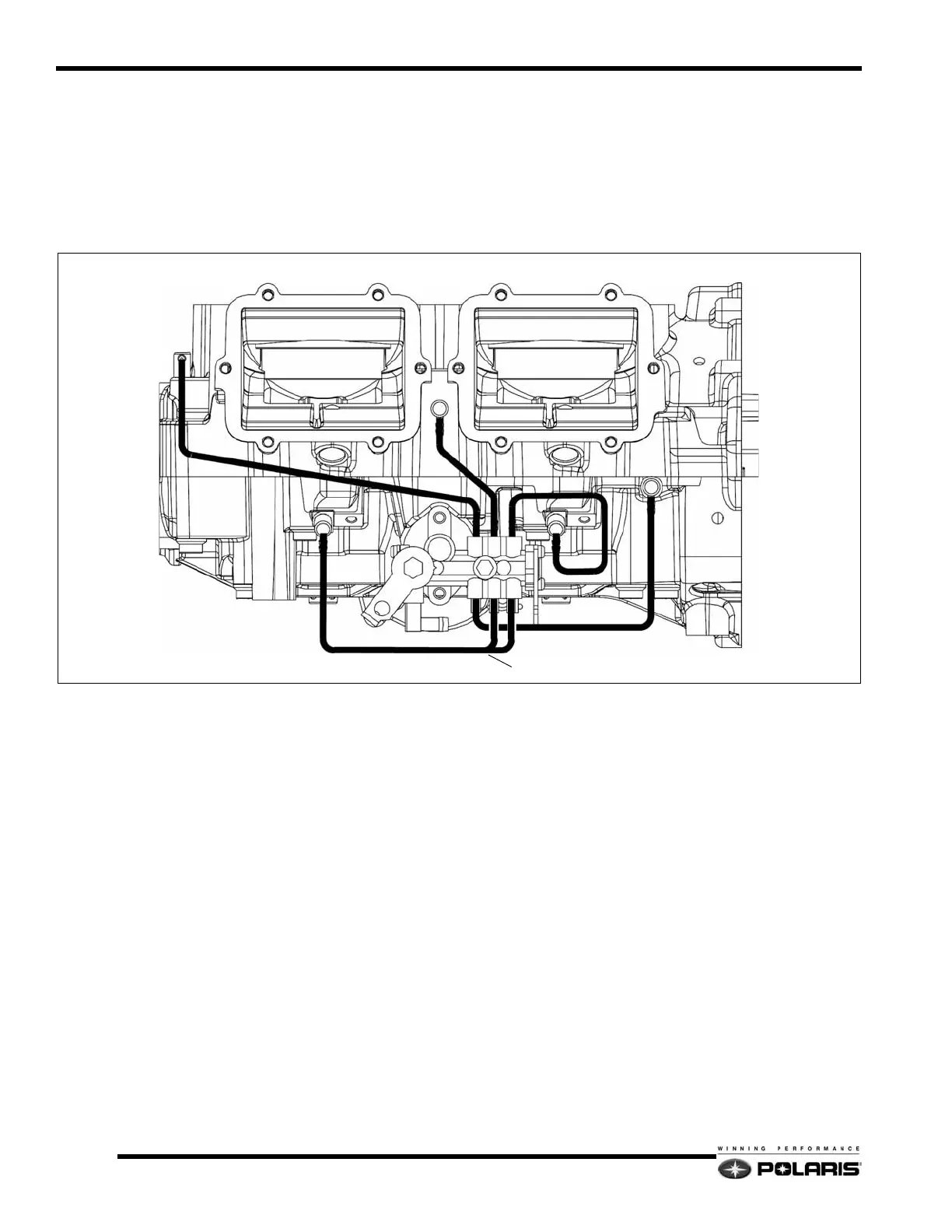

600 / 700 / 800 CFI Oil Hose Routing
TEE FITTING
To Next Page
