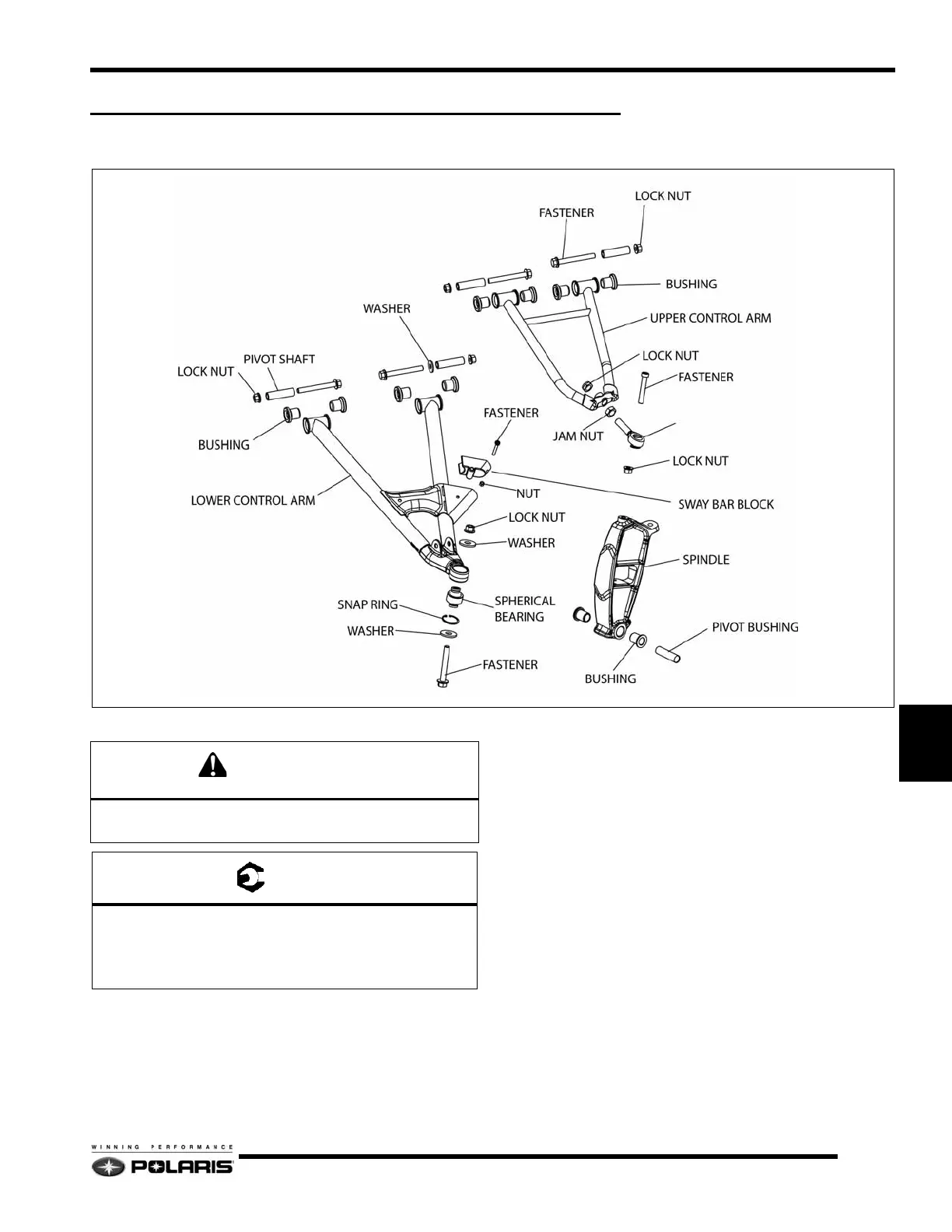

FRONT SUSPENSION ASSEMBLY ILLUSTRATIONS
IQ Front Suspension
NOTE: 2008 IQ Front Suspension Shown
NOTE: Assembly Notes
• Note washer installed between fastener and pivot
bushing on the rear, lower control arm mount to allow
sufficient clearance between nut and sway bar.
• Orientate rod ends so they are parallel with mating
component.
B
B
B
B
B
B
C
A
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A = 29 Ft.Lb. (39 Nm) (Shock Mounting Fastener Nuts)
B = 40 Ft.Lb. (54 Nm)
C = 45 Ft.Lb. (61 Nm)
Sway Bar Block Fastener Nuts = Hand Tight
