10.2
Chassis
IQ CHASSIS COMPONENTS

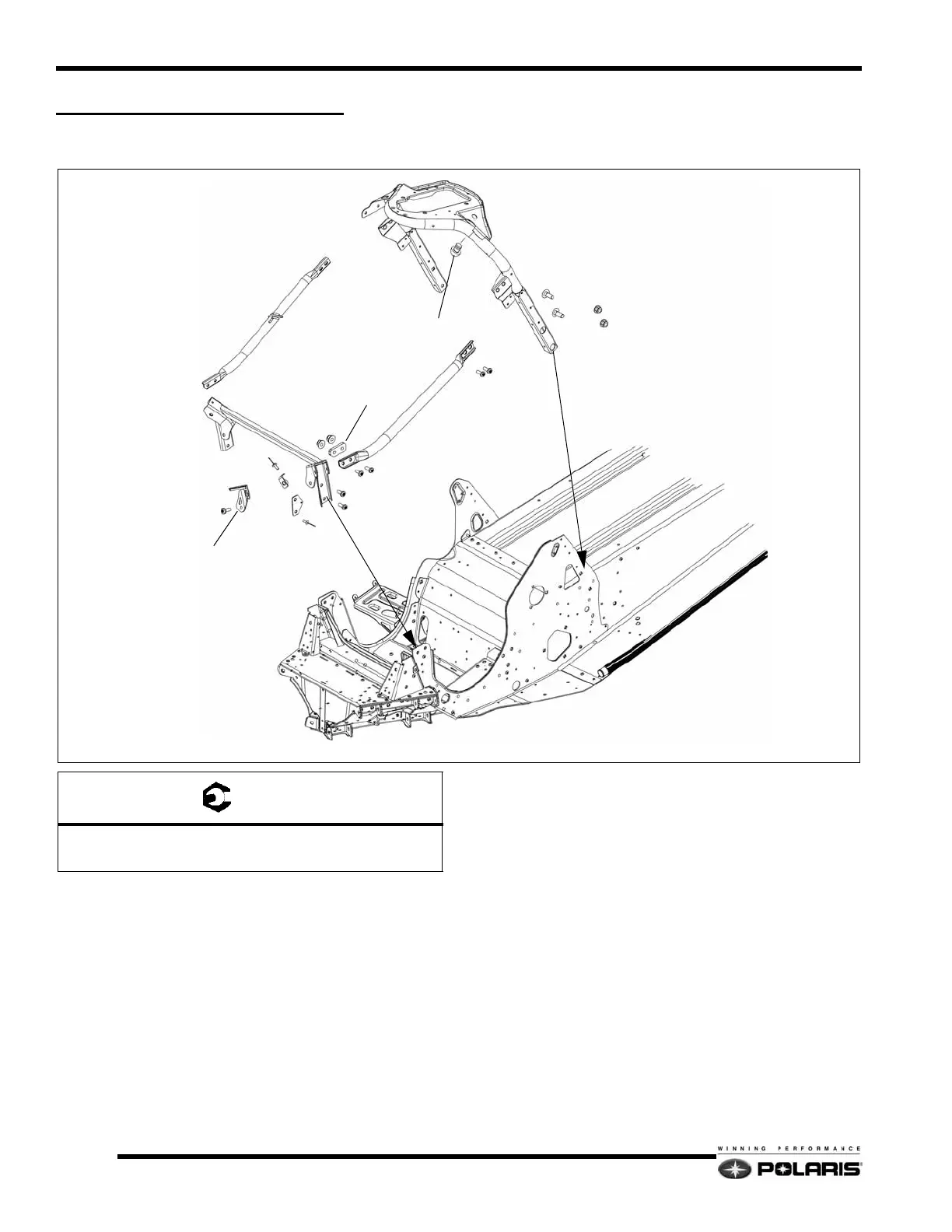

Steering Hoop Assembly (Typical)
STEERING HOOP
RH UPPER BRACE
LH UPPER BRACE
CROSS MEMBER
FUEL TANK BUMPER
SPACER
BRACKET
A
B
B
B
= T
A: 18 Ft.Lb. (24 Nm)
B: 21 Ft.Lbs. (28 Nm)
