4.32
Fuel Systems

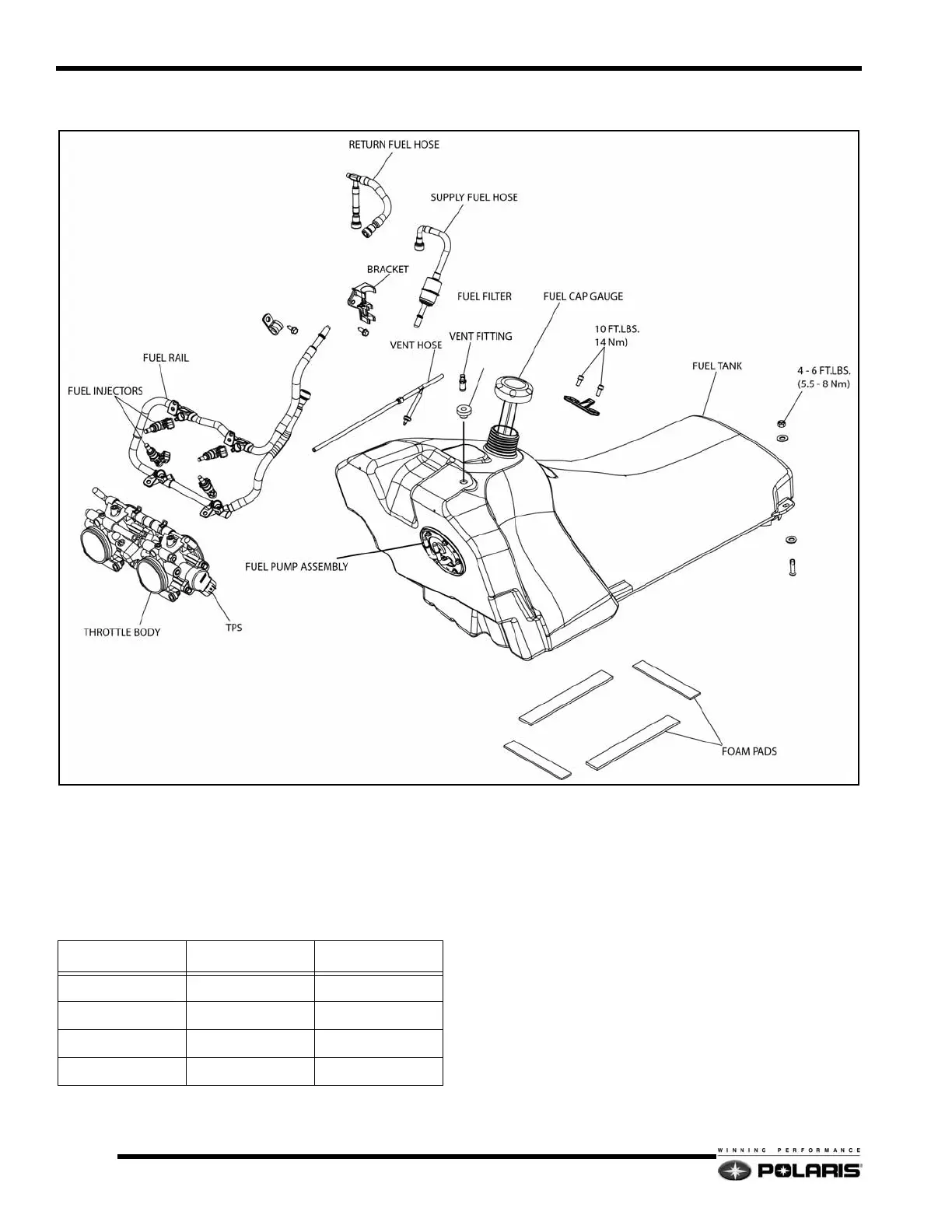

2007 700 CFI Fuel System
2007 700 CFI Fuel Pump Service
The fuel pump flange assembly (PFA) can be removed and
replaced without replacing the entire fuel tank assembly.
Note that the 2007 700 CFI fuel pump does not feature a fuel
level sender.
1. Remove the fuel from the fuel tank. Store the fuel is an
appropriate fuel-holding container.
2. Remove the following components:
• Seat Assembly
• Console (Loosen fasteners, then lift console away from
tank and set to the side.)
• Air box.
3. If electric start is installed, disconnect the negative (-)
cable, the positive (+) cable from the battery.
4. Relieve the fuel pressure.See “Fuel Rail Bleeding / Pressure
Testing” on page 4.29.
5. Unplug the fuel pump electrical connector.
6. Remove the fuel hoses from the fuel pump. See
“Disconnect Fittings” on page 4.29.
7. Remove the fasteners securing the fuel tank to the tunnel.
PIN COLOR ITEM
1 Red Pump Power
2N/AN/A
3 Black Pump Ground
4 Brown Chassis Ground
