Polaris IQ 2007 User Manual

5.15
Engine and Cooling Systems
5

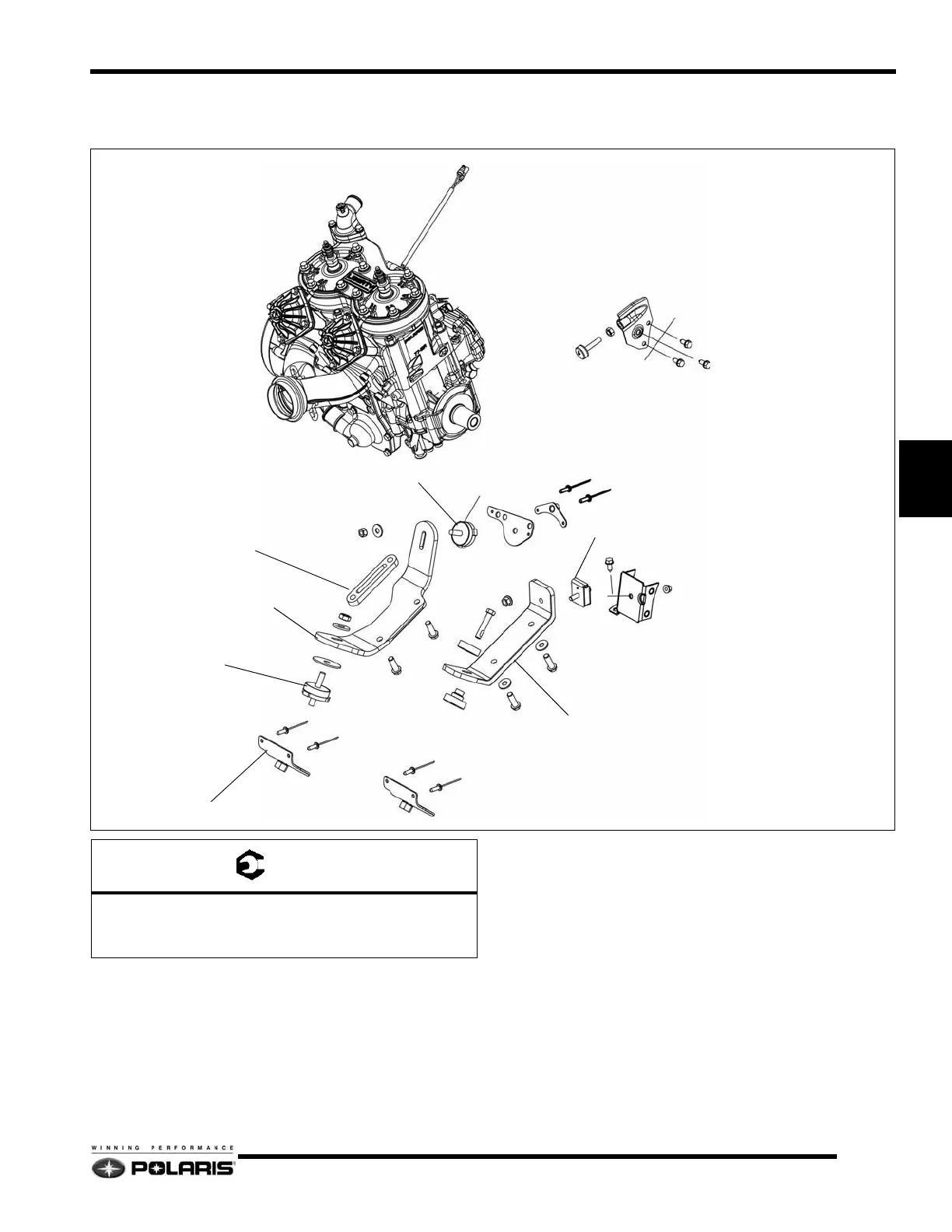

2008 IQ Carbureted Engine Mounting
NOTE: Use an engine mount socket, PN: 2871989 to
remove the engine mounts from the bulkhead.
CLINCH PLATE
ENGINE MOUNT
RH ENGINE STRAP
SPACER
ENGINE MOUNT
TORQUE STOP
ENGINE MOUNT BRACKET
LH ENGINE STRAP
ENGINE MOUNT
ENGINE ASSEMBLY
A
A
A
A
A
A
B
C
C
C
C
A
= T
A = 28 Ft.Lbs. (38 Nm)
B = 15 Ft.Lbs. (20 Nm)
C = 45 Ft.Lbs. (61 Nm)
