11.15
Battery and Electrical Systems
11
CARBURETED ELECTRICAL
SYSTEMS

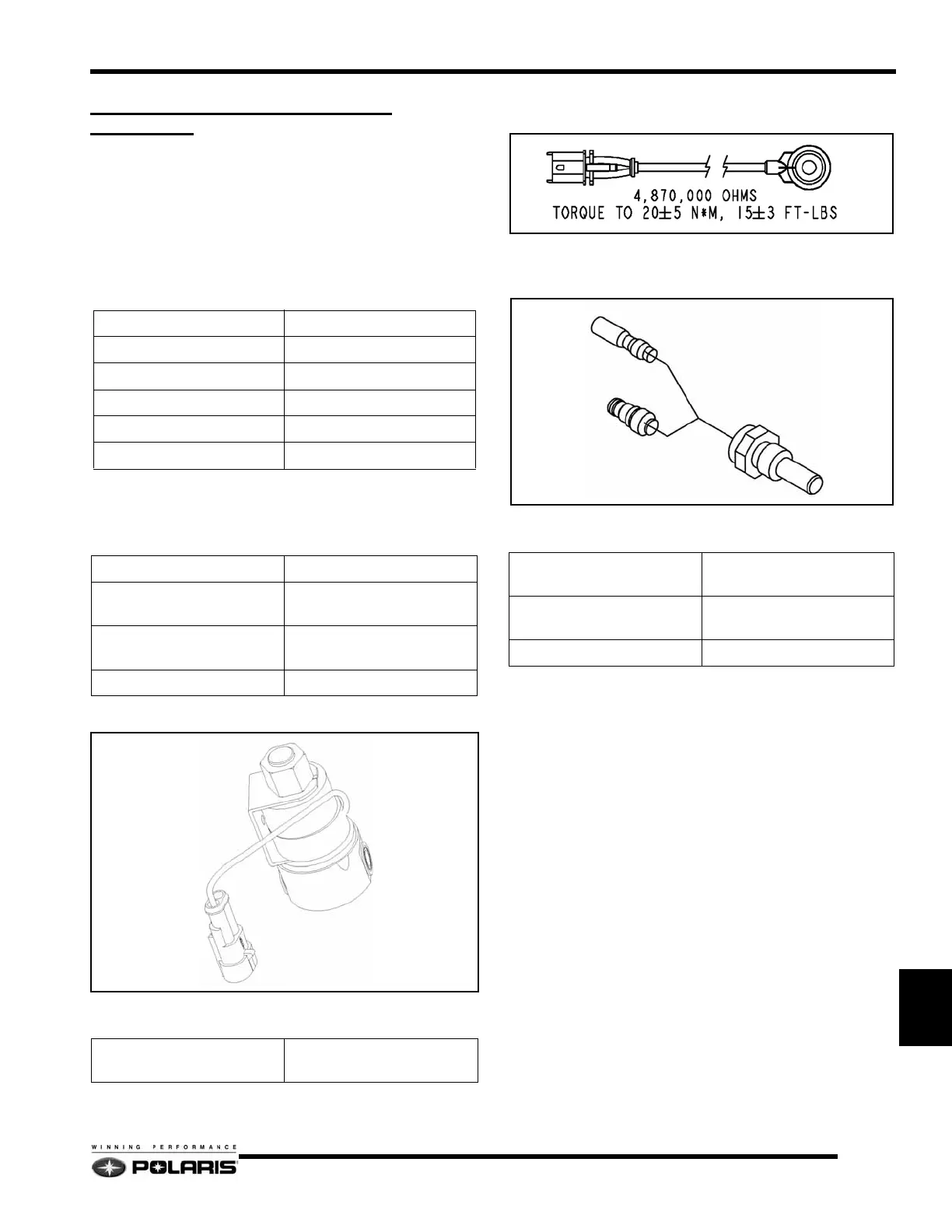

600 HO Stator Specifications
NOTE: Use a multimeter to test the stator circuits.
Remember to test the circuits when the engine is
cold and after the engine has been running for some
time.
Ignition Coil Packs
Exhaust Valve Solenoid
Knock Sensor
600HO Coolant Temperature Sensor
Oil Level Sender
To test the oil level sender, position the sender as it would be in
the oil tank. Allow the float to drop in the direction it would if
the oil tank were empty. Continuity should be present when
using a multimeter to test the sender with the float in the “empty”
position.
No continuity should be present when the float is moved away
from the “empty” position.
Specifications
YEL TO BRN 0.15Ω
BRN TO ENGINE 0Ω
BLK / RED TO GRN 15Ω
RED TO GRN 15Ω
BLK or WHT TO ENGINE 0Ω
WHT / RED TO WHT 185Ω
Specifications
BLK TO WHT (Primary) 0.3Ω
BLK or WHT TO
SECONDARY LEAD
OPENΩ
SECONDARY LEAD TO
LEAD
5KΩ
PLUG CAPS 10KΩ
Specifications
Coil Resistance
(WHT/YEL to RED)
15Ω +/- 15% @ 68°F (20°C)
Sensor Specifications
Operating Temperature Range
-22_F - +248 _F (-30_C -
120_C)
Resistance
2.4 - 2.6KΩ@ 68_F (20_C)
(Measure in stirred water)
Installation Torque 29 ft.lbs. (39.2Nm)
