Battery and Electrical Systems
2007 600 HO Regulator / Rectifier
This regulator / rectifier performs the following functions:
• Regulates AC Voltage to 14.3 volts.
• Provides regulated DC voltage to power the MFD
gauge.
• Provides regulated DC voltage to charge the battery, if
equipped.
• Illuminates the MFD brake LED indicator by grounding
the MFD circuit whenever the module receives an Vac
brake light signal (operator pulls brake lever).
Replace the regulator / rectifier whenever the following occurs:
• AC voltage is over 14.8 volts when the engine is
running.
• No DC voltage found on the RED/WHT or RED
circuits when the engine is running.
• The brake lights illuminate when the brake lever is
pulled, but the LED indicator does not.
2008 RMK Shift 155 Regulator / Rectifier
The RMK Shift regulator / rectifier performs the same functions
as the 2007 600 HO regulator / rectifier.

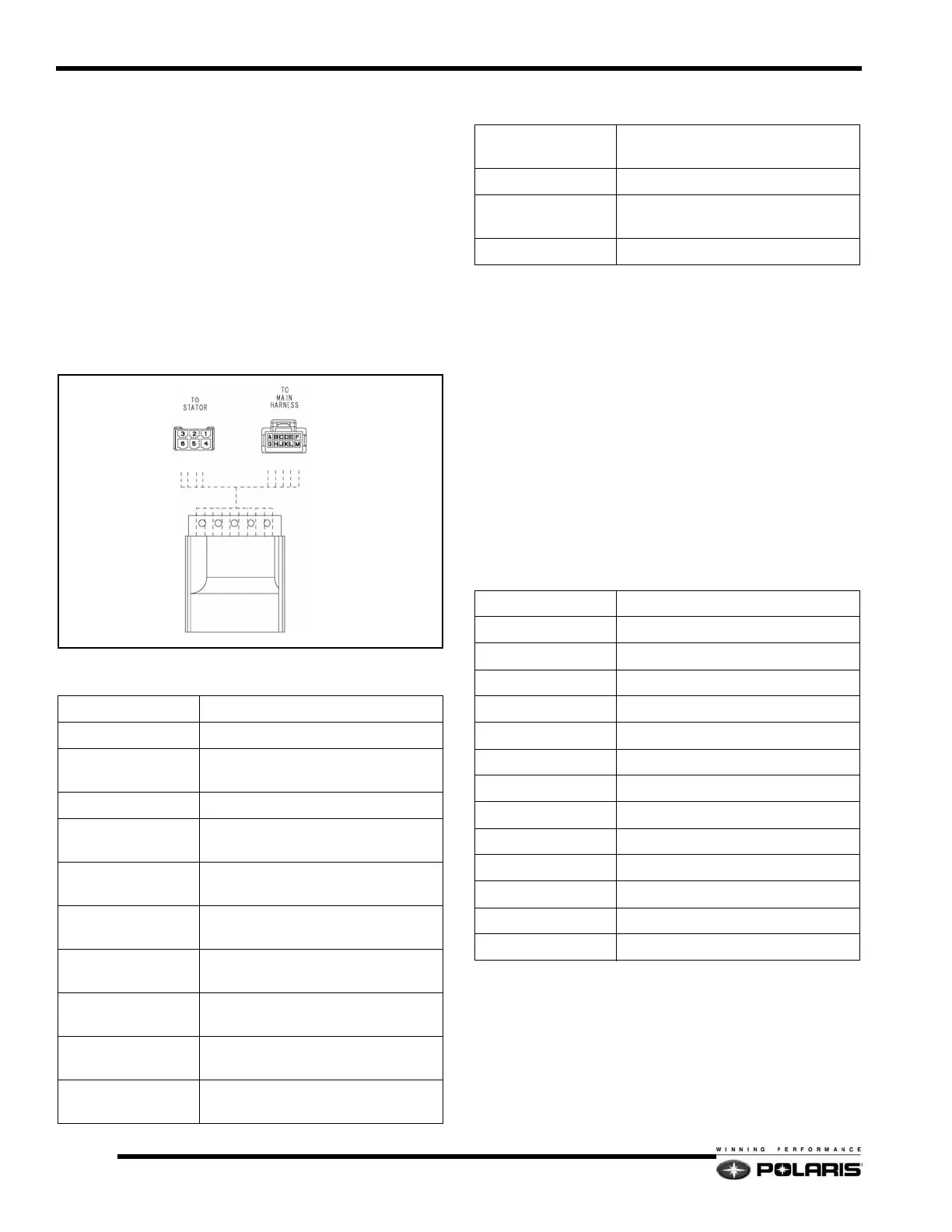

Circuit Specifications
PLUG / PIN / COLOR FUNCTION
STATOR / 2 / BROWN GROUND
STATOR / 3 /
YELLOW
AC POWER INPUT
STATOR / 4 / BROWN GROUND
STATOR / 6 /
YELLOW
AC POWER INPUT
HARNESS / A /
YELLOW
REGULATED AC POWER
HARNESS / B / ORG/
BLK
DC BRAKE LAMP GROUND
HARNESS / C /
ORANGE
AC BRAKE SIGNAL INPUT
HARNESS / D / BRN/
WHT
DC GROUND
HARNESS / F /
BROWN
AC GROUND
HARNESS / G /
YELLOW
REGULATED AC POWER
HARNESS / J / RED/
WHT
REGULATED DC MFD POWER
HARNESS / K / RED REGULATED DC BATTERY POWER
HARNESS / M /
BROWN
AC GROUND
METAL TAB GROUND PLATE
Circuit Specifications
PLUG / PIN / COLOR FUNCTION
1 / YEL/BLK AC POWER INPUT
2 / YEL/BLK AC POWER INPUT
4 / RED VDC (BATTERY CHARGE)
5 / RED/WHT VDC (REGULATED FOR MFD)
6 / ORANGE AC BRAKE SIGNAL
7 / YELLOW REGUALTED VAC
8 / YELLOW REGULATED VAC
9 / BROWN GROUND
10 / BROWN GROUND
13 / BRN/WHT DC GROUND
14 / ORG/BLK DC BRAKE LAMP GROUND (MFD)
15 / BROWN AC GROUND
16BROWN AC GROUND
