7.6
PVT System

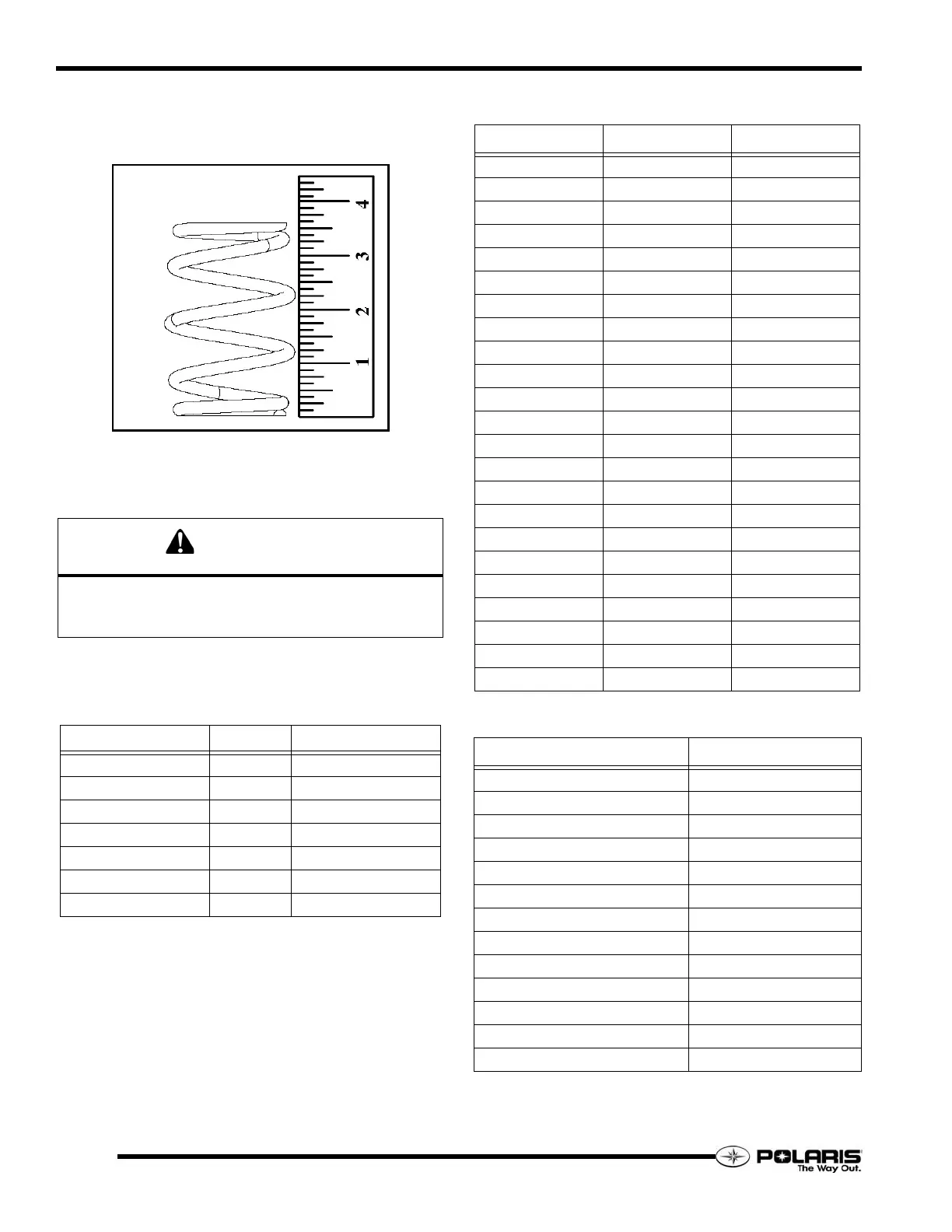

Spring Free Length
Measure the drive and driven spring free length with the spring
resting on a flat surface. Replace spring if out of specification.
In addition to proper free length, the spring coils should be
parallel to one another when placed on a flat surface. Distortion
of the spring indicates stress fatigue. Replacement is required.
Drive Clutch Weights
CAUTION
Never shim a drive clutch spring to increase its compression
rate. This may result in complete stacking of the coils and
subsequent clutch cover failure
Full Tail Weights
WEIGHT GRAMS PART NUMBER
S43H 43 1321849
S45H 45 1321850
S47H 47 1321851
S49H 49 1321730
S51H 51 1321731
S53H 53 1321759
S55H 53 1322004
10 Series Weights
WEIGHT GRAMS(+/- 1g) PART NUMBER
10M - R 44 1321530
10M - W 46 1321527
10M - B 47.5 1321529
10M - 5 48.8 1321528
10M 49.5 1321531
10A - L 51 1321531
10 51.5 1321526
10A 53 1321589
10-54 54 1321685
10-56 56 1321684
10-58 58 1321588
10-60 60 1321587
10-62 62 1321586
10-62M 61.5 1321614
10-64 64 1321585
10-64M 63.5 1321615
10-66 66 1321584
10-68 68 1322427
10-70 70 1322414
10-72 72 1322428
10-74 74 1322429
10-76 76 1322585
10-78 78 1322586
11 Series Weights
WEIGHT GRAMS(+/- .8g) PART NUMBER
11-40 1322593
11-42 1322592
11-44 1322591
11-48 1322590
11-50 1322589
11-52 1322595
11-64 1322604
11-66 1322559
11-68 1322558
11-70 1322523
11-72 1322524
11-74 1322525
11-76 1322526
