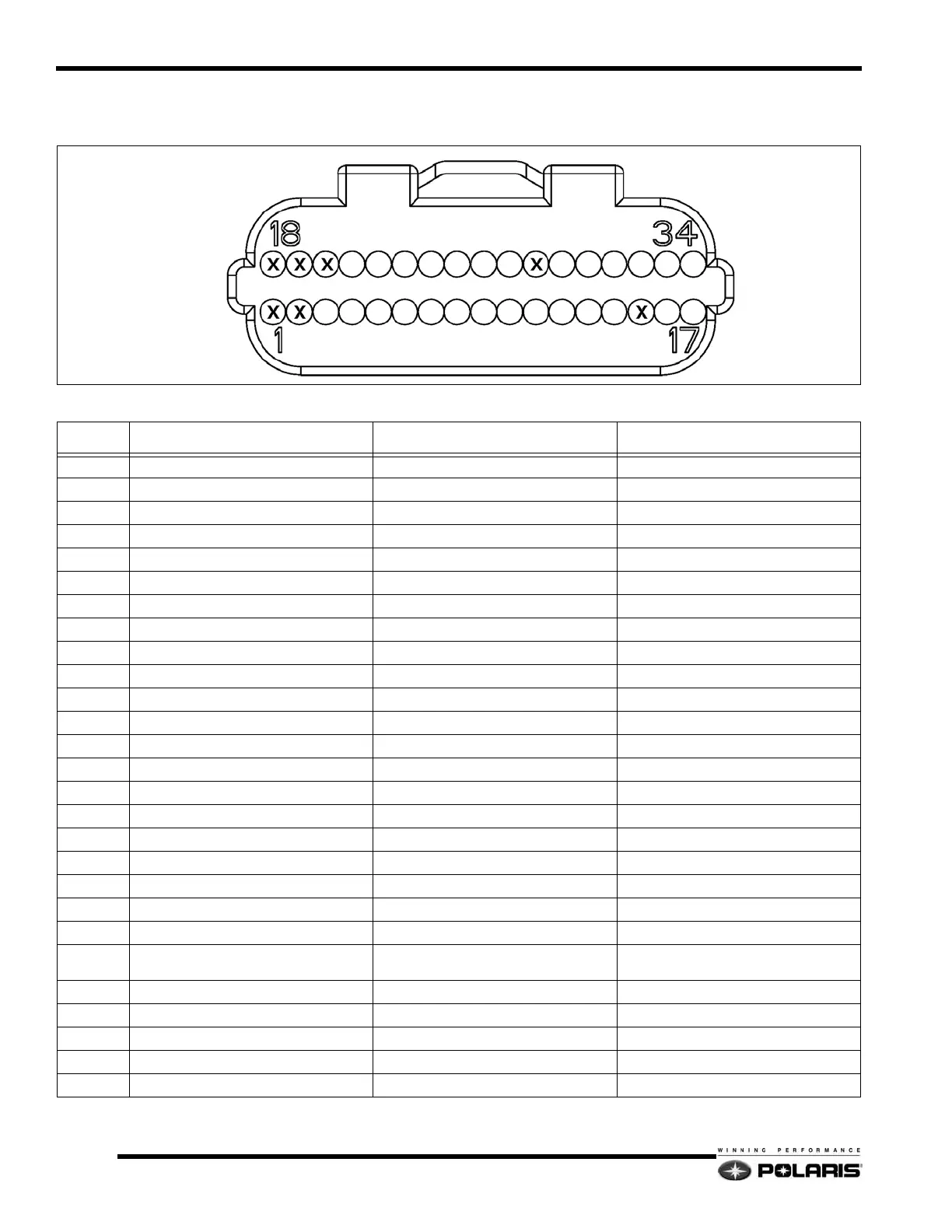

34 Pin CNA ECU Connector
NOTE: Wire Entry View
PIN COLOR GOES TO CONNECTOR FUNCTION
3 RED/BLUE SPLICE K LINE POWER
4 ORANGE ECU POWER EXTERNAL POWER
5 WHITE/BLACK EXHAUST TEMP. SENSOR SIGNAL
6BLUETBAPAIR TEMP SIGNAL
7 GREEN/BLUE IGNITION SWITCH STARTER LOCKOUT
8 RED/WHITE TBAP 5 VDC POWER SUPPLY
9 GREEN/RED GROUND SPEED SENSOR SPLICE SPEED SIGNAL
10 RED/BLACK ELECTRIC START BATTERY VOLTAGE
11 WHITE/BLUE CHASSIS RELAY COIL GROUND
12 RED/BLACK THROTTLE FLIPPER SAFETY SWITCH SOFTWARE BASED IGNITION KILL SIGNAL
13 BROWN ECU GROUND SPLICE ECU GROUND
14 RED/BLUE CHASSIS / HOOD #2 WATER TEMP. SIGNAL
16 YELLOW/RED CHASSIS / HOOD #1 TACHOMETER SIGNAL
17 ORANGE REGULATOR / RECTIFIER VOLTAGE BOOST POWER
21 PINK DIAGNOSTIC K-LINE
22 GRAY GRAY SPLICE MODE SELECT
23 WHITE CHASSIS/HOOD #1 PERC LED
24 GREEN TBAP PRESSURE SENSOR SIGNAL
25 BLUE/WHITE CHASSIS / HOOD #1 OVERHEAT / DET LED
26 ORANGE/GREEN ELECTRIC START CHARGE RELAY COIL GROUND
27 BLACK/WHITE DIAGNOSTIC SPLICE - CHASSIS / HOOD #1 DIAGNOSTICS / CHECK ENGINE LED
29 BLACK
TETHER / IGN. SWITCH / SAFETY SLAP
SWITCH
HARDWARE STOP - IGNITION KILL SIGNAL
30 BLACK/BLUE SENSOR GROUND SPLICE #1 SENSOR GROUND
31 GRAY LH CONTROL PERC SIGNAL
32 RED REGULATOR POWER SPLICE REGULATED POWER
33 ORANGE REGULATOR / RECTIFIER VOLTAGE BOOST POWER
34 ORANGE REGULATOR / RECTIFIER VOLTAGE BOOST POWER
