8.4
Steering and Suspensions
IQ Rear Suspension Shock Rod

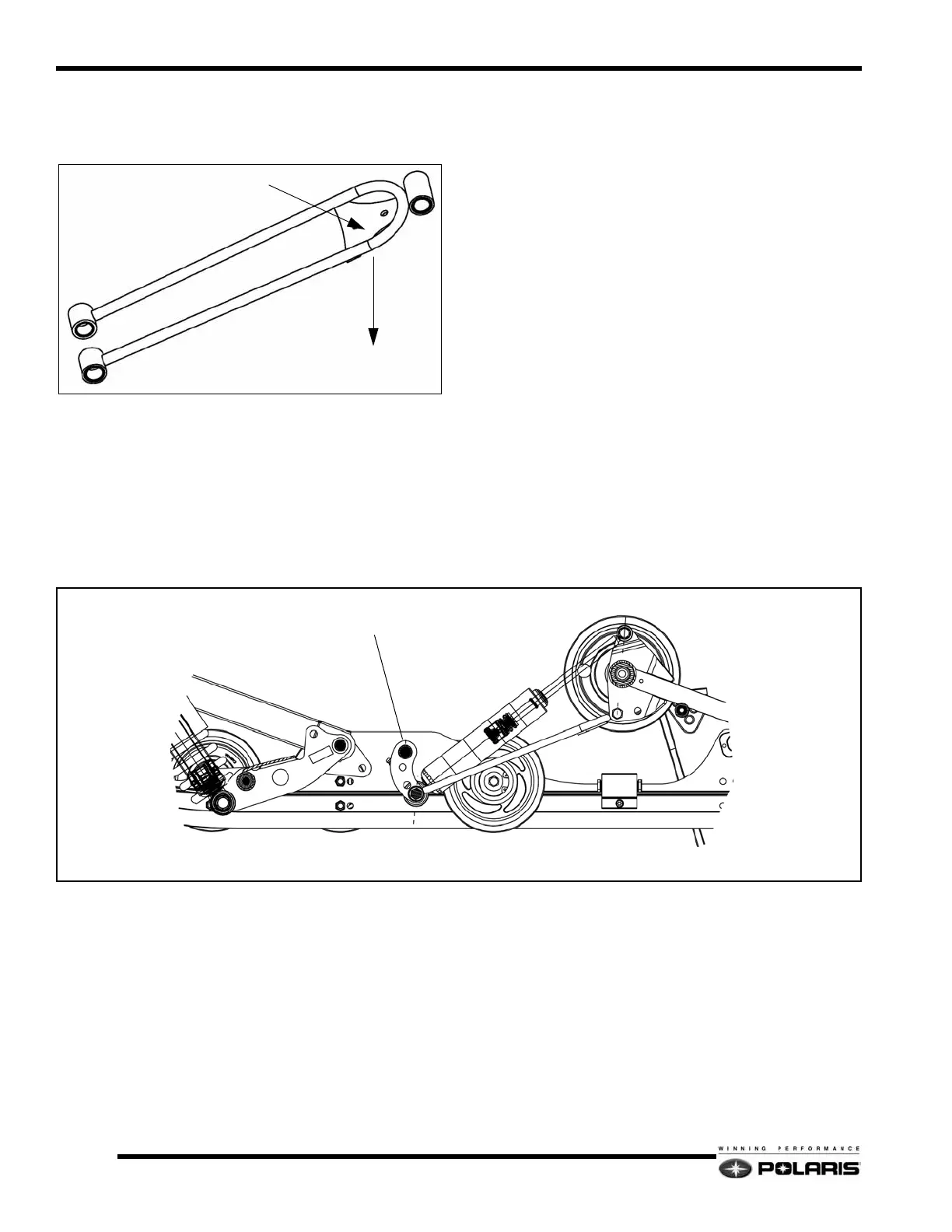

Orientate the shock rod with the reinforcement plate facing
down.
IQ Rear Track Shock Pivot Orientation
The rear track shock pivot must be properly located on all IQ
rear suspensions when installing the rear skid into the tunnel.
Failure to properly locate the rear track shock pivot may cause
the rear torque arm to lock.
All IQ rear track shock pivots, with the exception of IQ RMK
and race suspensions, must be located as shown below. On IQ
RMK and race rear suspensions, the shock pivot is orientated
upwards.
Always verify the rear torque arm scissor is pushed forward so
that it is either straight up (IQ RMK, IQ Shift) or against the
FRSS (IQ 121, IQ 136 Coupled, IQ Comfort) and not collapsed
rearward when installing the rear skid assembly.
REINFORCEMENT PLATE
DOWN
REAR TRACK SHOCK PIVOT
IQ 136 COMFORT REAR SUSPENSION
