Polaris IQ 2007 - Exhaust Systems; Assembly View (Typical)

5.48
Engine and Cooling Systems
EXHAUST SYSTEMS

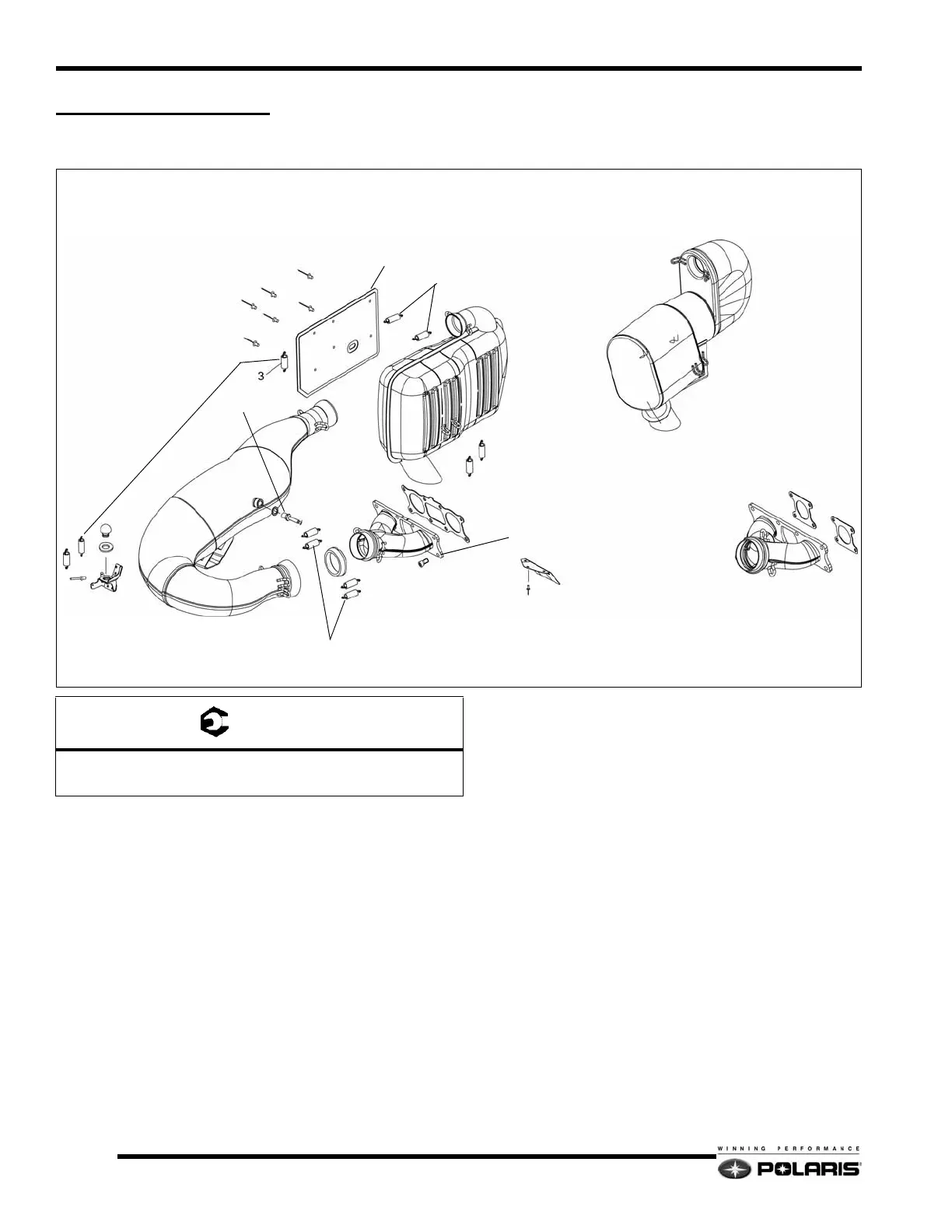

Assembly View (Typical)
NOTE: Always use the stainless steel (gray) springs
to connect the exhaust pipe to the exhaust manifold.
600 / 700 SILENCER
600 / 700 MANIFOLD
SNOW DEFLECTOR
800 SILENCER
HEAT SHIELD
EXHAUST PIPE
EGT SENSOR
ZINC-PLATED (YELLOW) SPRINGS
ZINC-PLATED (YELLOW) SPRINGS
ZINC-PLATED (YELLOW) SPRINGS
STAINLESS STEEL (GRAY) SPRINGS
GASKET
GASKETS
800 MANIFOLD
A
B
= T
A = EGT Sensor: 32 Ft.Lbs. (44 Nm)
B = Exhaust Manifold Fasteners: 22 Ft. Lbs. (30 Nm)
