Polaris IQ 2007 - 2008 800 Cfi Crankcase; Crankshaft

5.29
Engine and Cooling Systems
5

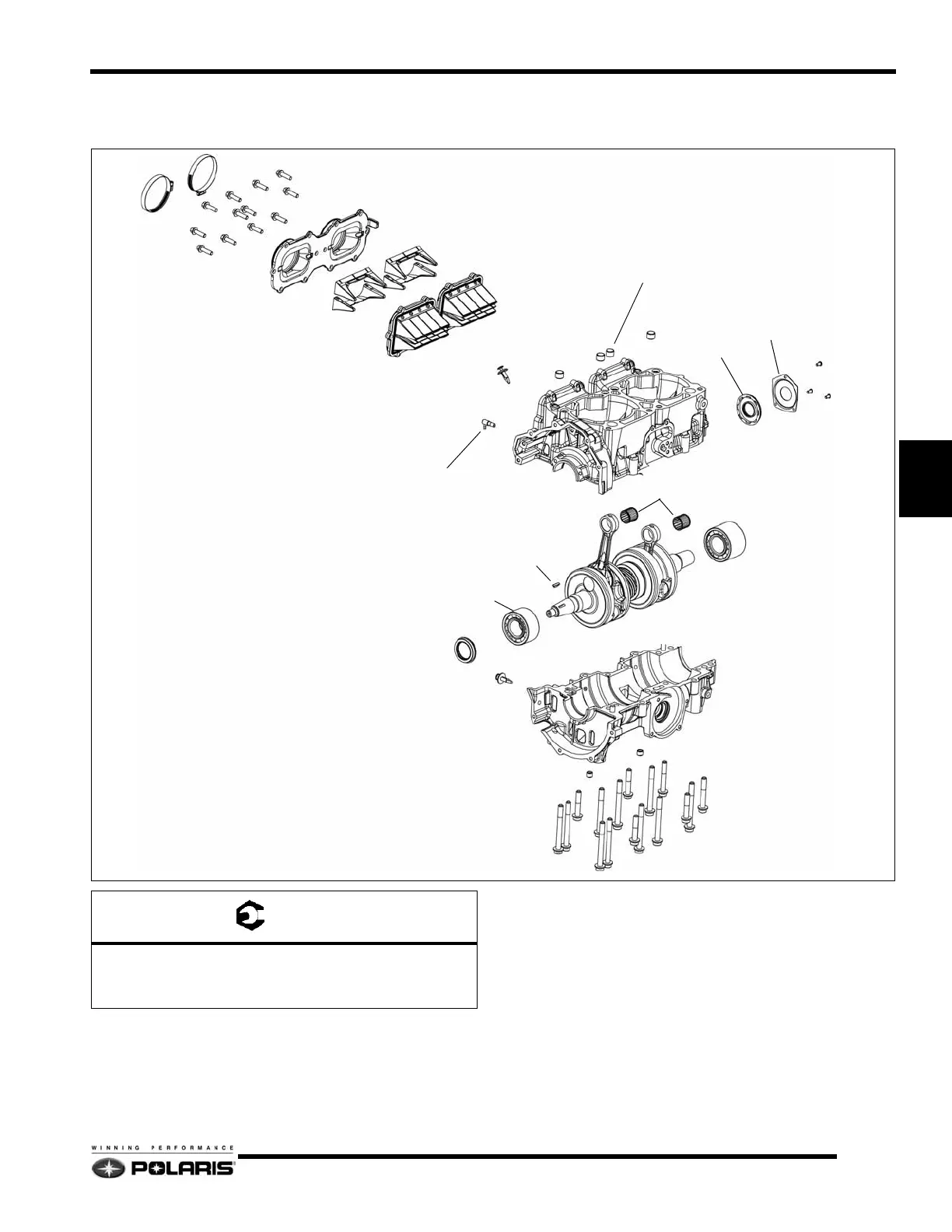

2008 800 CFI Crankcase / Crankshaft
GEAR CLAMPS
ADAPTER PLATE
REED STUFFERS
REED BLOCKS
SEAL GUARD
PTO SEAL
ALIGNMENT DOWELS
MAG SEAL
MAG BEARING
FLYWHEEL KEY
PTO BEARING
WRIST PIN BEARINGS
OIL INJECTION CHECK VALVE QTY. 5
ALIGNMENT DOWELS
A
B
C
= T
A = 9 Ft.Lbs. (12 Nm)
B = 22 Ft.Lbs. (30 Nm) - Apply Loctite 242
C = 10 Ft.Lbs. (13 Nm) - Apply Pipe Sealant
