Engine and Cooling Systems

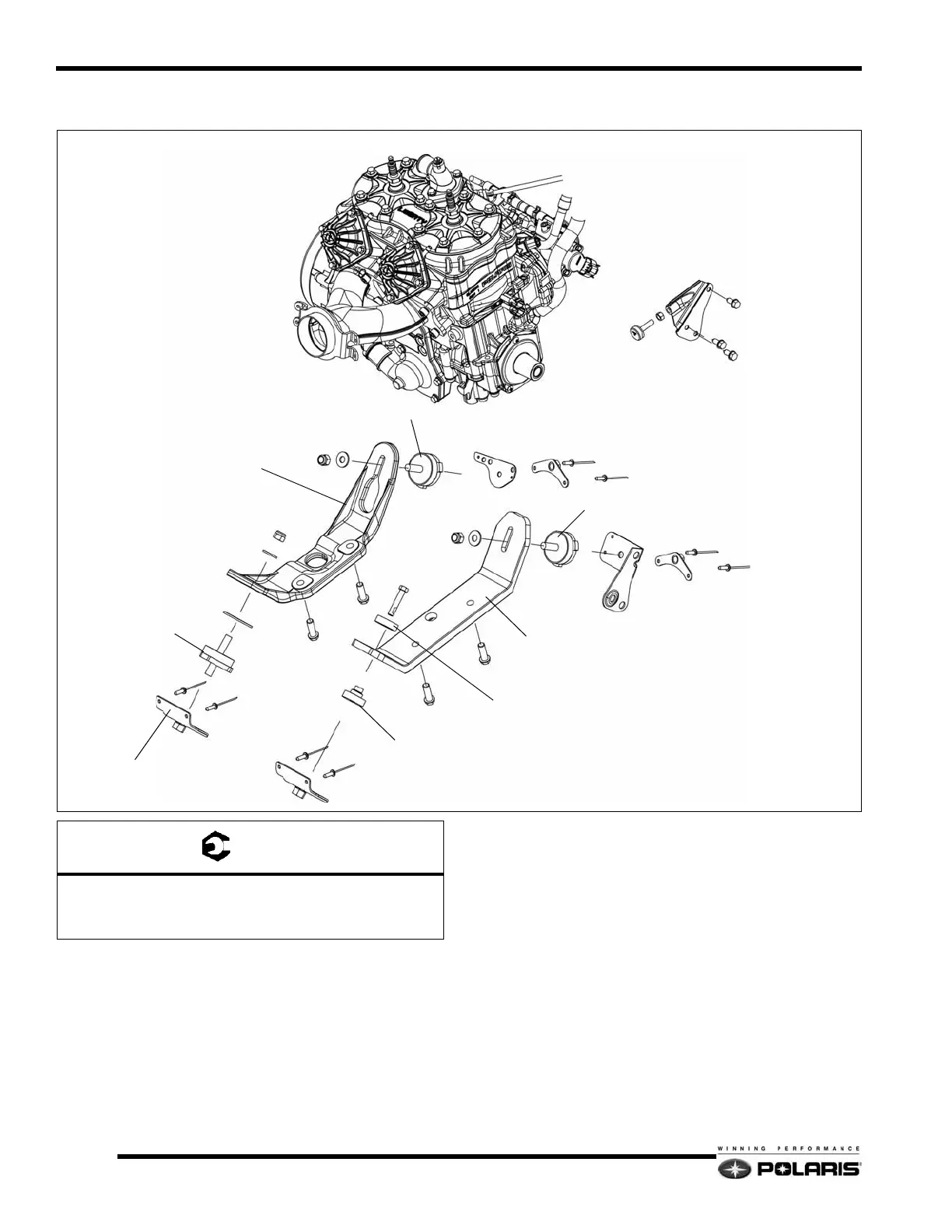

2007 700 CFI / 2008 IQ CFI Engine Mounting
NOTE: Use an engine mount socket, PN: 2871989 to
remove the engine mounts from the bulkhead.
CLINCH PLATE
ENGINE MOUNT
BOTTOM ENGINE MOUNT
ENGINE MOUNT
ENGINE MOUNT
ENGINE MOUNT BRACKET
TORQUE STOP
ENGINE ASSEMBLY
RH ENGINE STRAP
LH ENGINE STRAP
UPPER ENGINE MOUNT
A
A
A
A
A
A
C
C
C
C
B
A
= T
A = 28 Ft.Lbs. (38 Nm)
B = 15 Ft.Lbs. (20 Nm)
C = 30 Ft.Lbs. (41 Nm)
