ENGINE MOUNTING SYSTEMS

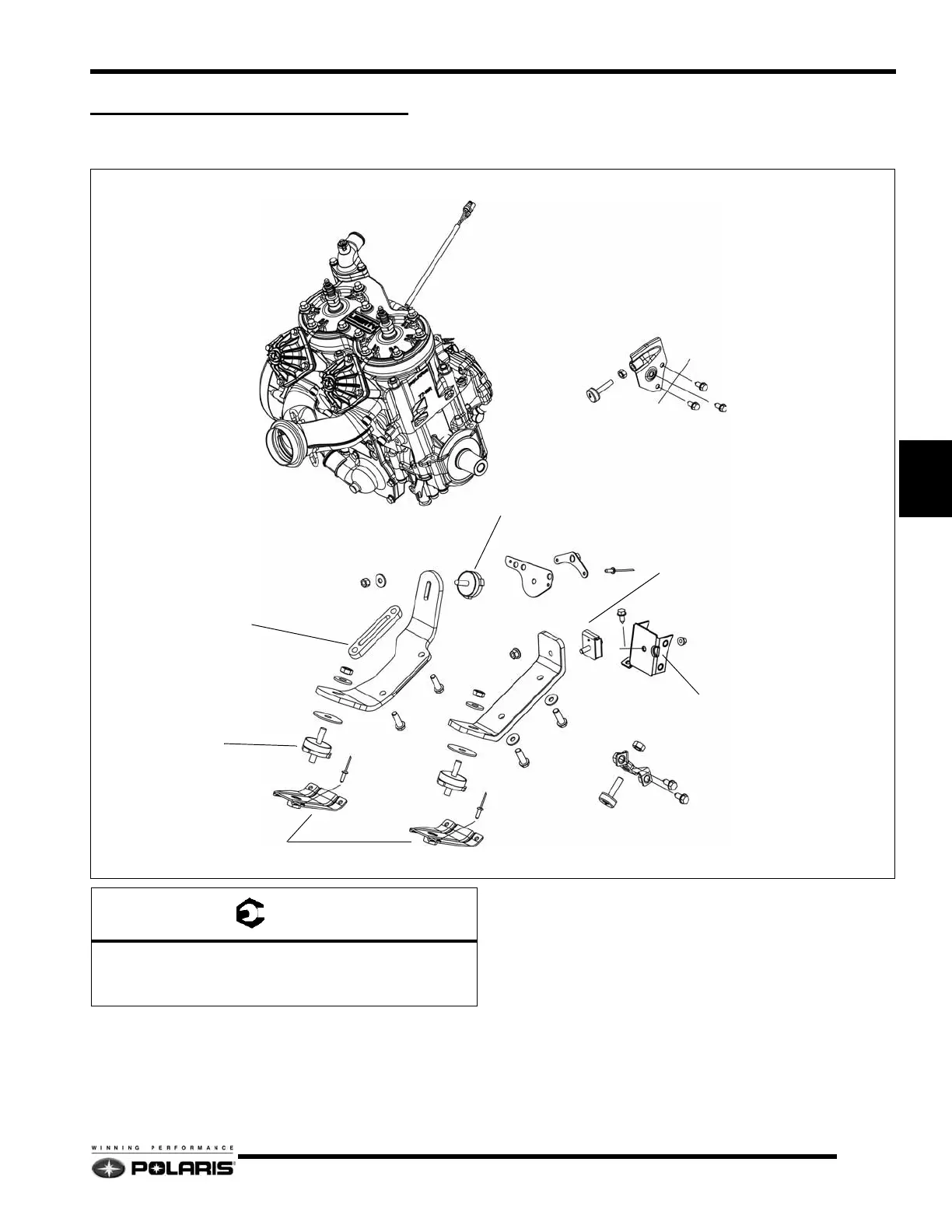

2007 IQ Carbureted Engine Mounting
NOTE: Use an engine mount socket, PN: 2871989 to
remove the engine mounts from the bulkhead.
ENGINE ASSEMBLY
TORQUE STOP
SPACER
CLINCH PLATE
ENGINE MOUNT
ISOLATOR
ENGINE MOUNT
ENGINE MOUNT
ENGINE MOUNT BRACKET
A
A
A
A
A
A
A
A
A
A
A
B
C
C
C
C
= T
A = 28 Ft.Lbs. (38 Nm)
B = 15 Ft.Lbs. (20 Nm)
C = 45 Ft.Lbs. (61 Nm)
