5.34
Engine and Cooling Systems

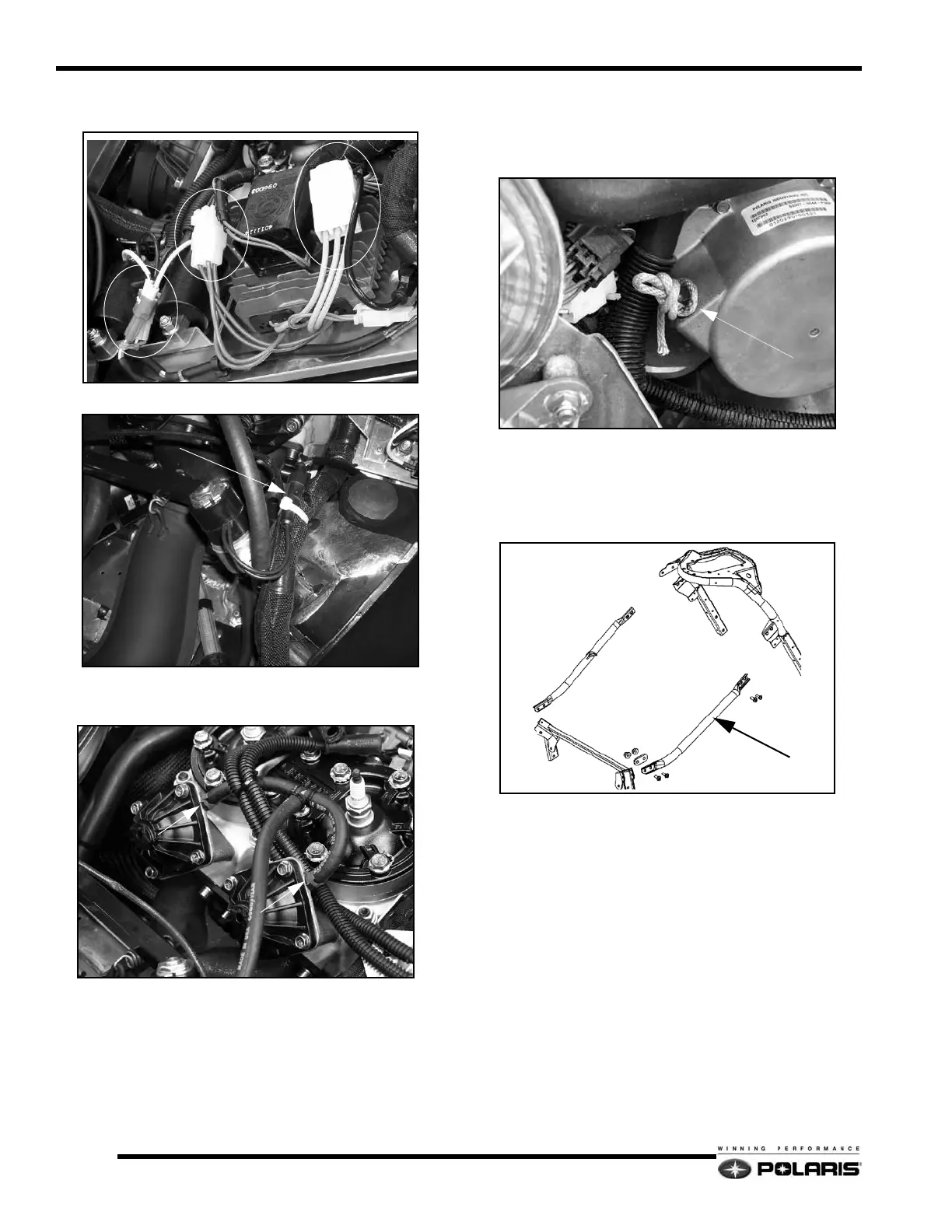

12. Disconnect the ignition coil connections and EV solenoid
from the ECU harness on CFI models.
13. Disconnect the EV solenoid from the ECU harness.
14. Disconnect the EV vent lines from the EV base and secure
the vent lines out of the way.
15. Remove the drive belt, driven and drive clutches. See
Chapter 6.
16. Remove the recoil rope from the handle and route rope
through the guide on the chassis brace and secure the recoil
rope by tying a knot so that it does not go into the recoil
housing.
17. Drain the coolant from the engine into a suitable container.
18. Remove all coolant hoses from the coolant bottle and
secure the loose hoses out of the way for engine removal.
19. Remove the four right hand chassis brace fasteners and
remove the brace from the chassis.
20. Drain the oil from oil tank.
21. Remove the oil tank fasteners that hold the top of the oil
tank to the chassis.
22. Disconnect the oil supply line from the oil tank, located at
the bottom portion of the oil tank. Plug and secure the loose
