Polaris IQ 2007 User Manual

8.14
Steering and Suspensions

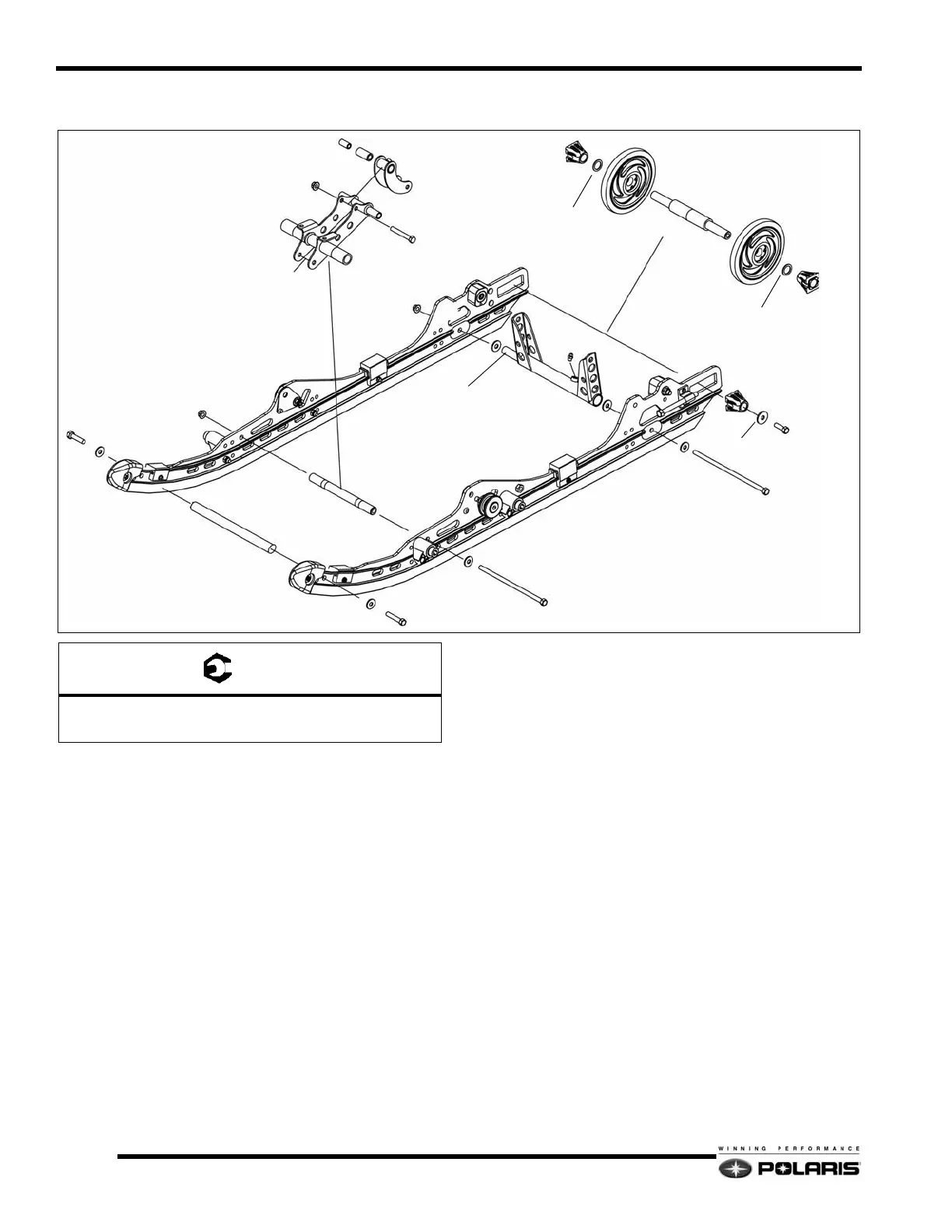

IQ 121 Shift Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
H BRACKET
SHOCK PIVOT
SHAFT
SHAFT
REAR PIVOT ARM
IDLER WHEEL
IDLER WHEEL
WASHER
SPACER
A
A
B
B
B
B
B
WASHER
SPACER
SPACER
WASHER
INNER SHAFT
IDLER SHAFT
= T
A = 45 Ft.Lb. (61 Nm)
B = 35 Ft.Lb. (47 Nm)
