8.16
Steering and Suspensions

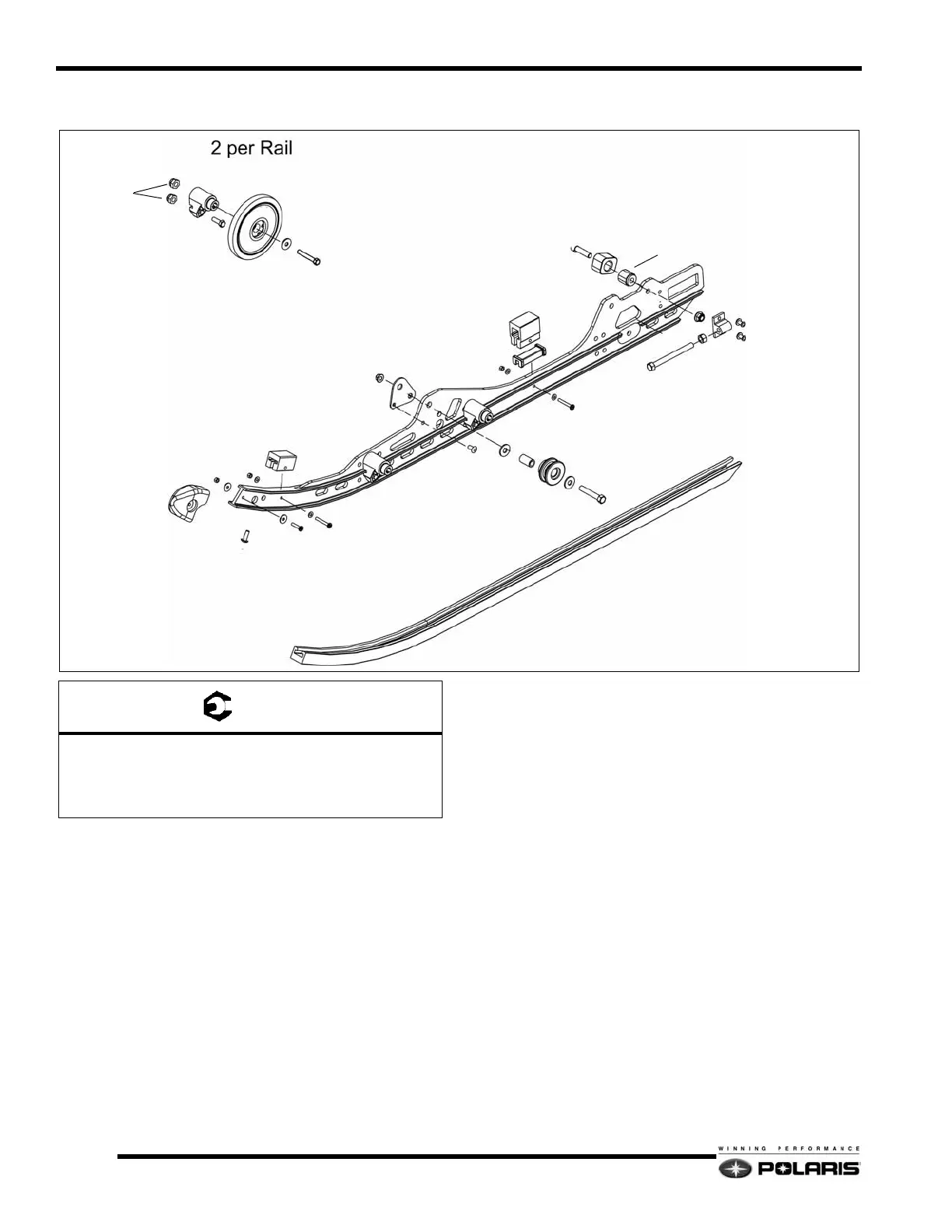

IQ 121 Shift Rail Assembly
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
RAIL SLIDER
BOGIE WHEEL (X)
(X)
(X)
RAIL CAP
BUMPER
BUMPER
RRSS
SPRING ROLLER
IDLER BOLT ADJUSTER
WHEEL MOUNT
CAM
A
B
C
C
B
D
D
= T
A = 3 - 6 Ft.Lb. (4 - 8 Nm)
B = 19 Ft.Lb. (26 Nm)
C = 35 Ft.Lb. (47 Nm)
D = 35 In.Lb. (4 Nm)
