6.26
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
16. Torque the locking screw to specification.
TORQUE
Snorkel Locking Screw:
8 ft-lbs (11 Nm)
Transmission Assembly
NOTE
The snorkel shaft and pinion shaft must be installed
prior to transmission assembly. The snorkel shaft
cannot be installed after assembling the transmission.
17. Clean both transmission case halves thoroughly.
Inspect case half mating surfaces for damage.

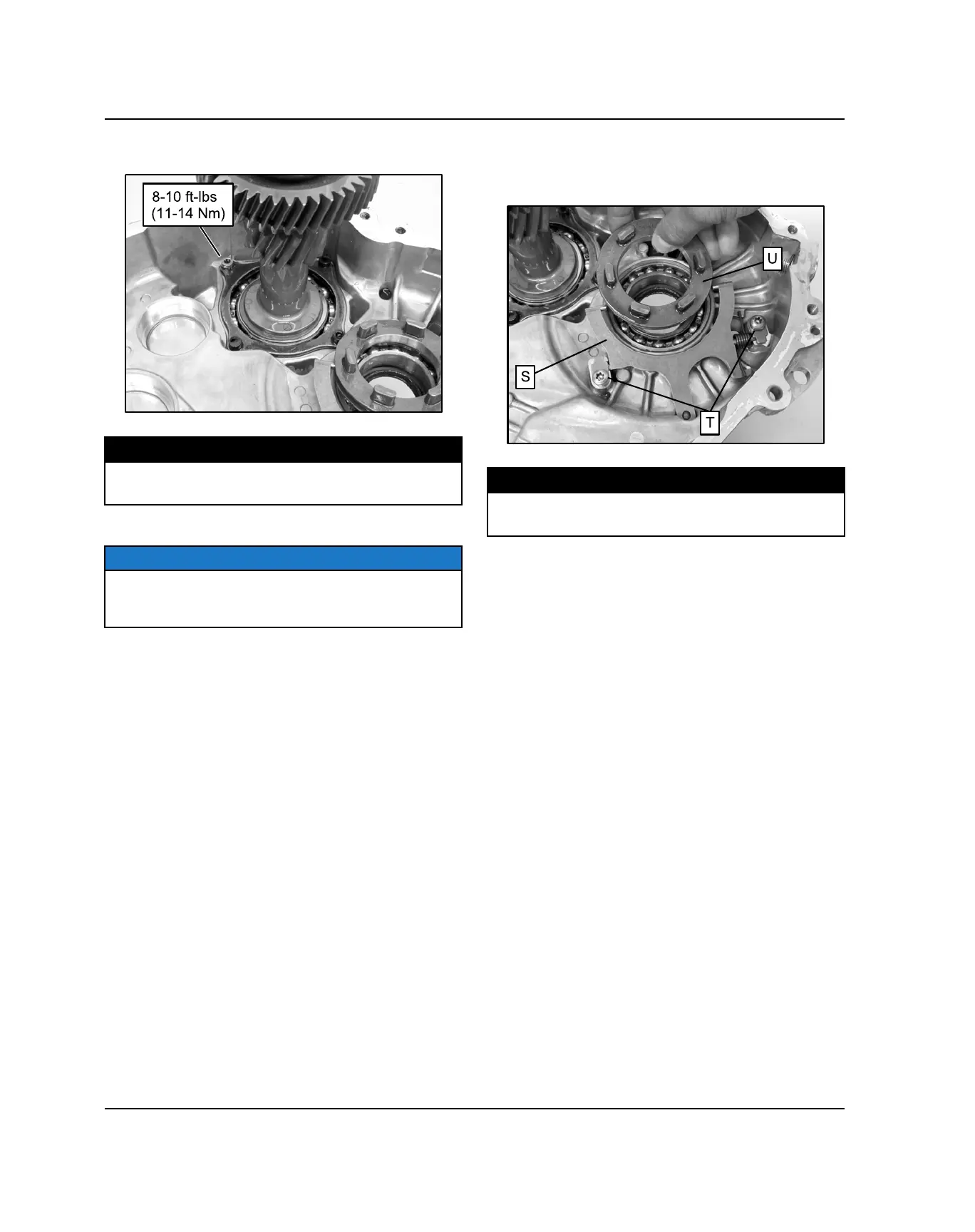

18. Install shift fork (S) and torsion spring into
transmission housing as an assembly. Load spring
as shown in image below
19. Apply Loctite
®
242™ to two screws (T) and install
with retaining plates over shift fork. Torque to
specification.
TORQUE
Shift Fork Screws:
10 ft-lbs (14 Nm)
20. Slide engagement dog (U) onto retaining pins of shift
fork.
TRANSMISSION
