6
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
6.27

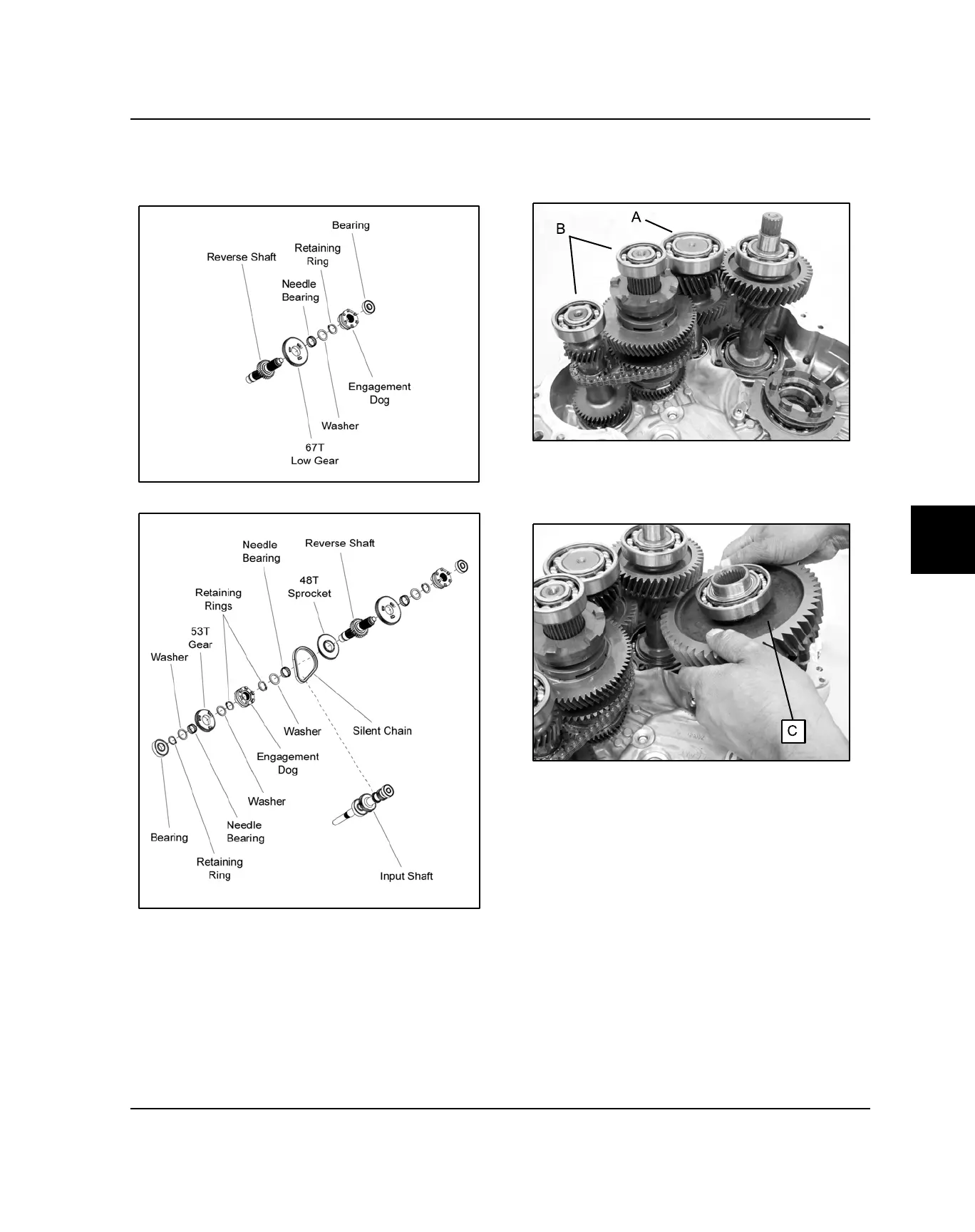

21. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
22. Install the idler gear shaft assembly (A) and gear
cluster assembly (B) into the transmission housing,
all at the same time.
23. Install the rear output shaft assembly (C). Rotate
output shaft assembly to align slots with engagement
dog. Ensure bearing is fully seated upon assembly.
TRANSMISSION
